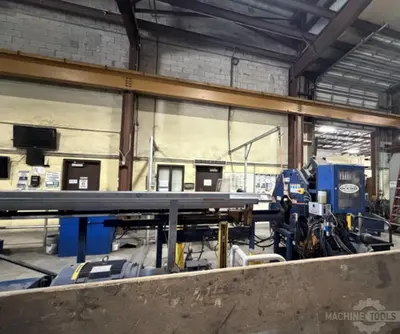

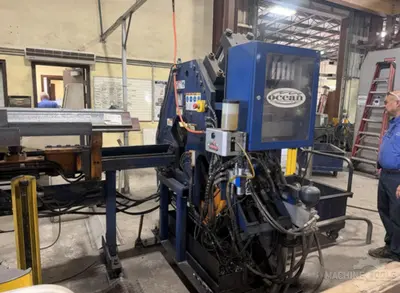

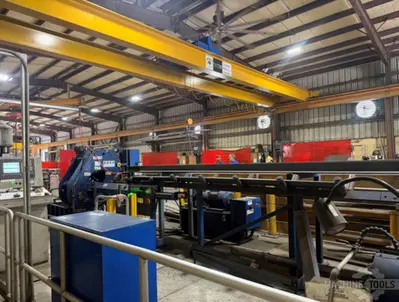

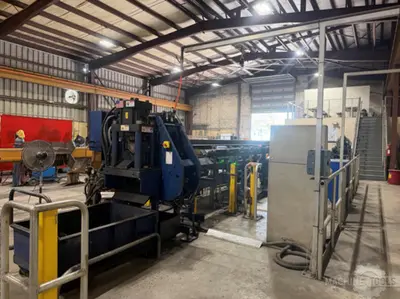

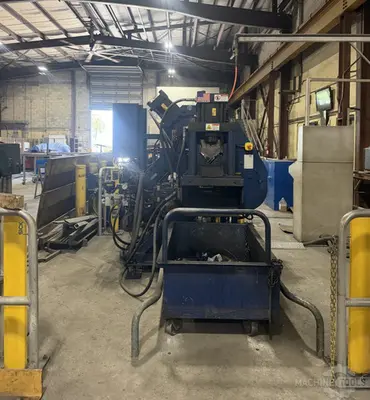

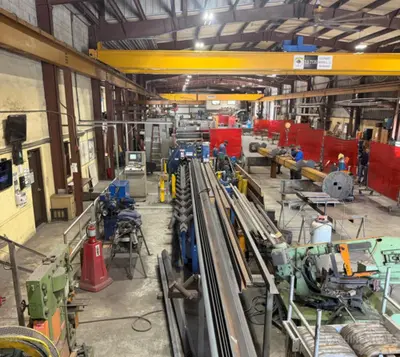

USED 2015 OCEAN CLIPPER

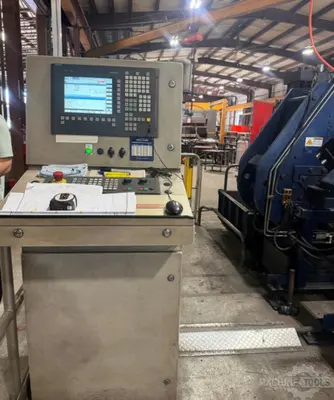

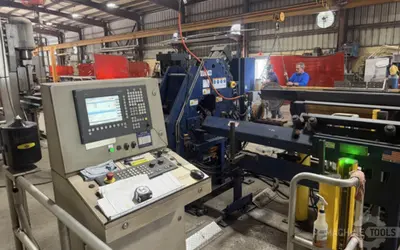

6” X 6” X ⅝” Angle Line Punching and Shearing Line with Siemens 840Di Numerical Control, 20’ Infeed Idler Roller Conveyor, Hydraulic Punch, Hydraulic Drill, Hydraulic Shear, Angle Sensor System, Angle and Flat Bar Processing.GENERAL SPECIFICATIONS Angle SizesMax. Angle Size:            6” X 6” X ⅝”Min. Angle Size:            1-½” X 1-½” X ⅛”Drill One LegMin. Hole Diameter:            5/16”Max. Hole Diameter:        1-9/16”Min. Drill Gauge:            0.5”Max. Drill Gauge:            5.5”Drill Feed Rate:            2” - 10” / Min
Punch One LegPunch Tonnage:            75 Tons USMax. Punch Size:            1-¼” Diameter - #272  PunchPunch Cycle Time:            2 SecondsMinimum Gauges:            11/16” Plus Leg Thickness for 1-½” X 1-½” Thru 2” X 2” 1-3/16” Plus Leg Thickness 2 - ½” X 2 - ½” Angle Thru 2” X 2” 1-¼” Plus Leg Thickness for Over 2” X 2” Thickness Thru 6” X 6”
ShearShear Tonnage:            100 Tons USMinimum Drop:            8.125”Shear Cycle Time:            5 SecondsSlug Size:                ½”MeasurementIn-Feed Speed (X - Axis):        61 FPMMax. “X” Direction Stroke:        50”Y - Axis Travel:            12”Z - Axis Travel:            5”General Machine Pass Line:            45”Power Requirements:        460V / 40 Amps / 33KVAShop Air:                90 - 100 PSIFoundation:                6” INCLUDES: Siemens 840Di Numerical Control, 20’ Infeed Idler Roller Conveyor, Hydraulic Punch, Hydraulic Drill, Hydraulic Shear, Angle Sensor System, Angle and Flat Bar Processing.
