USED STEDMAN FC 2215 HAMMER MILL

Manufacturer
Stedman Machine Company
Description

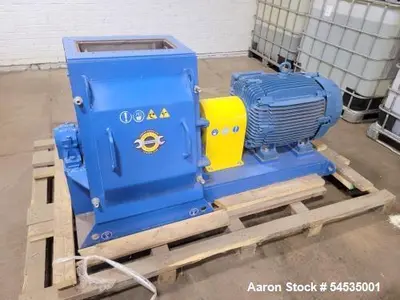

Available for sale is an unused Stedman Machine Company Full-Circle Air-Swept Hammer Mill, Model FC 2215, designed for efficient fine grinding, particle size reduction, and material processing across a wide range of industrial applications. Manufactured in 2021, this high-performance hammer mill incorporates Stedman's full-circle screen design, maximizing throughput while minimizing over-grinding.
The FC 2215 features a 22-inch diameter x 15-inch wide rotor housing and utilizes 360-degree screen coverage around the rotor, providing a large active escape area for properly sized material. This design improves efficiency, increases production capacity, and reduces unnecessary particle degradation. A built-in turbulence channel at the bottom of the rotor promotes effective air flow and material movement through the grinding chamber.

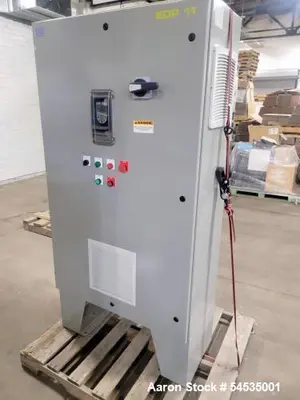

The machine is equipped with a specialized housing design allowing quick and direct access to internal sizing screens for simplified maintenance and reduced downtime. Fully reversible operation helps extend wear life and maximize equipment utilization. The unit is powered by a 75 HP motor and includes a low-voltage WEG control panel.

Specifications

Specification
Details

Manufacturer
Stedman Machine Company

Model
FC 2215

Equipment Type
Full-Circle Air-Swept Hammer Mill

Condition
Unused

Rotor Housing Diameter
22 Inches

Rotor Housing Width
15 Inches

Screen Coverage
360 Degrees

Operation
Fully Reversible

Motor Size
75 HP

Electrical
3 Phase / 60 Hz / 460 Volt

Motor Speed
3,600 RPM

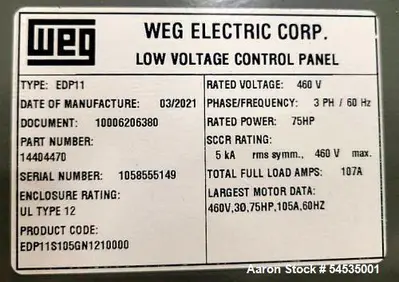

Control Panel
WEG Low Voltage Control Panel

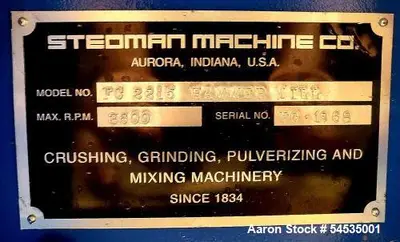

Serial Number
FC1968

Year Built
2021

Key Features

Full-circle air-swept grinding design
360-degree screen coverage
Maximized active escape area
Reduced over-grinding
Increased production efficiency
Built-in turbulence channel
Quick-change screen access
Fully reversible rotor operation
Heavy-duty industrial construction
Low-voltage WEG control panel included

Applications

Mineral processing
Agricultural products grinding
Biomass processing
Chemical processing
Industrial powders production
Recycling operations
Feed ingredient grinding
Fertilizer processing
Limestone grinding
Industrial size reduction

Common Products Processed

Limestone
Gypsum
Agricultural products
Biomass materials
Coal
Fertilizers
Industrial minerals
Chemical powders
Recycled materials
Various dry bulk solids

Frequently Asked Questions
Q: What is the rotor housing size?

The hammer mill features a 22-inch diameter x 15-inch wide rotor housing.

Q: What is the advantage of full-circle screen coverage?

The 360-degree screen design increases active discharge area, improves throughput, and helps reduce over-grinding.

Q: Is the mill reversible?

Yes, the FC 2215 features fully reversible operation, helping extend hammer and wear component life.

Q: What motor is included?

The unit is driven by a 75 HP, 460 Volt, 3 Phase, 3,600 RPM motor.

Q: Does the mill include controls?

Yes, a low-voltage WEG control panel is included.

Q: Can Aaron Equipment assist with shipping and logistics?

Yes, Aaron Equipment can assist with freight coordination, rigging services, export documentation, transportation planning, and worldwide logistics support.
