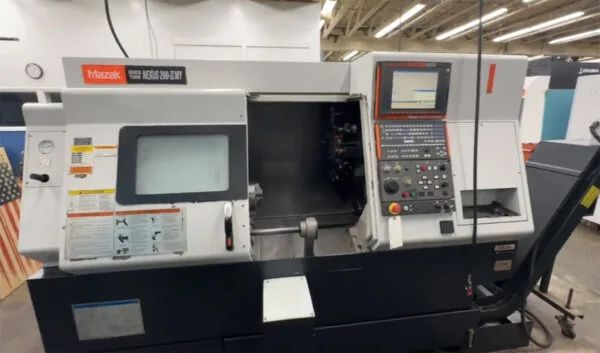

MAZAK QTN-200MY-II / QTN200MY2 / QTN-200MY-II
Mazak QT Nexus 200MY-II
Chuck Size: 8″
Maximum Swing: 675 mm (26.50″)
Standard Machining Diameter: 276 mm (10.87″)
Bar Work Capacity: 65 mm (2.50″)
Distance Between Spindle End and Turret End Face: 135 to 710 mm (5.357 to 28.107″)
Spindle Speed: 35 – 5000 Min⁻¹ (rpm)
Spindle Nose: A2-6
Bore: 76 mm (3.00″)
Motor Output [Half-Hourly Rating]: 26.0 kw (35 hp)
Maximum Torque: 47.4 kgf·m (343 ft·lbs)
Indexing Time: 0.2/0.6 sec
Milling Spindle Speed: 25 – 4500 Min⁻¹ (rpm)
Milling Motor Output [10-min. Rating]: 5.5 kw (7.5 hp)
Maximum Torque of Milling Spindle: 3.6 kgf·m (26.0 ft·lbs)
Tailstock Center Bore: MT 5
Travel [Tailstock]: 550 mm (21.75″)
Maximum Thrust: 700 kgf (1544 lbs)
Rapid Traverse (X/Y/Z): 30/21/33 m/min (1181/826/1299 ipm)
Rapid Traverse (C): 555 Min⁻¹ (rpm)
Travel (X): 230 [225 + 5] mm (9 [8.875 + 0.125] in.)
Travel (Y): 100 [50 + 50] mm (4 [2 + 2] in.)
Travel (Z): 575 [570 + 5] mm (22.75 [22.5 + 0.25] in.)
Machine Weight: 12500 lbs
Equipped With
Mazatrol Matrix Nexus CNC Control
Live Tooling
Royal Products CNC Collet Chuck
SMW Autoblok NCSE 210-52 Quick-Jaw-Change 3-Jaw Power Chuck
Programmable Tailstock
Side-Exit Chip Conveyor
Tool Eye (Automatic Tool Presetter)
Accumulated Time
Power On: 39901
Auto Ope.: 15664
Auto Cut.: 10757
Total Cut.: 9485
Total Time: 39901
