USED BURGMASTER 1D
Overview

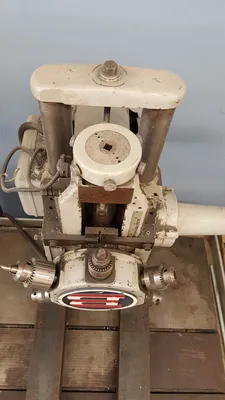

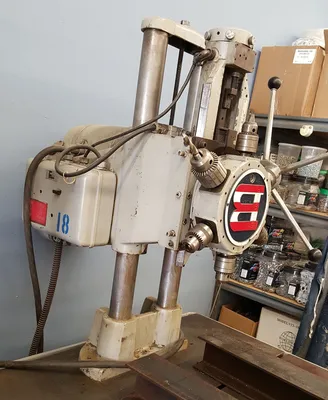

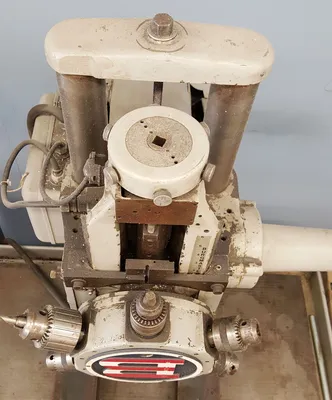

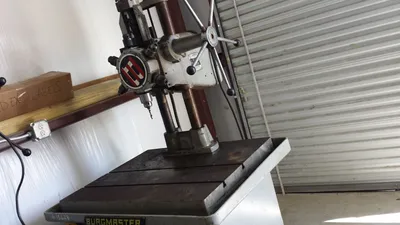

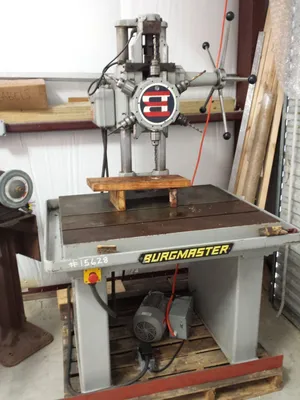

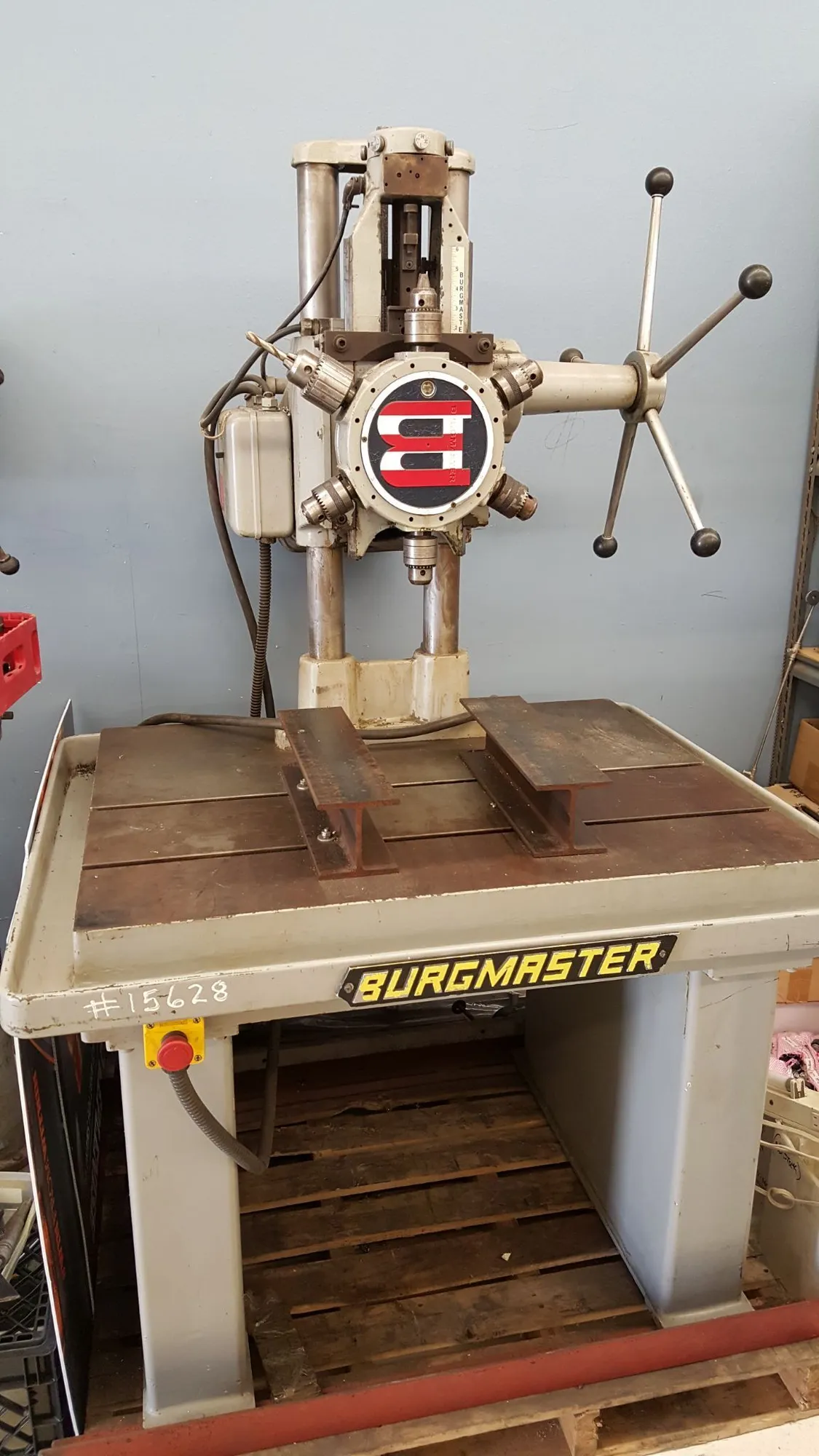

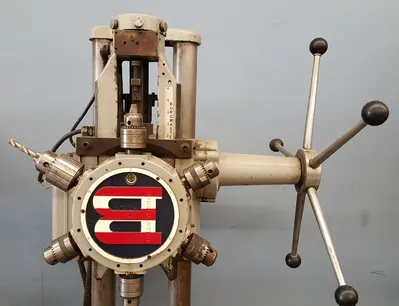

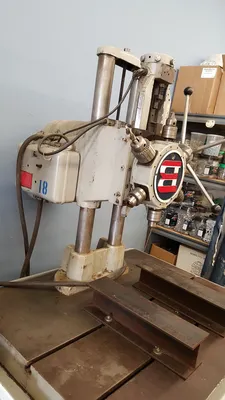

Burgmaster 6 Station Spindle Turret Drilling and Tapping Machine 1D Excellent condition, sparingly used
Maximum drilling Capacity: 1/2" Mild Steel, 5/8" in Cast Iron
Column Diameter: (2) 2-1/2"
Maximum Chuck to Base Clearance 21"
Maximum Feed Length: 6"
Center of Spindle to Column: 8-1/2"
Bed Working Surface: 39"L-R x 23" F-B
Spindle Speed 1 & 4 675 RPM to 4010 RPM
Spindle Speed 2 & 5 430 RPM to 2550 RPM
Spindle Speed 3 & 6 275 RPM to 1630 RPM
Motor: 1HP, 2 Speed 3450/1750 RPM
Equiped with: Power indexing six-Spindle Turret
Overall Dimensions: 45" L-R x 44" F-B x 68" High
Approx Weight: 800 LBS
Location: Brookshire, TX 77423
Specs
Burgmaster 6 Station Spindle Turret Drilling and Tapping Machine 1D Excellent condition sparingly used
Maximum drilling Capacity: 1/2" Mild Steel, 5/8" in Cast Iron
Column Diameter: (2) 2-1/2"
Maximum Chuck to Base Clearance 21"
Maximum Feed Length: 6"
Center of Spindle to Column: 8-1/2"
Bed Working Surface: 39"L-R x 23" F-B
Spindle Speed 1 & 4 675 RPM to 4010 RPM
Spindle Speed 2 & 5 430 RPM to 2550 RPM
Spindle Speed 3 & 6 275 RPM to 1630 RPM
Motor: 1HP, 2 Speed 3450/1750 RPM
Equiped with: Power indexing six-Spindle Turret
Overall Dimensions: 45" L-R x 44" F-B x 68" High
Approx Weight: 800 LBS
