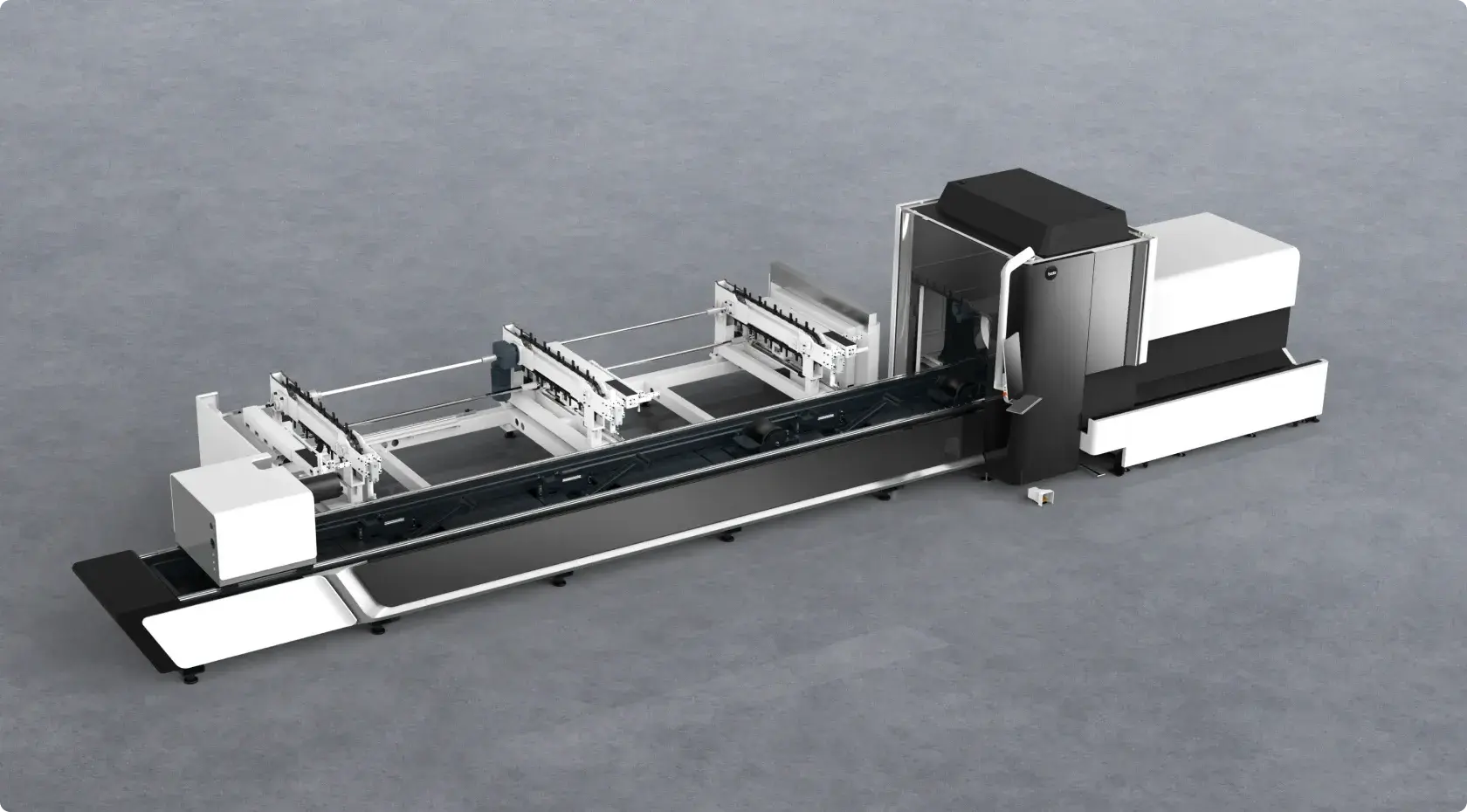

NEW BODOR T-Loader
Overview
Smart Alarms
With material shortage alarms and mid-cycle loading, the T-Loader ensures continuous loading, maintaining processing continuity.
Smaller Footprint
Compared to the previous generation, the overall module size of the T-Loader is reduced by 30%, saving space.
Higher Load Capacity
The T-Loader ensures a maximum loading weight of 1.2 tons for the robotic arm, with a maximum storage load of 4.8 tons.
Low Failure Rate
Driven by double chains, the operation of the T-Loader is simple and the failure rate is lower.
Wider Loading Size Range
T-Loader supports full-range loading for round tubes (Φ25-Φ340mm) and square tubes (□25-□340mm).
Higher Loading Success Rate
T-Loader can guarantee a 100% success rate for loading.
Specs
Compatible Models T3-92
Station Quantity 11（Φ≤90），6(Φ＞90)
Loading Tube Types Round tubes、square tubes、rectangular tubes
Tube Size Range
Round tubes Φ20-Φ220mm
Square tubes □20 - □220mm
Rectangular tubes 220mm≥Side Length≥20mm
Max. Tube Weight 600kg
Max. Storage Capacity 3600kg
