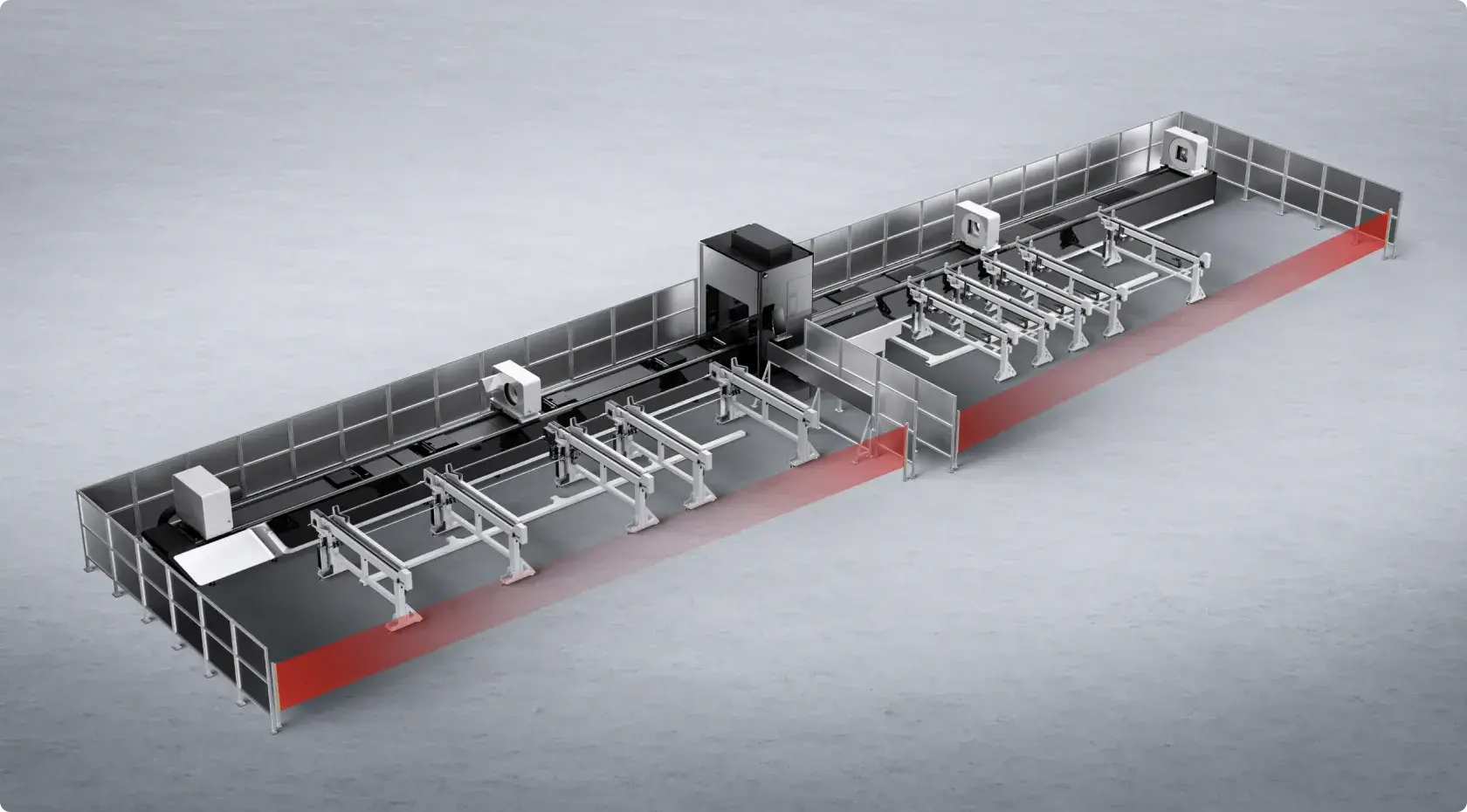

NEW BODOR M-Loader
Overview
Smaller Footprint
Compared to the previous generation, the overall module size of the M-Loader is reduced by 30%, saving space.
Smart Alarms
With material shortage alarms and mid-cycle loading, the M-Loader ensures continuous loading, maintaining processing continuity.
Higher Load Capacity
The M-Loader ensures a maximum loading weight of 1.2 tons for the robotic arm, with a maximum storage load of 4.8 tons
Low Failure Rate
Driven by double chains, the operation of the M-Loader is simple and the failure rate is lower.
Wider Loading Size Range
The M-Loader supports full-range loading for round tubes (Φ25-Φ340mm) and square tubes (□25-□340mm).
Higher Loading Success Rate
The M-Loader can guarantee a 100% success rate for loading.
Specs
Compatible Models M5-120-120
Station Quantity 3
Loading Tube Types Round tubes、square tubes、rectangular tubes、Angle Steel、channel steel、I-beams
Tube Size Range
Round tubes Φ80-Φ500mm
Square tubes □80 - □500mm
Rectangular tubes 340mm≥Side Length≥25mm
Angle Steel 8#-40#
Channel steel 8#-40#
I-beams 10#-40#
Max. Tube Weight 2000Kg
Max. Storage Capacity 6000Kg
