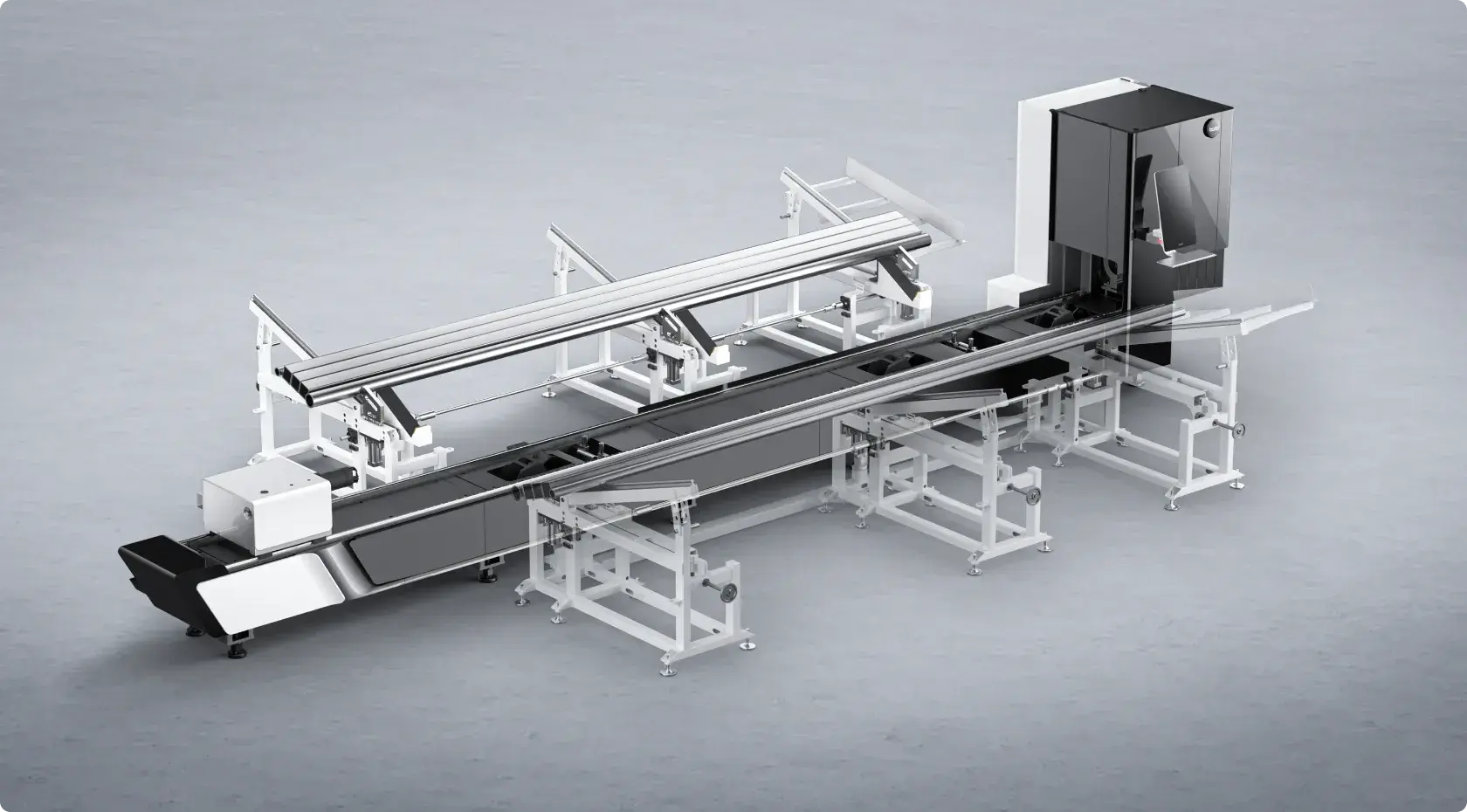

NEW BODOR K-Trans
Overview
Higher Material Compatibility
The K-Trans supports automatic cyclic loading for tube dimensions from Φ16mm to Φ120mm and square tubes from □20mm to □120mm.
Higher Load Capacity
Equipped with belt-type material storage, the K-Trans increases load capacity to 1500 kg, reducing material refilling operations by half.
More Flexible Layout
The K-Trans can be lifted and positioned on either side of the main machine with flexible configuration options, including compatibility with mirrored K1 main units.
Further Simplified Operation
Equipped with the BodorThinker control system, the K-Trans eliminates the need for “one person to control two machines.”
Less Clamping Failure
Equipped with centering rollers for tube alignment, the K-Trans ensures precise loading and improves the chuck’s clamping success rate.
Lower Energy Consumption
All material handling processes—preparation, loading and unloading—are cylinder-driven for faster action and reduced electricity costs.
Specs
Compatible Models K2-65
Station Quantity Storage-Style Station
Loading Tube Types Square tube, round tube, rectangular tube, elliptical tube, etc.
Tube Size Range
Round tubes Φ16-Φ110mm
Square tubes □20-□110mm
Max. Tube Weight 80kg
Max. Storage Capacity 1500kg
