NEW BODOR iLoader eco4
Overview
Efficient Sheet Processing

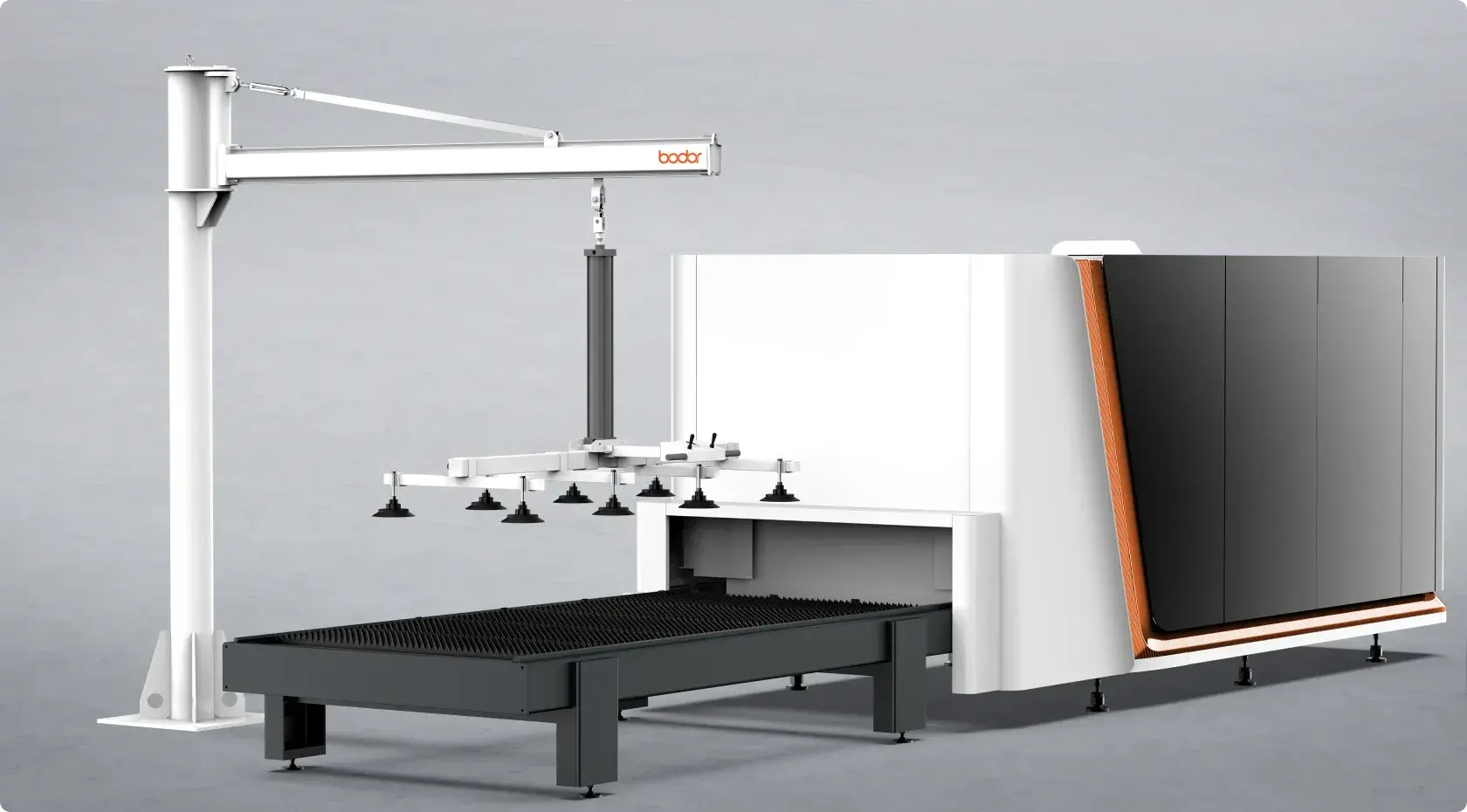

iLoader eco is an auxiliary loading device of sheets up to 8mm, boosting sheet processing efficiency.
Load for Two
One device can load materials for two cutting machines simultaneously.
Max. Space Utilization
iLoader eco takes up minimal floor space, maximizing the use of production space.
Flexible Positioning
iLoader eco can be positioned left or right according to the on-site processing environment.
Specs
Loading Dimensions 1000mm*1000mm/4000mm*2000mm
Overall Dimensions 4055mm*2310mm*3461mm
Max. Loading Sheet Size 4000mm*2000mm
Min. Loading Sheet Size 1000mm*1000mm
Max. Sheet Thickness 4.5mm
Min. Sheet Thickness 1mm
Machine Weight 490kg
Max. Loading Weight 300Kg
