USED 2011 Milltronics ML18/60

Arizona, United States
482Listings|196Followers
Overview
CNC Lathes

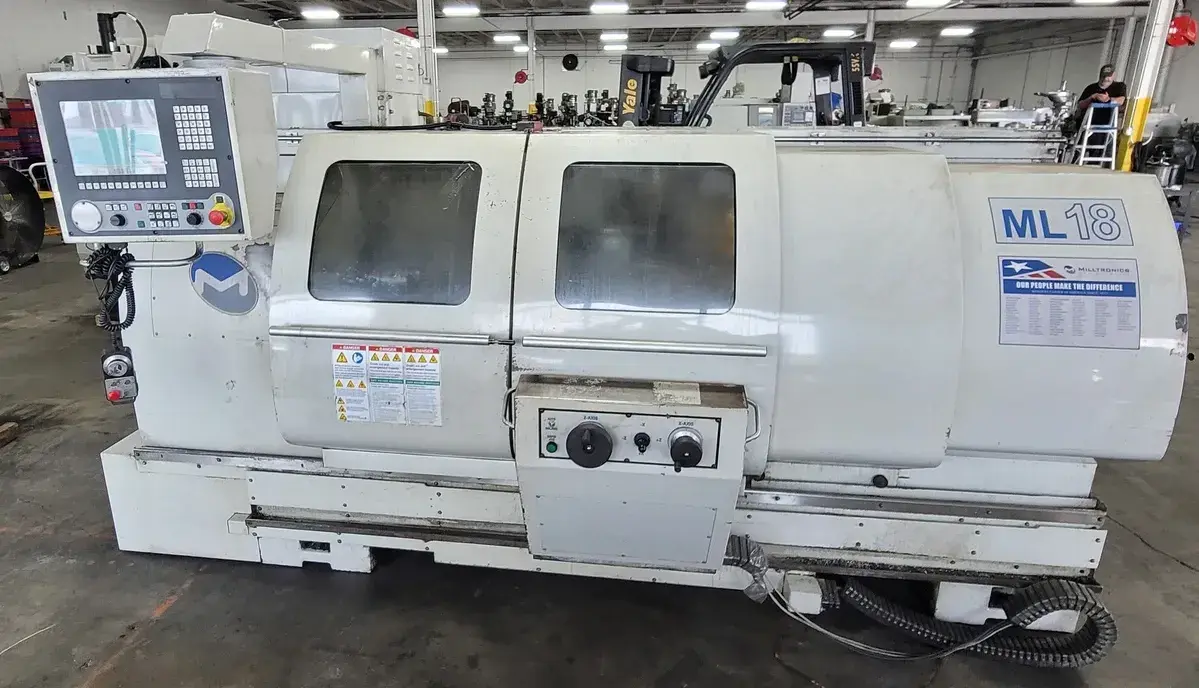

MILLTRONICS ML18 Series D CNC Turning Center w/8 Station Turret, New in 2011.

Specs
Swing
19"
482.6 mm
Machining Length
60"
1,524 mm
# Axis
2
2
Chuck Size
10"
254 mm
Bar Capacity
1.25"
31.75 mm
Power
24 hp
17.9 kW
Max RPM
2,600 RPM
2,600 RPM
Tailstock
Yes
Yes
Sub Spindle
No
No
Control
CNC
CNC
Dimensions
138" x 72" x 80"
138" x 72" x 80"
Weight
85000lbs
85000lbs

General Specifications:
19" Swing
12" X Axis
63.5" Z Axis
8 Tool Changer Automatic Turret
10" 6 Jaw Chuck
27.9" Swing Over Gap
12.75 Gap Distance
D1-6 Spindle Nose
2.56" Spindle Bore
100-2600 RPM Spindle Range
24/15 HP (18/11 kW) AC Spindle Motor
255 ft-lbs (345 N.m Spindle Torque
220V 3 Phase 50/60Hz
MILLTRONICS 7200 CNC CONTROL
Card Reader
Network Cable to load and save programs on a network
