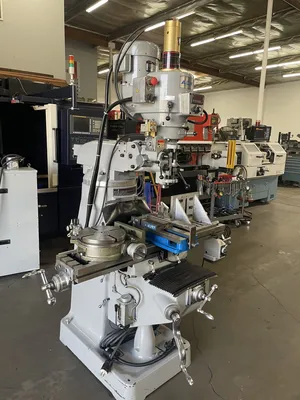

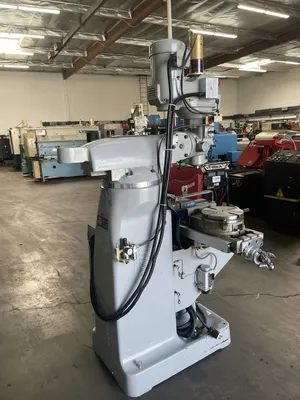

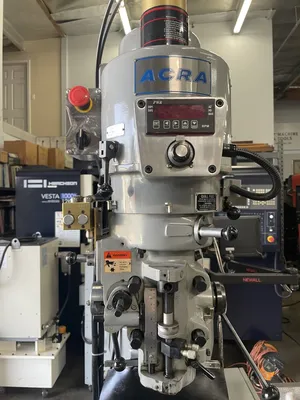

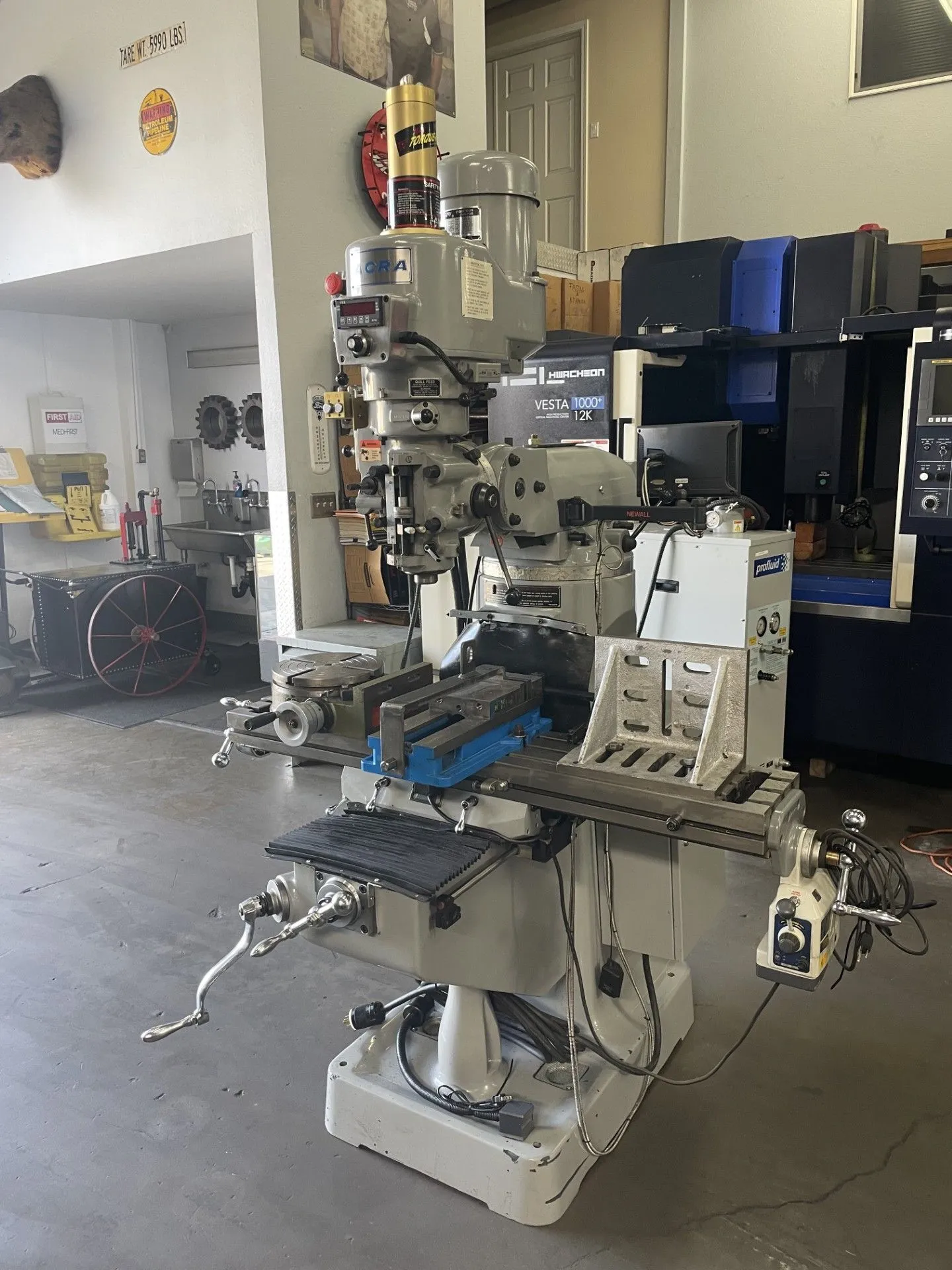

USED 2013 ACRA LCM-50
Overview
Description
2013 ACRA LCM-50 Vertical Mill, 9" x 50" table, R8 spindle, variable speed 60-4500 RPM, 3 HP, 220v, 3ph motor. Includes Newall 2-axis DRO, Align X-axis power feed, 12-piece R8 collet set, 6" mill vise, clamping kit, one-shot lube. Used condition. 2,500 lbs.
Specifications
| Table-W | 9" | 228.6 mm |
|---|---|---|
| Table-L | 50" | 1,270 mm |
| Travel-Long | 37" | 939.8 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | R8 | R8 |
| Weight | 2500 | 2500 |
2013 ACRA LCM-50 Vertical Mill #8242 #1
Specifications:
Table Size...............9" x 50"
Travels:
X........................37"
Y........................12"
Z........................5"
Spindle Nose.............R8
Spindle Speeds...........60 - 4500 RPM (Variable - Frequency Drive)
Main Motor...............3 HP, 220v, 3ph
Weight...................2,500 lbs
Equipped With:
Newall DP 700 2-Axis Digital Read Out
Digital Frequency Drive
Power Draw Bar
X-Axis Power Feed
6" Kurt Mill Vise
Variable Speed Head
One Shot Lube
