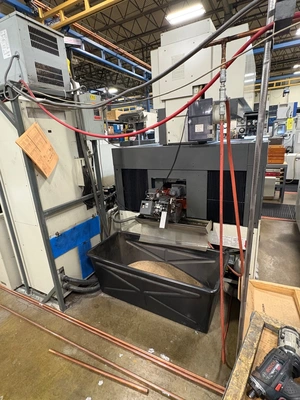

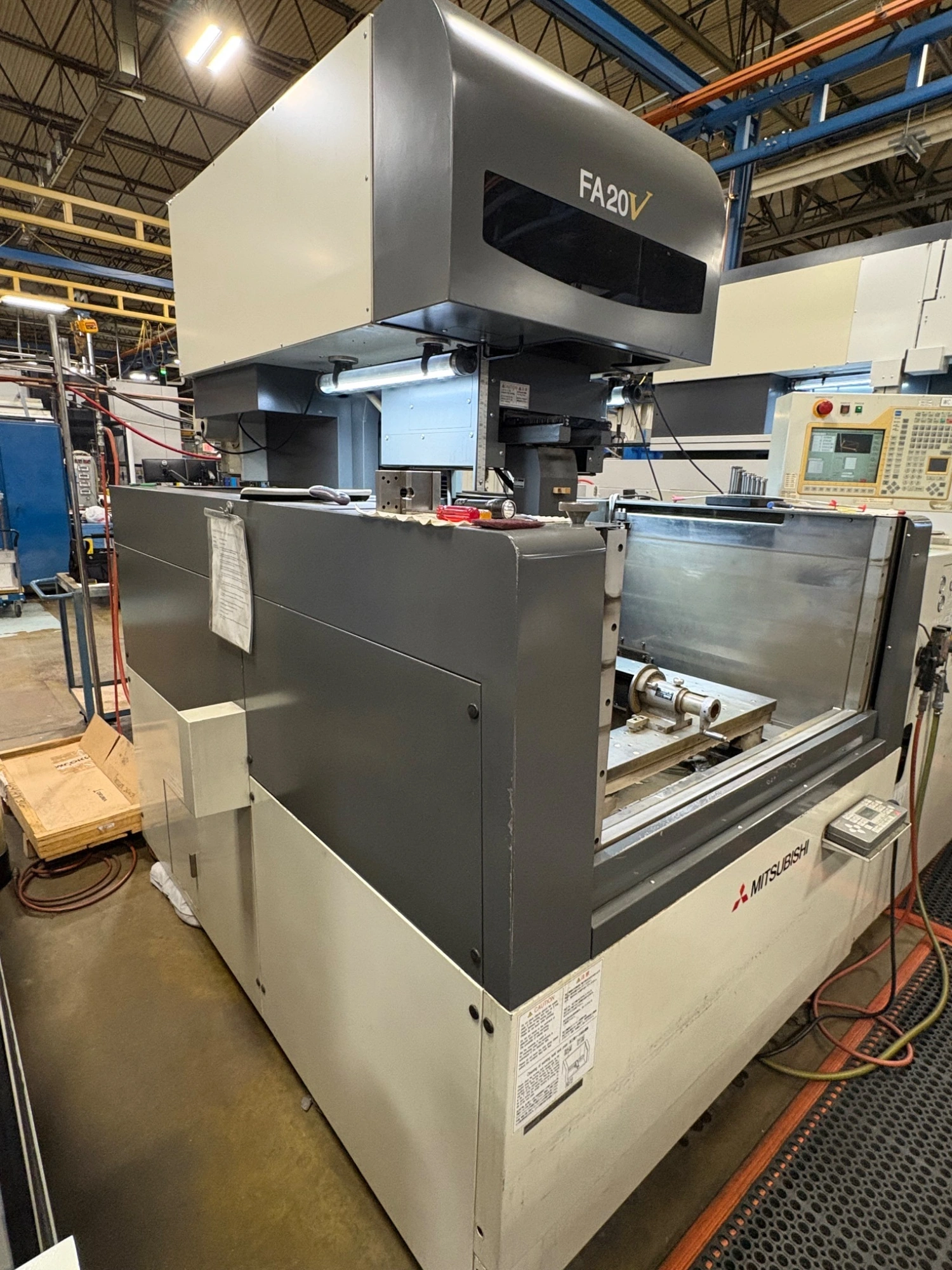

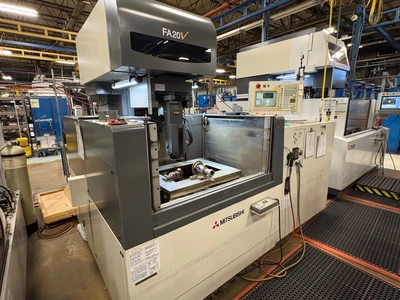

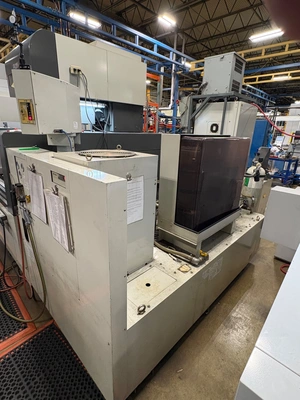

USED 2005 MITSUBISHI EDM FA20V

Mitsubishi FA20V Electrical Discharge Machine EDM (2005)

Capacity & Travels
X-Axis Travel: 13.8 inches (350 mm)
Y-Axis Travel: 19.7 inches (500 mm)
Z-Axis Travel: 17.9 inches (455 mm)
U x V Travel: ± 3.0 inches (± 76.2 mm)
Max. Workpiece Dimensions: 41.3" × 31.5" × 17.9"
Max. Workpiece Weight: 3,300 lbs (1,500 kg)
Table & Tank Specs
Table Size: 30.7" × 24.8"
Work Tank Dimensions: 42" × 32" × 18"
Taper Capacity: Up to ± 30 degrees
Wire System
Wire Diameter Capability: 0.006" to 0.012"
Max. Wire Spool Size: Up to 44 lbs
Physical Footprint & Power
Electrical Requirements: 200-220V / 3 Phase / 60Hz
System Dimensions: 102" L x 109" W x 91" H'
Machine Weight: Approx. 9,546 lbs
