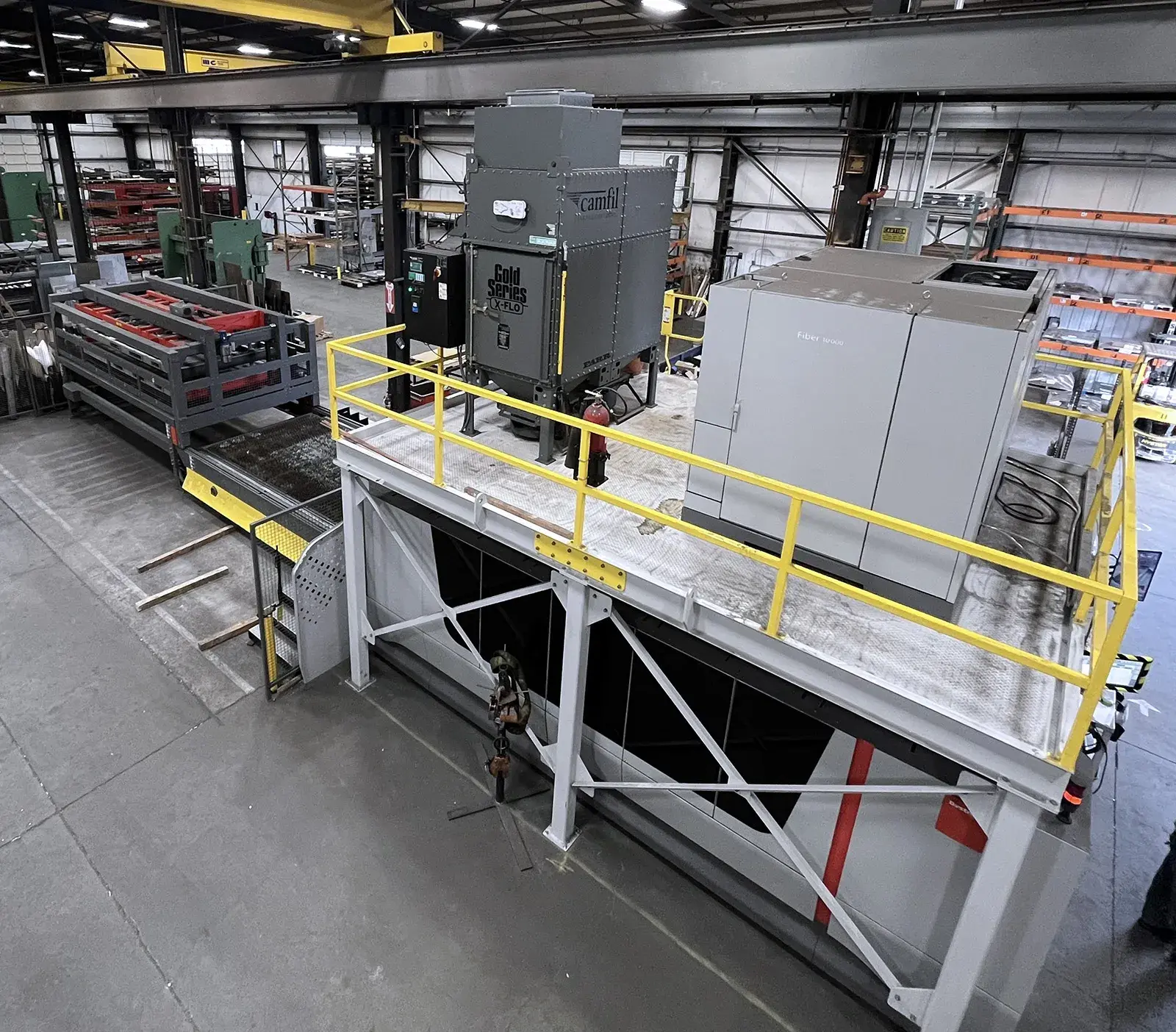

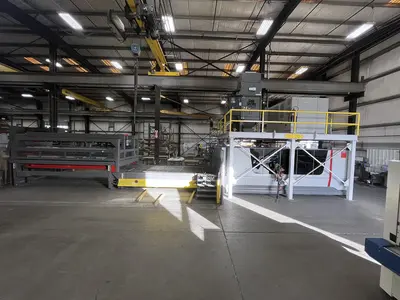

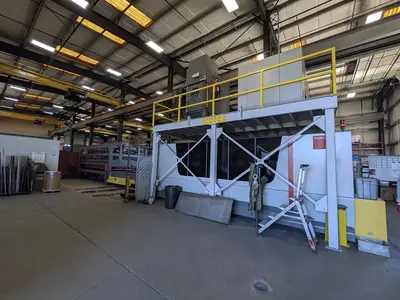

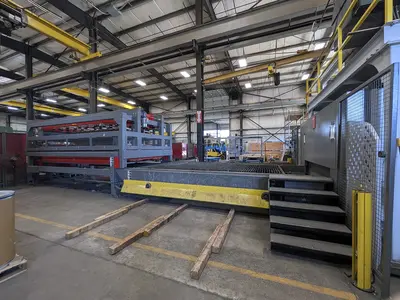

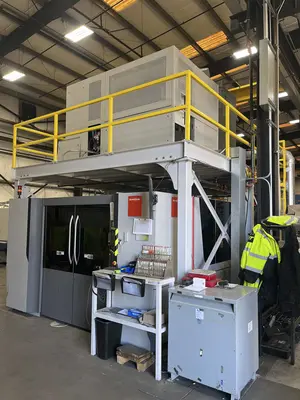

USED 2021 BYSTRONIC BYSMART FIBER 4020

2021, low hours| 10 kW| Automation
The Bystronic BySmart 10 kW Fiber Laser 4020 (2021) with automation is a high-performance industrial cutting system for large-format sheet metal processing. It delivers fast, precise cutting of steel, stainless steel, aluminum, copper, and brass, from thick structural plates to fine components, making it ideal for high-volume manufacturing, fabrication, and advanced metal production environments.

Working Area: 13.1' x 6.6'
Laser Source Power: 10 kW
Wavelength: 1060-1080 nm
Model: ByTrans 4020 Extended
Age: 2021
Function: Automatic Sheet loading/unloading
Mild Steel: 1" (25 mm)
Stainless Steel: 1.5" (40 mm)
Aluminum: 1.25" (30 mm)
Brass: 0.63" (16 mm)
Cooper: 0.5" (12 mm)
Sheet Capacity: 157" x 79" (4000 x 2000 mm)
Max Sheet Weight: 3300 lbs (1500 kg)
Max Load Height (ByTrans): Approximately 10-12" stack
Maximum Positioning Speed: Up to 5,500 IPM
Table Change Time: Approx. 27 Seconds
Z Axis Travel: 3.9"
Simultaneous Positioning Speed: Up to 554 in/min (140 m/min)
Axis Acceleration: Up to 1.5 G
Positioning Accuracy: ±0.004" (±0.1 mm)
Repeatability: ±0.0016" (±0.04 mm)
Source Type: Fiber Laser
Power: 10000 Watts
Efficiency: ~40–50% wall-plug efficiency
Cooling: Integrated chiller

ByTrans Extended 4020 Automation Package
Camfil Gold Series X-FLO
Automatic Nozzle Changer
Shuttle Table System
Automatic Loading System
Automatic Unloading System
Lights-Out Capability
