NEW 2026 FACCIN 4HEL/P-3134

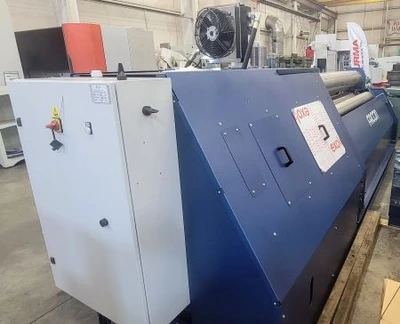

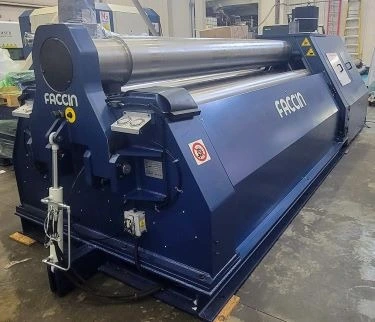

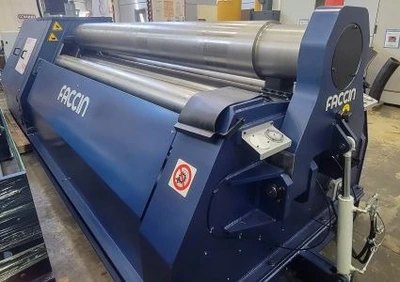

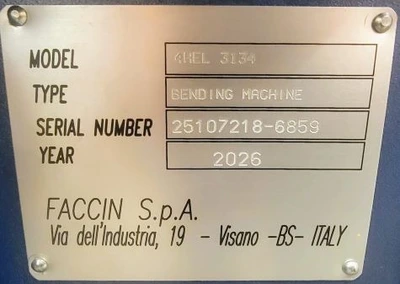

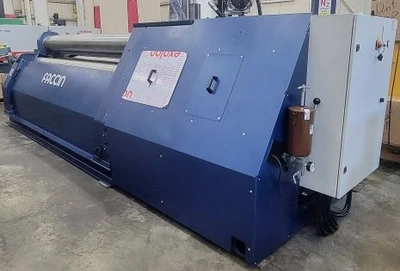

FACCIN (NEW) MODEL 4HEL/P-3134 4-ROLL BENDING ROLL

CAPACITY
- 120" PLATE WIDTH
- 13.39" TOP ROLL DIAMETER
- 12.6" LOWER ROLL DIAMETER
- 9.65" SIDE ROLLS DIAMETER
- 221 TON BENDING FORCE ON TOP ROLL
- 26 FPM INFINITELY VARIABLE ROTATION SPEED

FULL-LENGTH CAPACITY AT 37.7 KSI
- 0.63" BENDING THICKNESS WITH 67" INSIDE DIA.
- 0.51" PRE-BEND THICKNESS WITH 67" INSIDE DIA.
- 0.43" BENDING THICKNESS WITH 17.5" INSIDE DIA.
- 0.39" PRE-BEND THICKNESS WITH 17.5" INSIDE DIA.

HALF-LENGTH CAPACITY AT 37.7 KSI
- .79" BENDING THICKNESS WITH 67" INSIDE DIA.
- .67" PRE-BEND THICKNESS WITH 67" INSIDE DIA.

FULL-LENGTH CAPACITY AT 52.2 KSI
- 0.55" BENDING THICKNESS WITH 67" INSIDE DIA.
- 0.43" PRE-BEND THICKNESS WITH 67" INSIDE DIA.
- 0.37" BENDING THICKNESS WITH 17.5" INSIDE DIA.
- 0.32" PRE-BEND THICKNESS WITH 17.5" INSIDE DIA.

HALF-LENGTH CAPACITY AT 52.2 KSI
- 0.71" BENDING THICKNESS WITH 67" INSIDE DIA.
- 0.55" PRE-BEND THICKNESS WITH 67" INSIDE DIA.

STANDARD EQUIPMENT
- HARDENED AND POLISHED ROLLS

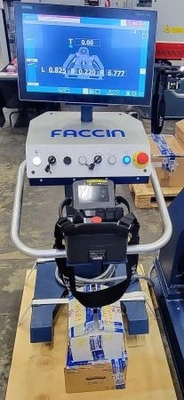

- SIEMENS (ONLY) TOUCH PANEL -PGS-CLASSIC SERIES - NUMERIC CONTROLS
- CONE BENDING WITH
ELECTRONIC CONTROL
BOTTOM ROLLS TILTING
- SIMULTANEOUS MACHINE MOVEMENT
- MICRO-POSITIONING
- DESIGNED TO ACCEPT FUTURE UPGRADES
- AIR COOLING SYSTEM
- EXTRA-LARGE DOUBLE SHAFT DROP END
- ELECTRONIC BALANCING SYSTEM FOR SYNCH OF ROLLS
- HYDRAULIC TILTING OF TOP ROLL
- DUAL LINEAR SLIDE SYSTEM FOR ROLLS TRANSLATION
- ULTRA-WIDE ROLL BEARING HOUSINGS
- MCS BEARING SYSTEM FOR BENDING ROLLS
- CENTRALIZED PUMP LUBRICATION SYSTEM
- PRESSURE GAUGES FOR PINCH ROLL MONITORING
- EXTRA TORQUE AND SPECIAL BRAKING POWER SYSTEM

FEATURES
- HARDENED ROLLS
- SIEMENS NUMERIC CONTROL
- CONE BENDING WITH ELECTRONIC CONTROL
- DUAL LINEAR SLIDE SYSTEM FOR ROLL TRANSLATION
- ULTRA-WIDE ROLL BEARING HOUSING
- MULTI BEARING SYSTEM FOR BENDING ROLLS ROTATION
- EXTRA LARGE DOUBLE SHAFT DROP END
- ELECTRONIC BALANCING SYSTEM FOR SYNCHRONIZATION OF MOVING ROLLS
- PERIMETER CABLE-PULL SWITCH FOR EMERGENCY STOP
- CENTRALIZED PUMP LUBRICATION SYSTEM
- EXTRA TORQUE AND SPECIAL BRAKING POWER SYSTEM
- TOP ROLL TILTING COMBINED WITH HYDRAULIC DROP END
OPENING
- HIGH PRECISION AND PRODUCTIVITY PACKAGE

OPTIONS INCLUDED
- SIEMENS - PGS CLASSIC NC CONTROL
- CONE BENDING WITH ELECTRONIC CONTROL AND BOTTOM ROLLS TILTING
- AIR COOLING SYSTEM
- FACCIN AP - SIMULTANEOUS MOVEMENTS
- FACCIN AP - MACHINE PREPARED FOR FUTURE UPGRADES
- UPGRADE TO SIEMENS PGS-ABSOLUTE CNC
