USED 2015 HURCO VMX42I

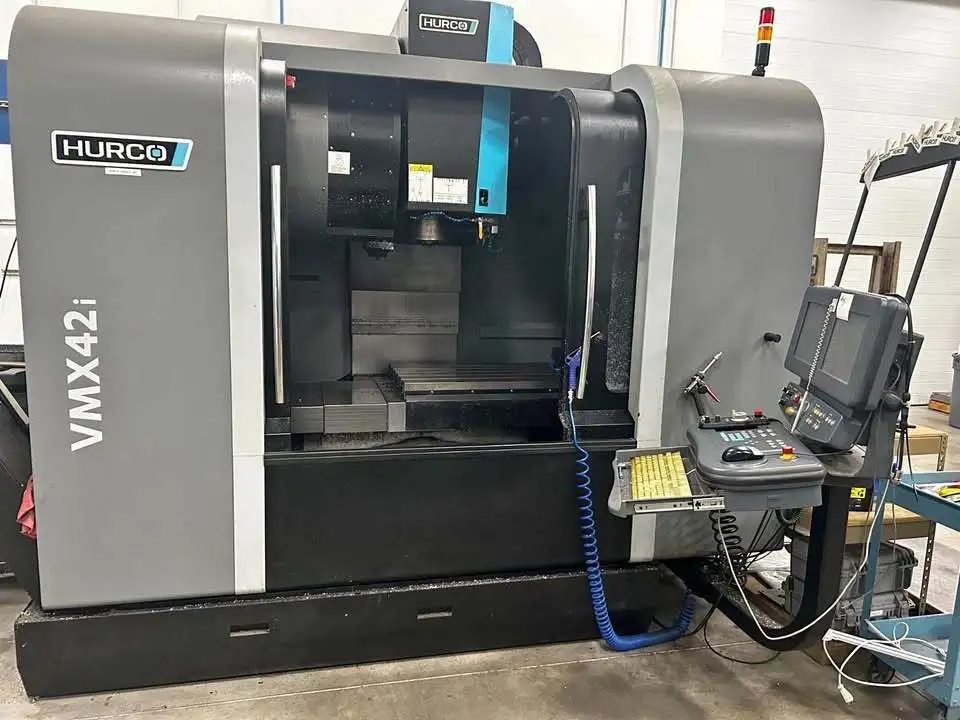

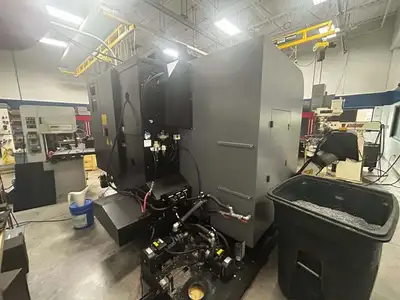

Hurco VMX42I Vertical Machining Center (2015)

Travels & Capacity
X, Y, Z Axis Travel - 42 x 24 x 24 in (1,067 x 610 x 610 mm)
T-Slot Size - 5 x .71 in (5 x 18 mm)
Max. Weight on Table - 3,850 lb (1,750 kg)
Table Size - 50 x 24 in (1,270 x 610 mm)
Spindle Nose to Table - 6.0 in (152 mm)

Spindle
Max. Spindle Speed - 12,000 rpm
Spindle Power - (peak - 1 min)24 hp (18 kW)
Spindle Torque - (peak - 1 min)175 ft. lbs @ 1450 rpm (237 Nm @ 1450 rpm)

Tool Changer
Tool Type - CAT 40 / Big Plus® (CAT or BT 40)
Number Of Tools - 40
Max Tool Diameter - 3.1 in (80 mm)
Max Tool Length - 11.8 in (300 mm)
Max Tool Weight - 15.4 lb. (7 kg)

Feedrates
Rapid Traverse X,Y,Z Axis - 1,181, 1,181, 787 in/min (30, 30, 20 m/min)
Max Programmable Feedrate - 787 in/min (20 m/min)

Size
Max. Operating Floor Space - 152.1 x 146.4 in (3,864 x 3,719 mm)
Machine Height - 114.8 in (2,917 mm)
Machine Weight - 11,596 lb (6,450 kg)
