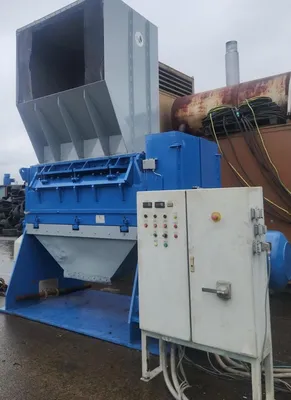

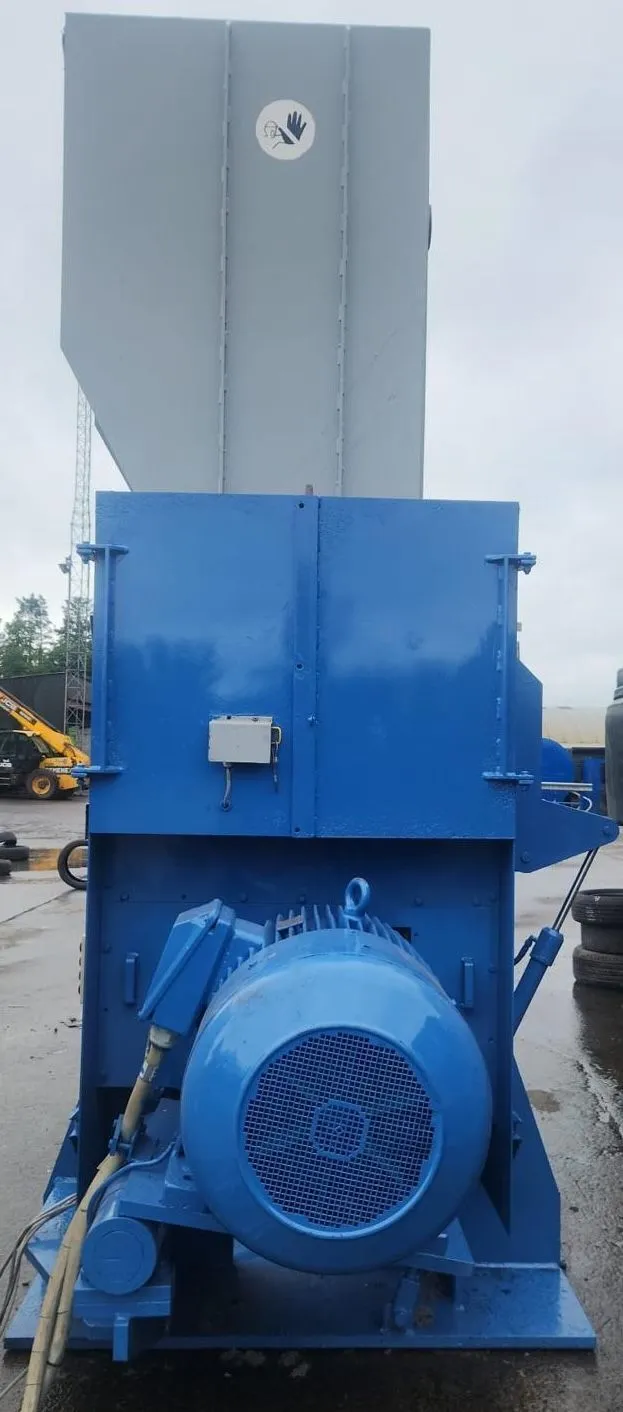

USED 2008 Eldan HG169

ELDAN HG169 HEAVY GRANULATOR - SPECIFICATIONS
(per Eldan Heavy Granulators datasheet, HG-2102-EN)

Type: high-speed, single-shaft heavy granulator
Motor: 110 kW (150 hp)
Motor speed: 1,480 rpm
Rotor length: 1,600 mm (63")
Rotor speed: 400 rpm
Flying knives: 20
Static knives: 8
Capacity: up to 6,000 kg/h (13,200 lbs/h)*
Weight (approx.): 15,600 kg (34,400 lbs)
Length: 1,800 mm (71")
Width: 3,900 mm (154")
Height: 3,450 mm (136")
Standard voltage: 3-phase, 400V, 50 Hz
* Capacity depends on input material, method of feeding, and screen size.

DESIGN FEATURES:
- Friction clutches protect the machine from material overload
- Adjustable knife clearance to optimize the cut
- Knives can be reground multiple times on a flat-bed grinder for long life / low operating cost
- Quick, easy change of knives, screens, and wear plates in the main housing
- Straight knives in exchangeable cassettes for a clean cut
- Hydraulic opening of rotor housing for easy access to rotor and knives
- Screens available with different hole sizes for flexible output
- Exchangeable wear parts for a virtually indestructible machine

MATERIALS PROCESSED: electronic & electrical waste (WEEE), pre-chopped cables, aluminium scrap (all types), shredder light fraction (SLF/ASR), municipal solid waste (MSW), plastics, and more.

MANUFACTURER: Eldan Recycling A/S, Vaerkmestervej 4, 5600 Faaborg, Denmark
NAMEPLATE: Type HG169, Year 2008, 110 kW, 3x400V / 50 Hz, 15,640 kg
INCLUDED: drive motor, undermill conveyor, control panel, hopper, base
ORIGIN: Denmark - Eldan certificate of origin supplied prior to departure
CONDITION: Used

TERMS: Sold As-Is, as shown in photos/videos. Price includes loading into sea container or similar for overseas transport. Excludes shipping and the estimated 10% USA import tariff. Loaded for transport only upon receipt of funds.
