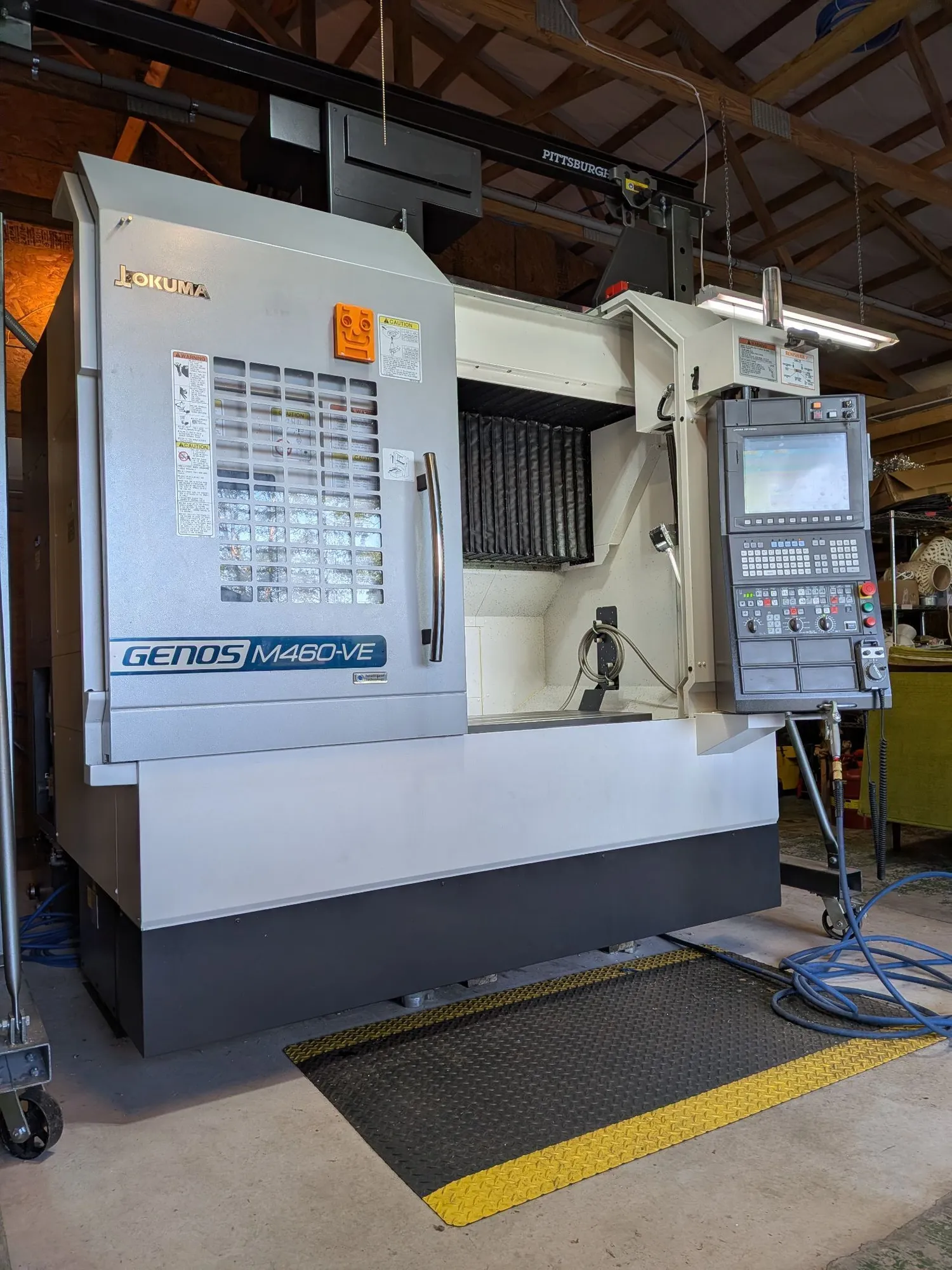

USED 2023 OKUMA GENOS M460-VE

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Vertical Machining Centers

2023 Okuma M460-VE CNC Vertical Machining Center, OSP-P300MA CNC Control, 39.37" x 18.11" T Slotted Table, Travels: X-Axis=30", Y-Axis18.11", Z-Axis=18.11", 15,000 RPM Spindle, Cat40 Big Plus, 32 Station Tool Changer, Coolant Tank, New 2023 (110 Cutting Hours).

Specs
Control
CNC (OSP-P300MA)
CNC (OSP-P300MA)
CNC Control
3
3
# Axis
3
3
Table-L
39.37"
1,000 mm
Table-W
18.11"
459.99 mm
Max Table Load Capacity
1,102 lb
499.9 kg
X-Axis (Longitudinal Travel)
30"
762 mm
Y-Axis (Cross Travel)
18.11"
459.99 mm
Z-Axis (Vertical Travel)
18.11"
459.99 mm
Rapid Traverse Rate (X, Y, & Z Axis)
1,575 in/min.
40 m/min.
Spindle Power
3,025 hp
2,255.7 kW
Spindle Speed Range
15,000 RPM
15,000 RPM
Spindle Taper
CAT-40 BIG PLUS
CAT-40 BIG PLUS
Automatic Tool Changer Capacity (ATC)
32
32
Machine Hours
110
110
Electrics
480/3/60
480/3/60
Dimensions
89" x 101"
89" x 101"
Weight
11,000lbs
11,000lbs
Equipped With

OSP-P300MA CNC Control,3 9.37" x 18.11" T Slotted Table, Travels: X-Axis=30", Y-Axis18.11", Z-Axis=18.11", 15,000 RPM Spindle, Prepped for Through Spindle Coolant, Cat 40 Big Plus, 32 Station Tool Changer, 50.2 Gallon .33hp Coolant Tank, Prep for Chip Conveyor, 8 Sets of external M Codes, Thermal Active Stabilizer Technologies TAS-S & TAS-C, New 2023 (110 Cutting Hours).
