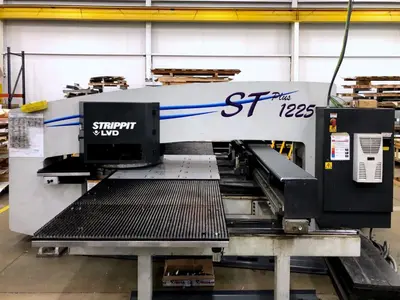

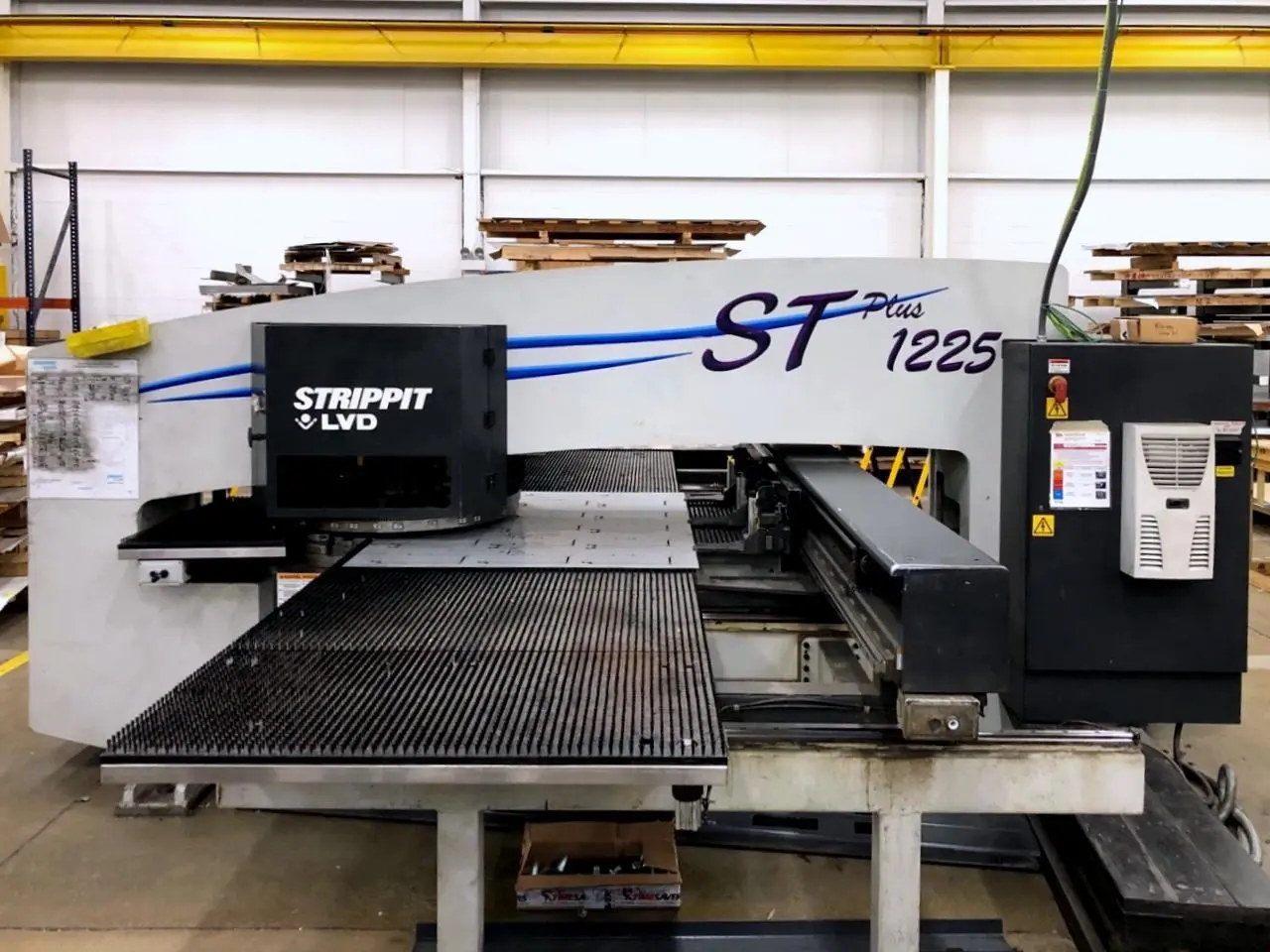

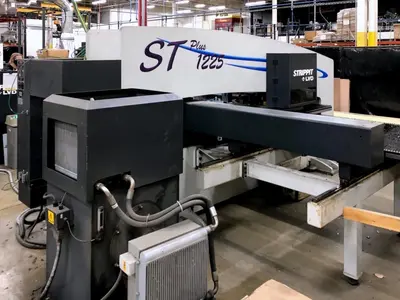

USED 2013 LVD STRIPPIT ST PLUS-1225
Overview
Equipped to handle short to long production runs with punching and forming applications.
Specs
Controller: Fanuc 180i-P CNC
Max. Punching Capacity: 22 Us Tons
Max. Material Thickness: 0.250”
Max. Workpiece Size: 49.21”X 98.4”
Table Type: Brush Table
Table Capacity: 160 Lbs.
Clamping Style: Floating Clamps
Number Of Clamps: 3 Manual Lock
Max. Clamp Spread: 4.80”
Feed Clearance Under Ram: .984”

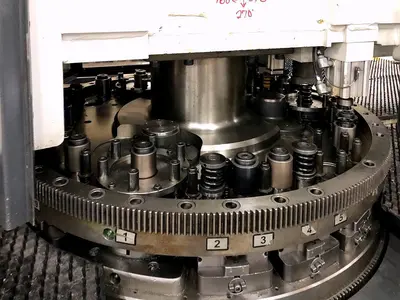

Turret Configuration: 29 Stations
Turret Type: Thick Style
Auto-Index Stations: 3 ‘C’ - 2.0”
Axis Traverse Speed: 3,385 IPM
Combined Axis Travis Speed: 3,385 IPM
Max. Hit Rate: Up To 650 HPM
Equipped With

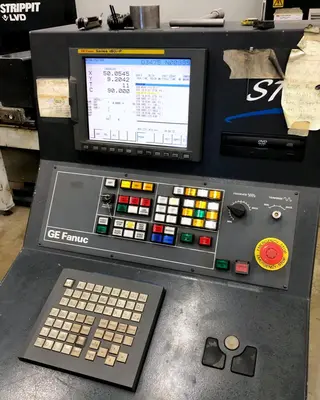

Fanuc 180i-P CNC Control
21 Station Thick Style Turret
3 Ai (Auto-Index) Stations
Brush Type Table
