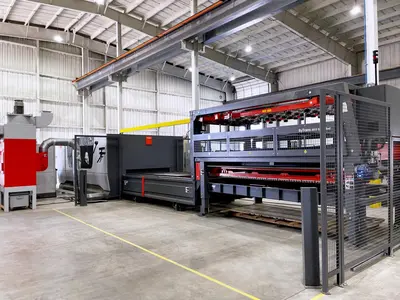

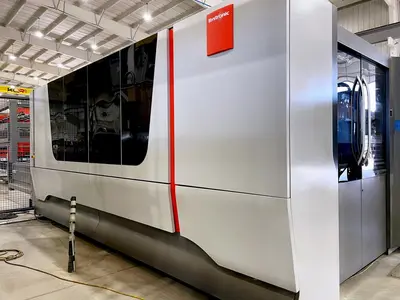

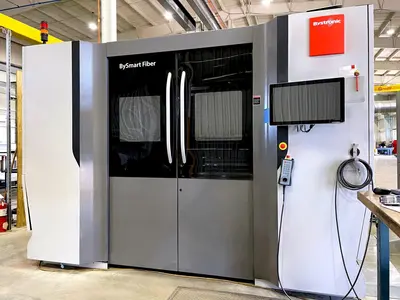

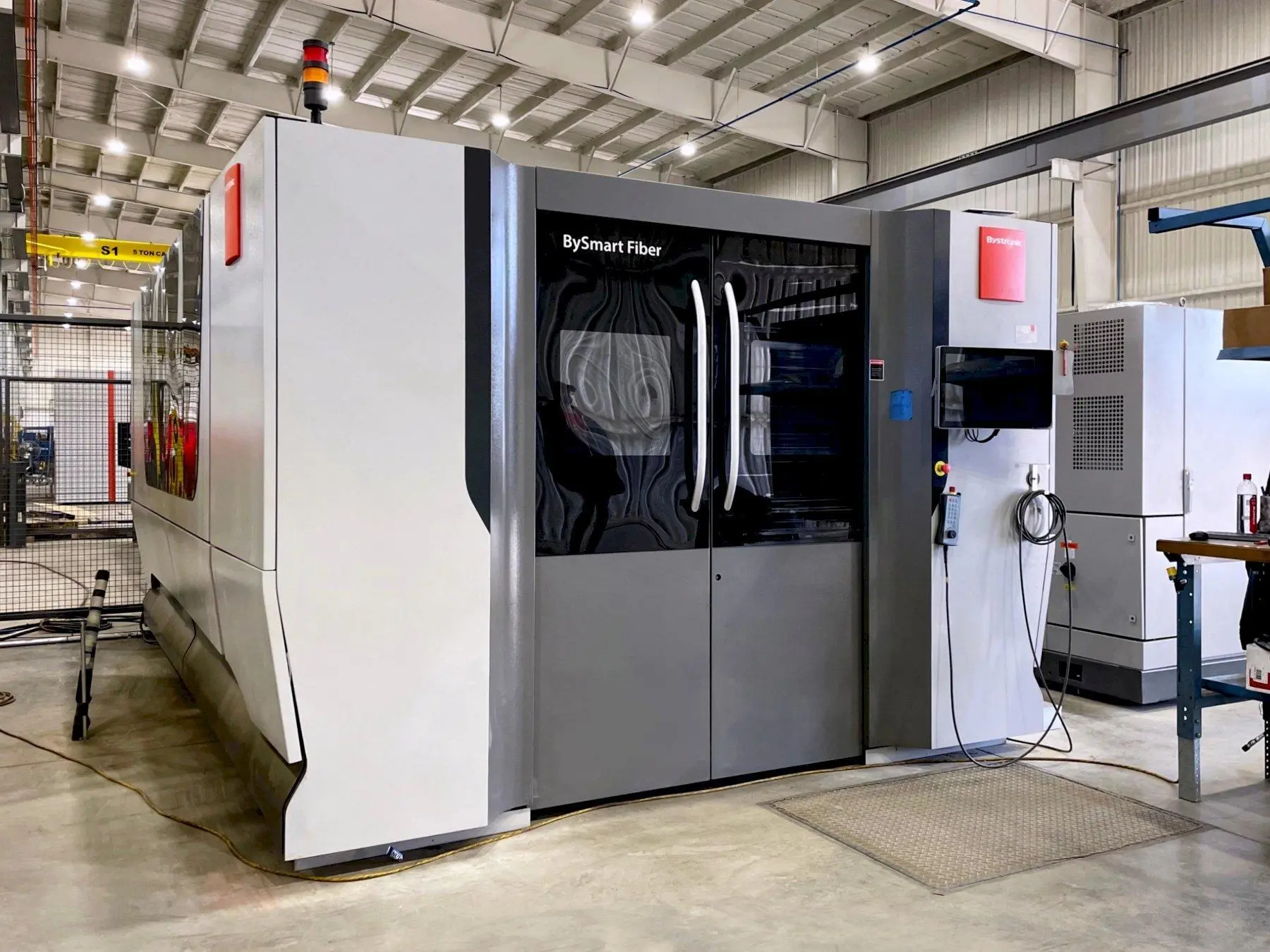

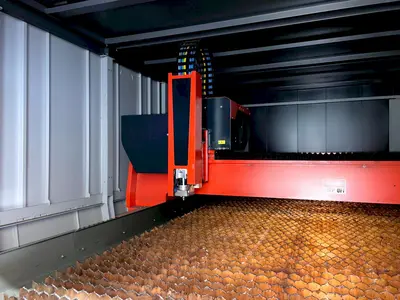

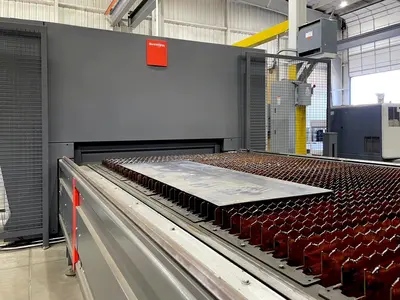

USED 2019 BYSTRONIC BYSMART 3015 FIBER
Overview

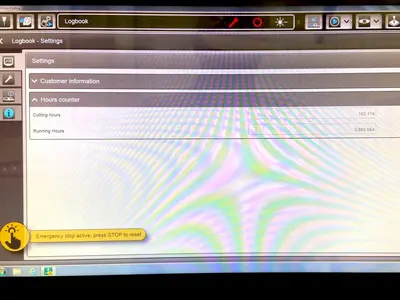

Like New Condition with low hours.
Specs
Control: Byvision Cutting Touchscreen
Manual Control Unit: Yes
Nominal Sheet Size: 120” × 60”
Cutting Area (X): 122.28”
Cutting Area (Y): 62.28”
Cutting Area (Z): 3.937”
Max. Pos. Speed Parallel Axis X/Y: 3,937 IPM
Max. Sim. Positioning Speed: 5,511 IPM
Edge Detection Accuracy: (±) 0.019”
Max. Workpiece Weight: 2,425 Lbs.
Max. Weight (Both Shuttle Tables): 4,078 Lbs.
Table Changeover Time: 27 Sec.
Machine Weight (Machine Only): 26,014 Lbs.
Laser Dimensions: L 413” X W 271” X H 113”
Laser Wavelength: Fiber
Power: 6,000 Watts (6kw)
Range of Adjustment: 600 W - 6,000 W
Max. Cutting Sheet Thickness Steel: 0.984”
Max. Cutting Sheet Thickness Stainless: 1.18”
Max. Cutting Sheet Thickness Aluminum: 1.18”
Max. Sheet Thickness Brass: 0.59”
Max. Sheet Thickness Copper: 0.47”
Total Electric Consumption of System: 17 Kw
Equipped With

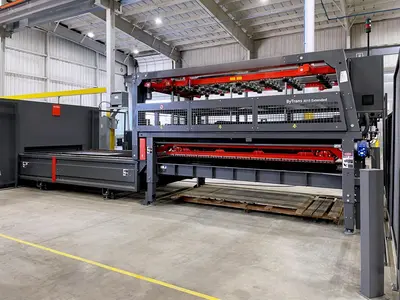

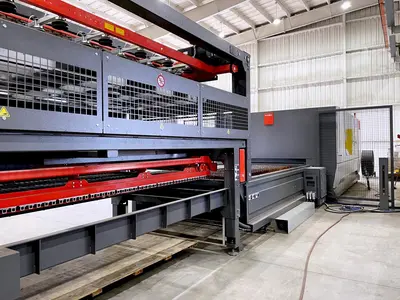

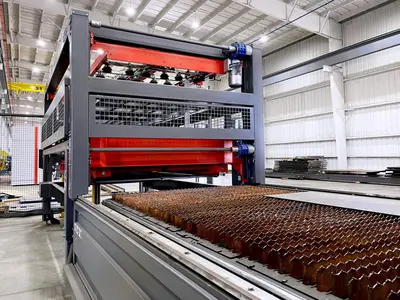

ByTrans Extended Automation (2 Cassettes)
Bystronic Fiber 6000 Power Source
Touchscreen CNC Control
High Speed Cutting
Chiller Unit

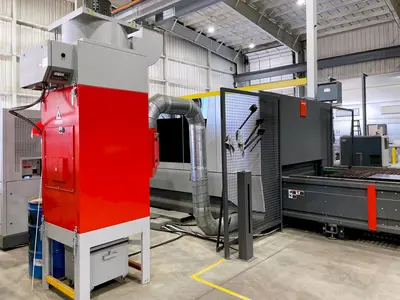

Dust Collection Unit
