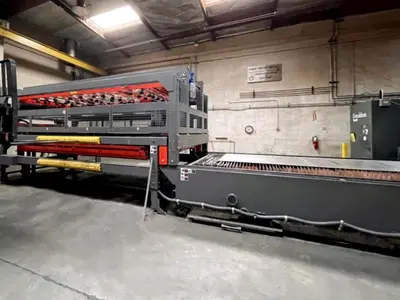

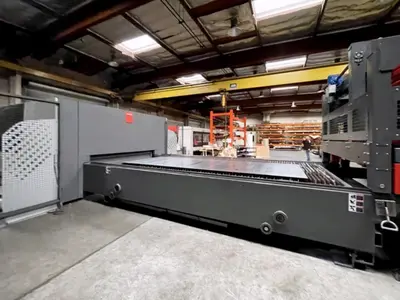

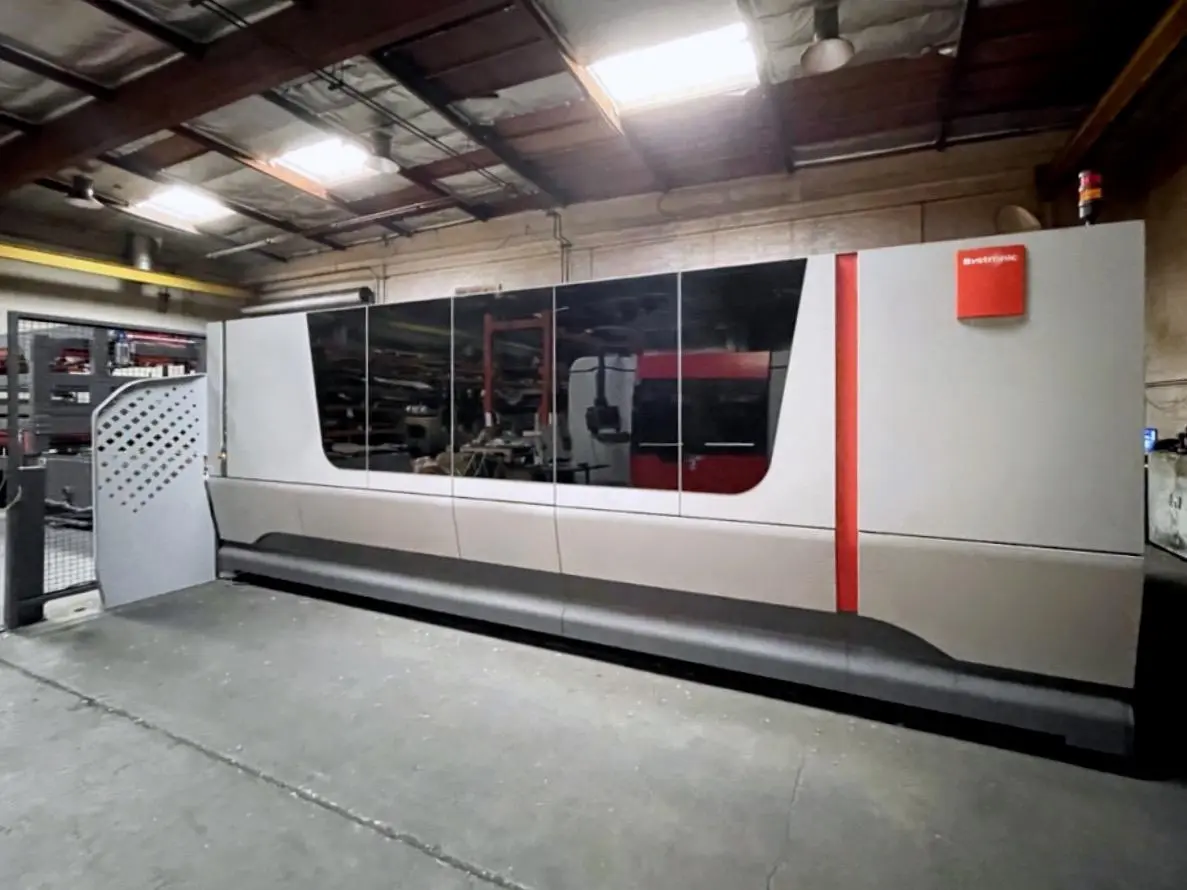

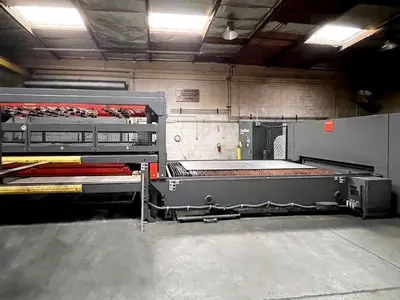

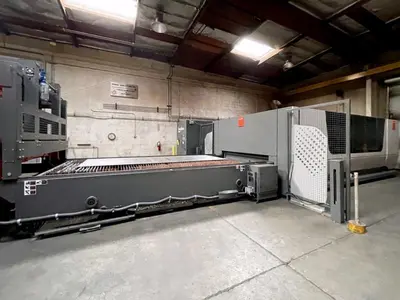

USED 2020 BYSTRONIC BYSMART 4020 FIBER
Overview
Like New Condition with low hours.
Specs
Control: Byvision Cutting Touchscreen
Manual Control Unit: Yes
Nominal Sheet Size: 160” × 80”
Cutting Area (X): 162.20”
Cutting Area (Y): 83.07”
Cutting Area (Z): 3.937”
Max. Pos. Speed Parallel Axis X/Y: 3,937 IPM
Max. Sim. Positioning Speed: 5,511 IPM
Edge Detection Accuracy: (±) 0.019”
Max. Workpiece Weight: 4,188 Lbs.
Table Changeover Time: 27 Sec.
Machine Weight (Machine Only): 32,628 Lbs.
Laser Dimensions: L 503" x W 297" x H 113"
Laser Wavelength: Fiber
Power: 6,000 Watts (6kw)
Range of Adjustment: 600 W - 6,000 W
Max. Cutting Sheet Thickness Steel: 0.984”
Max. Cutting Sheet Thickness Stainless: 1.18”
Max. Cutting Sheet Thickness Aluminum: 1.18”
Max. Sheet Thickness Brass: 0.59”
Max. Sheet Thickness Copper: 0.47”
Total Electric Consumption of System: 17 Kw
Equipped With
Byvision Cutting Touchscreen
Bystronic Fiber 6000 Power Source
Byvision Cutting Touchscreen
High Speed Cutting
Automatic Nozzle Changer w/ 40 Positions
Automatic Nozzle Changer w/ 40 Positions
Netbox (Router)
Netbox (Router)
Netbox (Router)
Chiller Unit
Donaldson Torit Dust Collection Unit

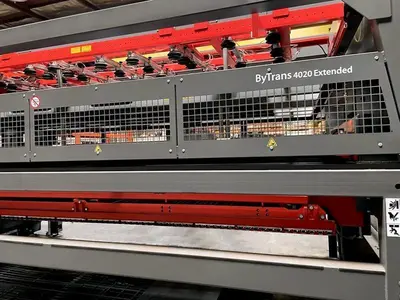

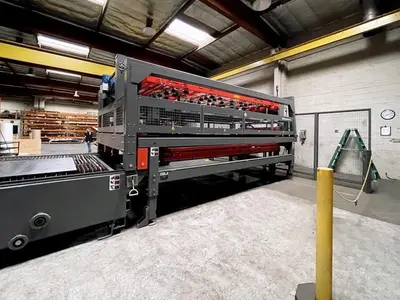

ByTrans 4020 Extended Automation (2 Cassettes) w/ Copper Grates
Copper Grates
Replacement Cost $1,032,000.00
Replacement Cost $1,032,000.00
Replacement Cost $1,032,000.00
