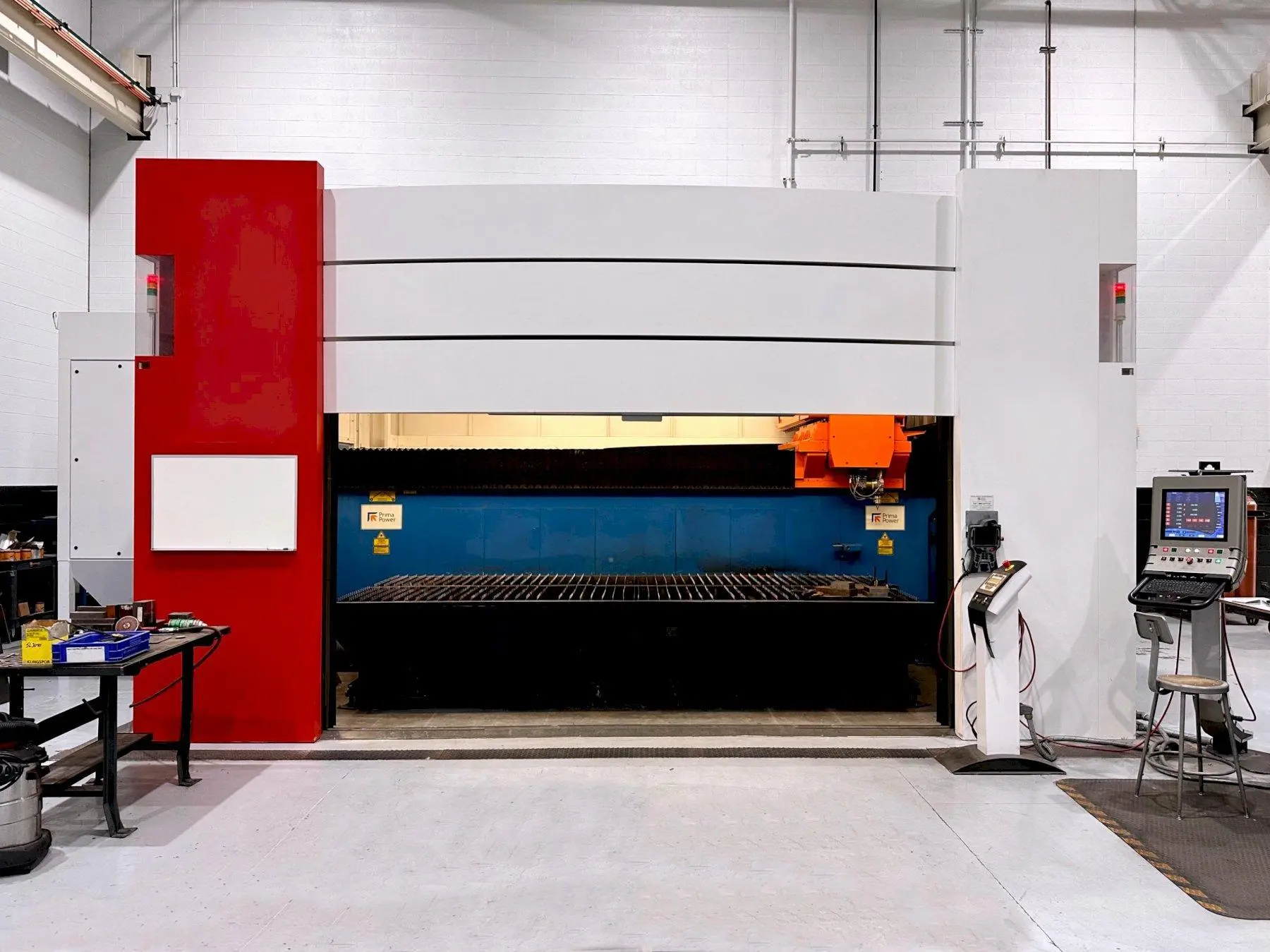

USED 2016 PRIMA RAPIDO EVO 2 FIBER

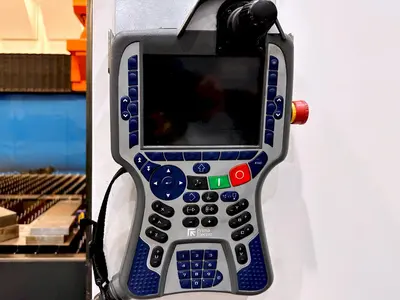

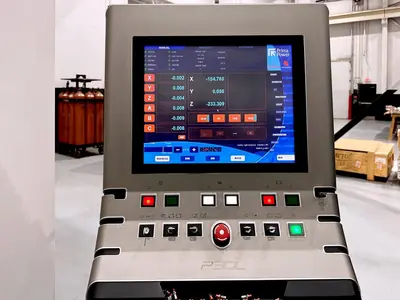

Control: P30L CNC
Screen: 17” LCD Touch Screen
Power Type: Fiber

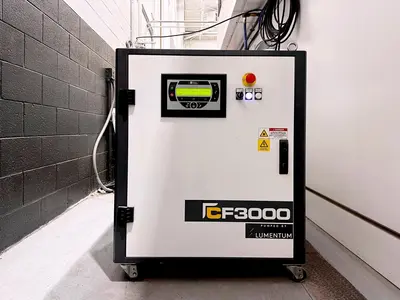

Power Source: CF3000 (Lumentum)
Power Output: 3 kW (3,000 Watts)

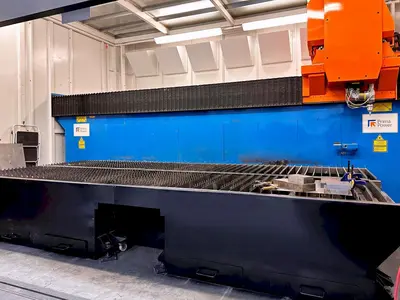

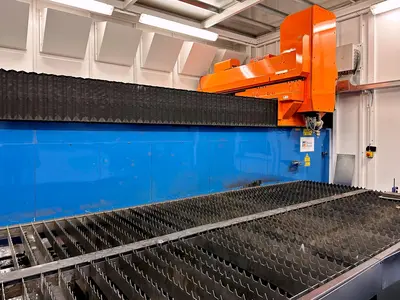

Table Size: L 160” x W 60” x H 30”
X Axis Travels: 160.62”
Y Axis Travels: 60.23”
Z Axis Travels: 30.11”
A Axis Travels: 360°
B Axis Travels: ±135°
Axis speed X, Y, Z: 3,937 IPM
Axis Speed Trajectory: 6,889 IPM
Axis speed A, B: 1.5 rev/s
Acceleration Trajectory: 1.4 G
Acceleration X/Y/Z: 1.4 G
Acceleration A/B: 60 rad/s2
Linear Axis Resolution: .0000393”
Head Axis Resolution: .00006 Deg.
Pos. Accuracy (Pa) X/Y/Z: .00118”
Pos. Accuracy (Pa) A/B: .005 Deg.
Pos. Repeatability (Ps) X/Y/Z: .00118”
Pos. Repeatability (Ps) A/B: .005 Deg.
Dimensions: L 273” x W 222” x H 147”
Weight: 41,226 Lbs.
Laser Power Consumption: 12 kW

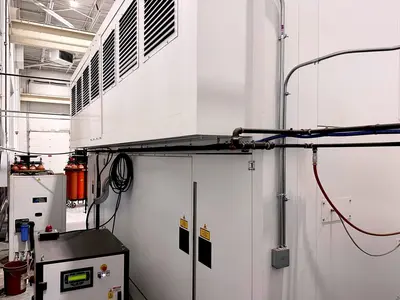

Chiller Power Consumption: 6 kW
