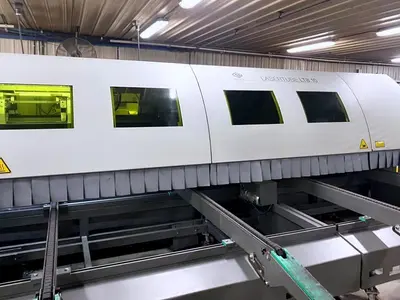

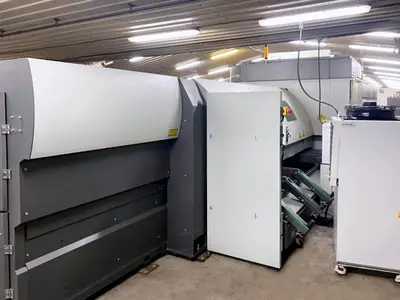

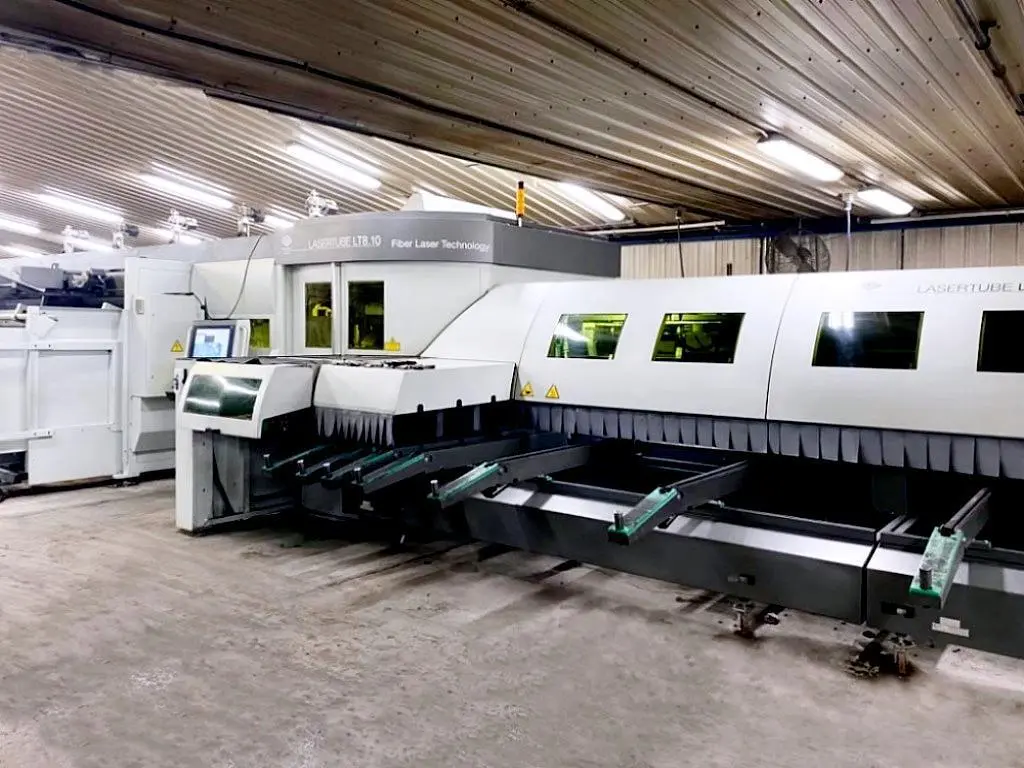

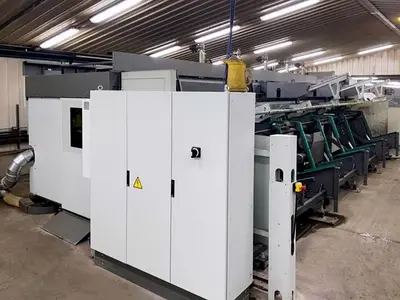

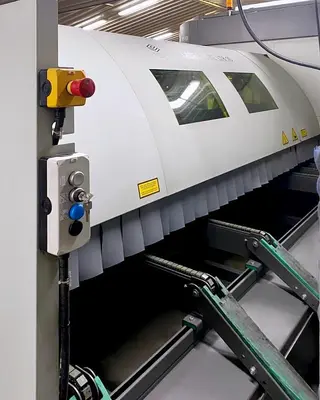

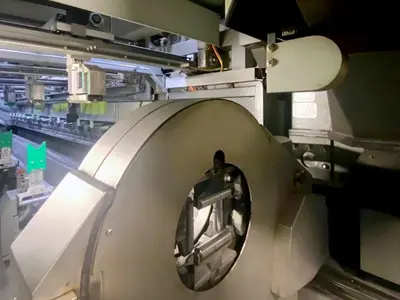

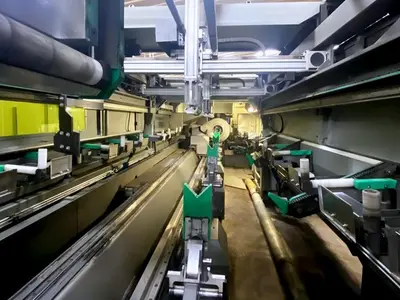

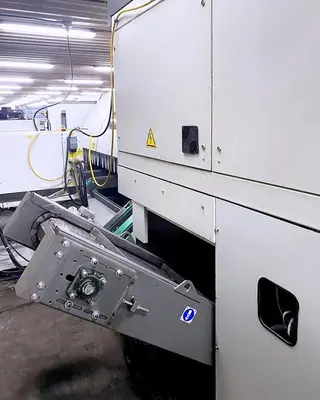

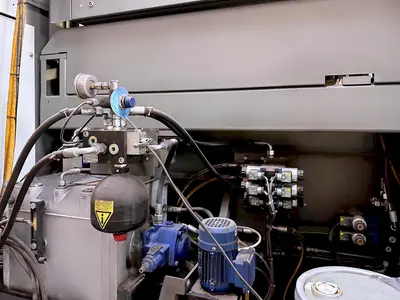

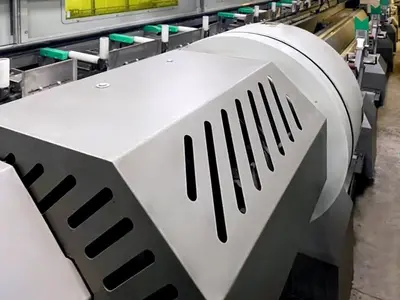

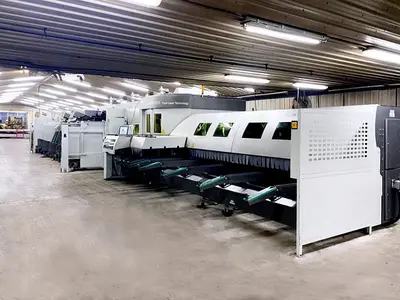

USED 2019 BLM LT8.10 FIBER
Overview
Excellent condition with low hours. Serviced by OEM since installed.
Specs

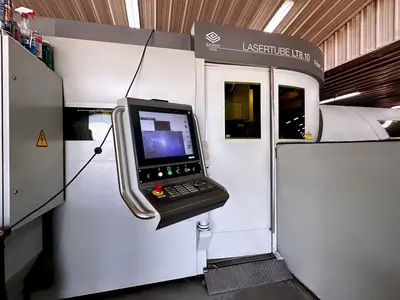

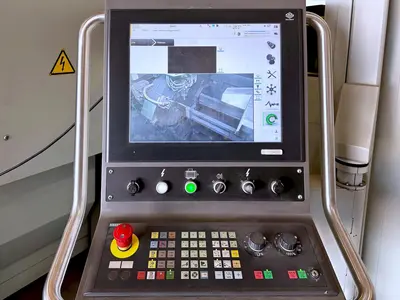

Controller: Siemens Simatic
Laser Power: IPG YLS 4000 Watt Fiber Resonator
Round Tube Diameter: .50” - 8.625”
Square Tubes: .50” - 8.0”
Rectangular Tube (Width): .50” – 8.0”
Bar Load Size: 28’
Min. Bar Load Length (Auto Bundle Loader): 8.2'
Bar Unload Size: 28”
Max. Bundle Weight: 8,800 lbs.
Max. Bar Weight (At full duty cycle): 25 lbs. / Foot
Unloading Lengths: 21'
Tilt Head Cutting: Standard (+/- 45 Degrees)
Open Shapes Capability: Standard - Processing Angle Iron, Channel, Flat Bar
Booster Pierce / Breakthrough Detector: Standard
Weld Seam Detection: Standard
Tube Twist & Bow Correction: Standard
Max. Cut Thickness (Mild Steel): .394”
Max. Cut Thickness (Stainless Steel): .236”
Max. Cut Thickness (Aluminum): .236”
Max. Cut Thickness (Brass): .236”
Max. Cut Thickness (Copper): .157”
Equipped With

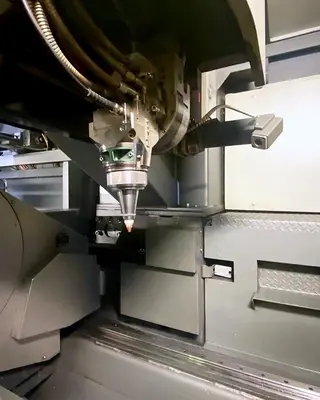

Updated Tilting 3-D Laser Head +/- 45° (Bevels/Miters)
Updated Tilting 3-D Laser Head +/- 45° (
4kW IPG YLS Fiber Laser
Active Focus
Active Piercing
Active Marking
Active Scan
Active Speed
Optical Weld Seam Sensor
(2) On-board cameras (Internal & Rear of Machine)

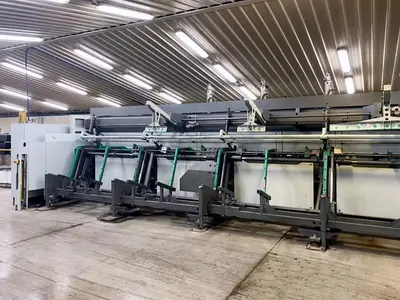

Fully Automated Tube Bundle Loader (Rear)
Single Bar Loader (Front)
Open Shapes Capabilities

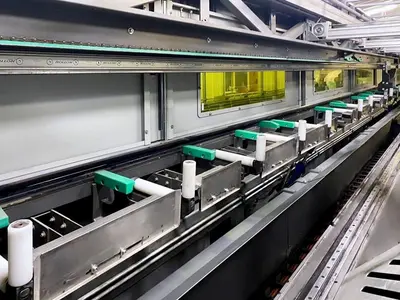

Motorized Unloading Table
Short Parts Belt
Rear Scrap Conveyor

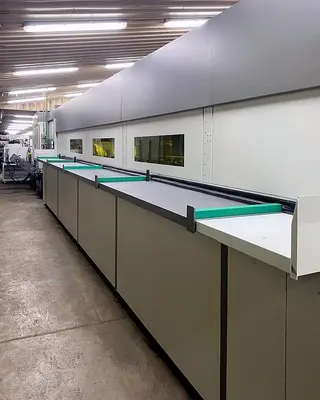

Front and Rear unload Collection Tables
IPG Chiller

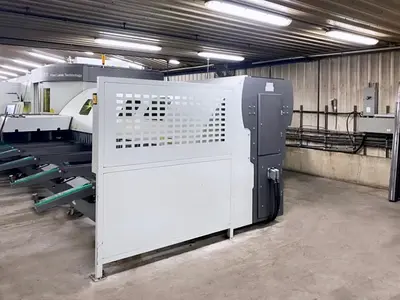

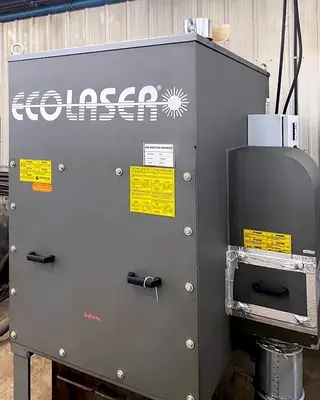

Sideros Dust Collector
(2) On-board cameras (Internal & Rear of Machine)
Fully Automated Tube Bundle Loader (Rear)
Single Bar Loader (Front)
Open Shapes Capabilities
Motorized Unloading Table
Short Parts Belt
Rear Scrap Conveyor
Front and Rear unload Collection Tables
IPG Chiller
Sideros Dust Collector
