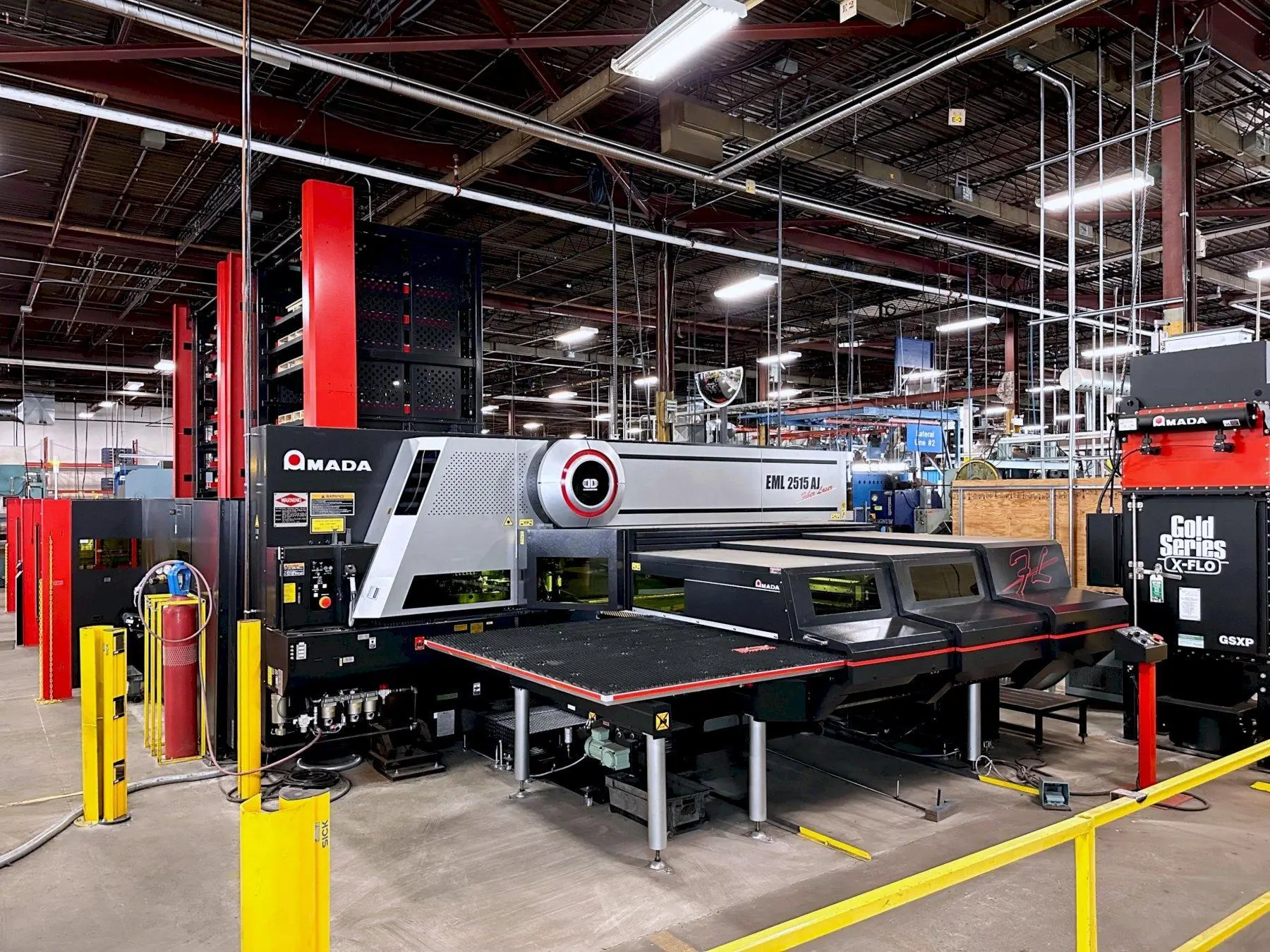

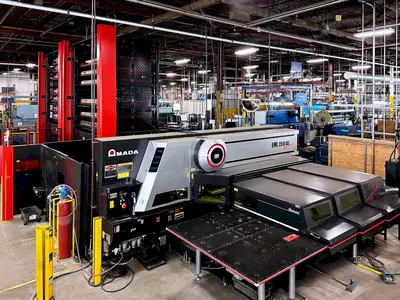

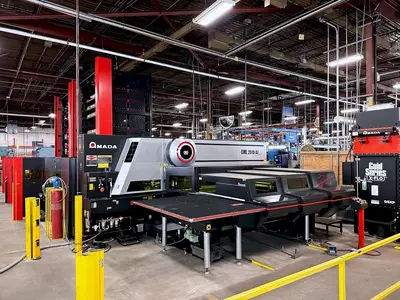

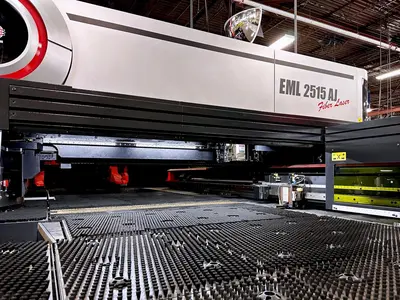

USED 2020 AMADA EML2515-AJ 3KW / 33 TNF
Overview

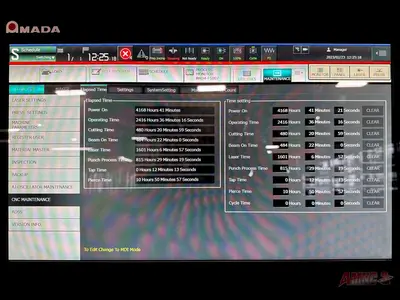

Like New – Installed in 2021. Beam On Hrs. 480 / Punch Process Hrs. 815
Specs
Punching Force: 33 Tons
Tool Stations: 55
Continuous Laser Output: 3 KW
Type: AJ 3000 Fiber
Punching Operation (X/Y): 120” x 60”
Laser Operation (X/Y): 100” x 60”
Combined Working Area w/ Repo.: 60” x 120”
Z Axis Laser: 14.9”
Max. Material Thickness: .250”
Table Loading Weight: 480 Lbs.
Traverse Speed (X/YP): 3.937/3.149 IPM
Assist Gas Change: Automatic
Laser Axis (YL): 3,149 IPM
Axis Simultaneously: 5,031 IPM
Z Axis Simultaneously: 2,362 IPM
Punching Accuracy: +/-0.0027”
Included Rotation Stations: 4
Stroke (Adj. to Suit Application): 1.5”
Punch Rate (On I" Centers): 500/min.
In Marking Mode: 1850/min.
Table Design: Brush Table
Parts Chute: 15.75” x 60”
Machine Frame: Bridge Frame
Press Drive: Servo Electric Drive
Turret /Table Drive: AC Servo Motors
Control: AMNC 3i
Storage Capacity: 440kB
Number of Controlled Axes: 6
Machine Weight: 33 Tons
Equipped With
Punch / Laser Combo

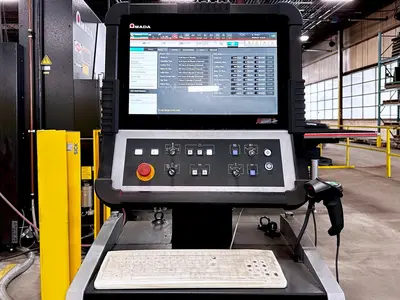

Amada Multi-Touch AMNC 3i Controller
Bar Code Reader

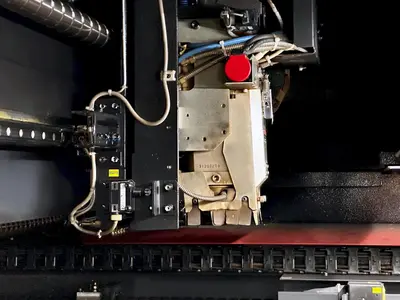

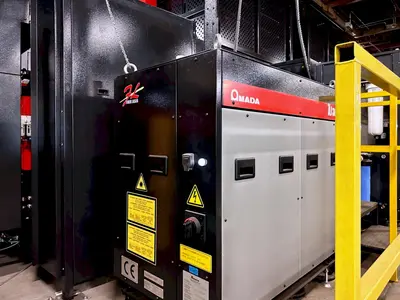

3KW AJ Fiber Engine
Auto Nozzle Cleaner & Changing Station
33 TNF (US) Dual AC Servo Ram Drive

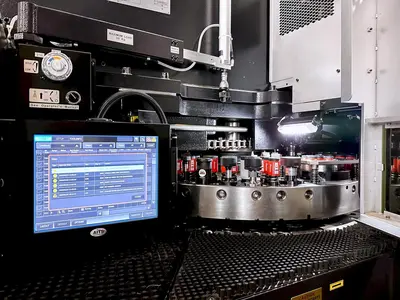

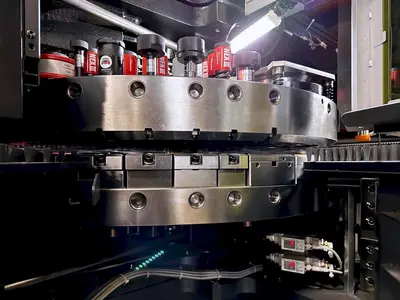

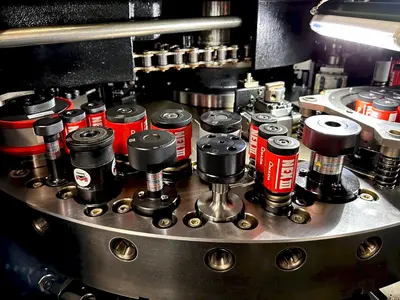

55 Station MPT Triple Track Turret
Nylon Brush Table
Punch & Form Feature
4 Tapping Stations
Air Blow
Power Vacuum Die
Automatic Work Chute
Scrap Conveyor

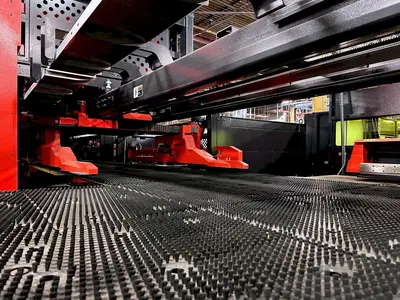

High Density Nylon Brush + Pneumatic Roller Ball Table
Interlocked Perimeter Safety Guarding
Transformer Unit (75 KVA)
Integrated Chiller System

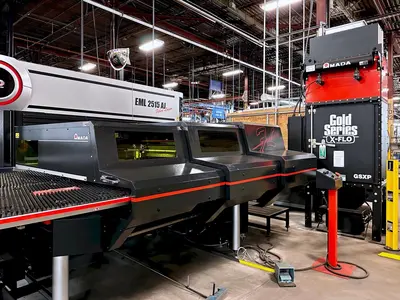

Camfil Gold Series X-Flow GSXP Dust Collector
Punch Tooling Package ($45,000)

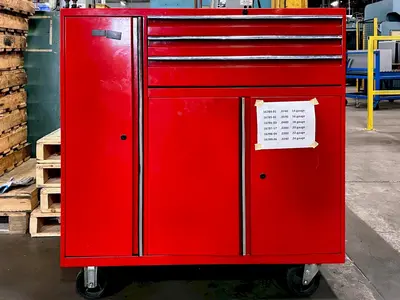

Punch Tooling Cabinet
Automation:

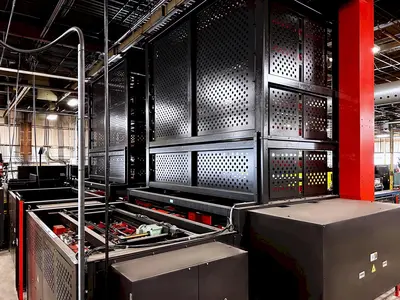

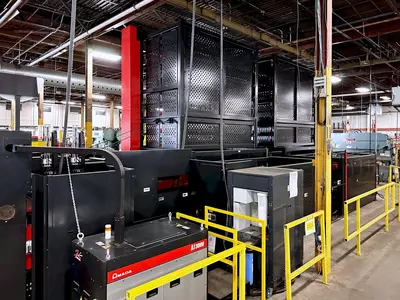

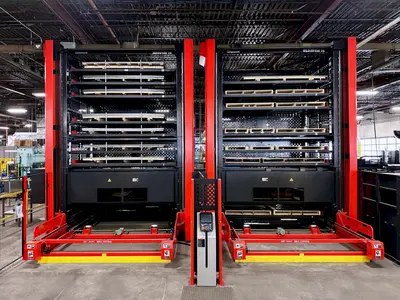

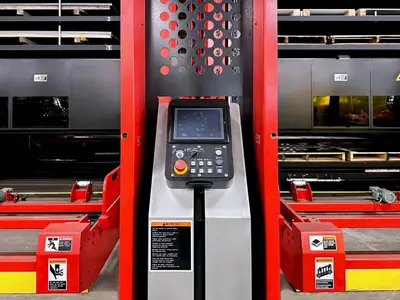

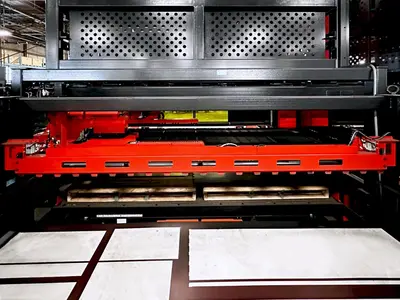

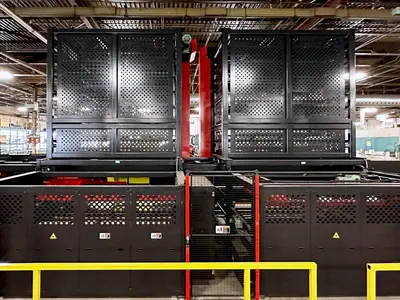

Amada ASR3015N+ULS3015N-TKPK - 16 Shelf Load / Un-Load Automation + Robotic Part Picking, Sort & Stack System (Twin Tower)
Nitrogen / High Pressure Air System:

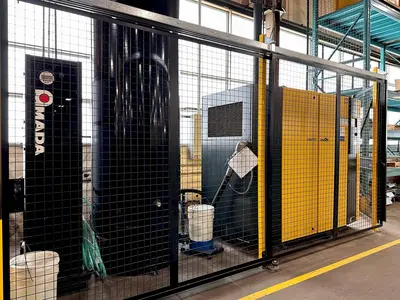

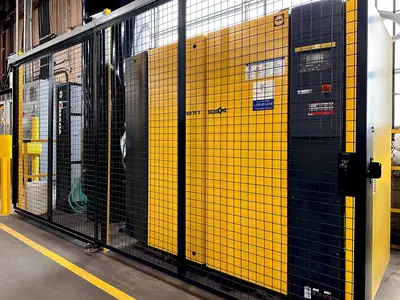

Amada EZM-1500A / 75 HP Nitrogen Generation Assist Gas / High Pressure Air System (N2 Gen w/75 HP Comp, 2000 SCFH @ 99% pure - 5000 SCFH @ 95% pure, 1800 SCFH Dry Air Assist Gas, 205 PSI delivery, 600 Vac 3PH) Includes Transformer
Additional Items Included:

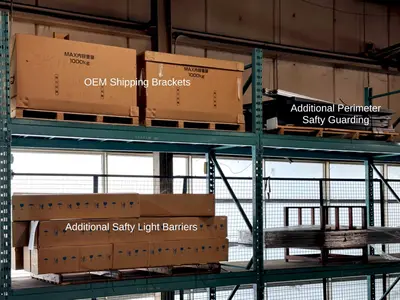

Sick Safety Light Barriers
Perimeter Safety Guarding
OEM Shipping Brackets
Full Set of OEM Operating Manuals
Laser & Turret Spare Parts
Laser Consumable
Nitrogen / High Pressure Air System Spare Parts
Nitrogen / High Pressure Air System Consumables
Nitrogen / High Pressure Air System Consumables
