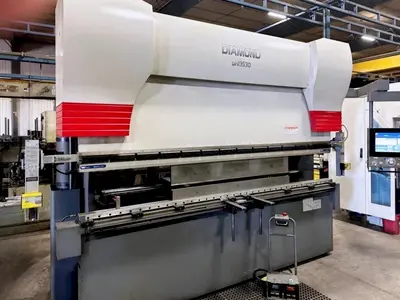

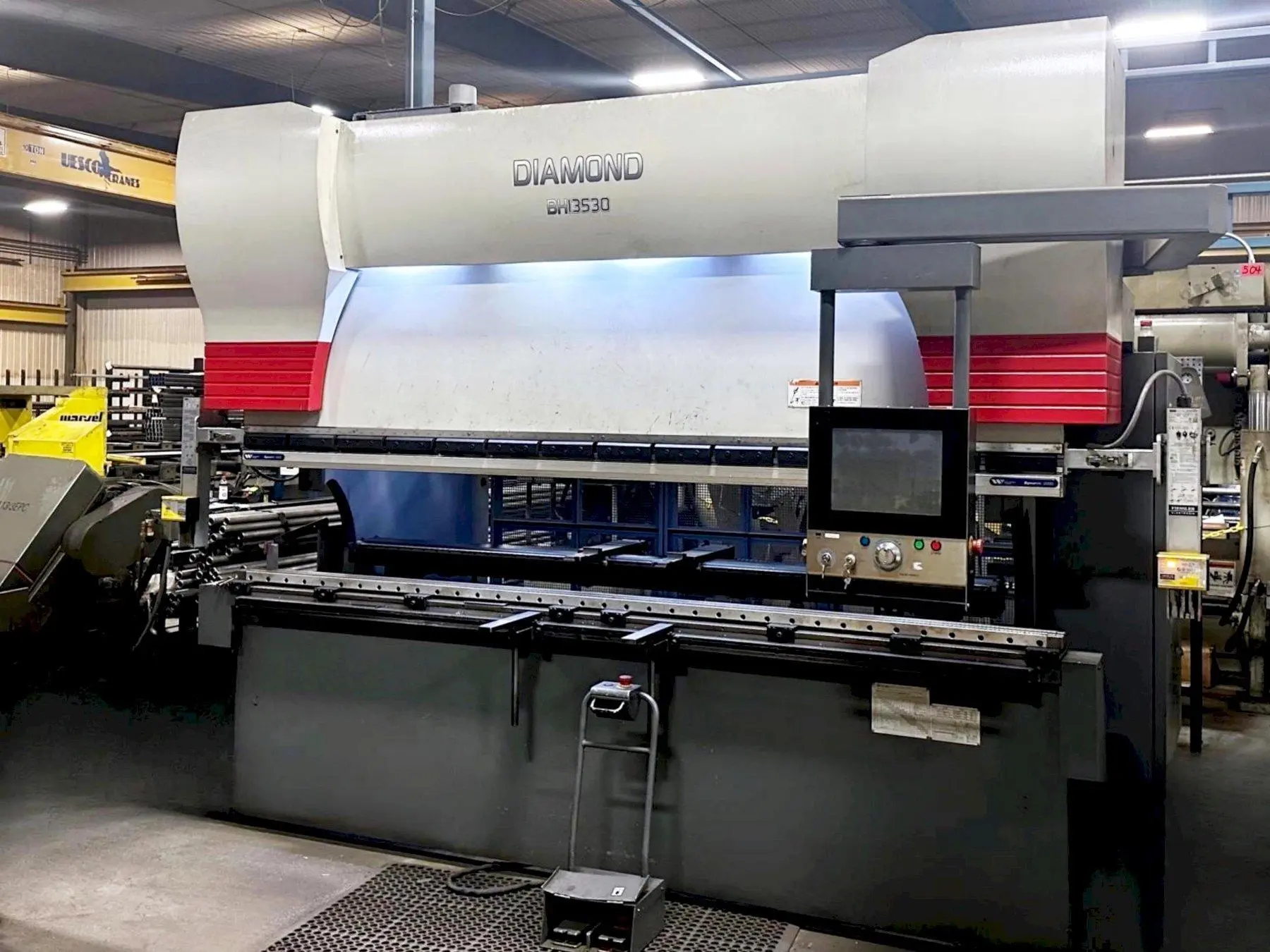

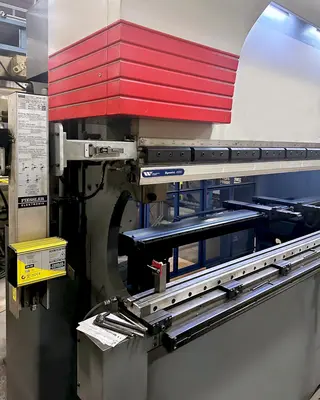

USED 2017 MITSUBISHI DIAMOND BH13530
Overview
Excellent condition with little use.
Specs
Press Force: 150 Tons
Bending Length: 122”
Back Gauge Axis: 4
Crowning: Auto Micro-Wedge Crowning System
Open Height: 21”
Ram Stroke: 10”
Gap Depth: 16”
Distance Between Frames: 106”
Ram Speed Approach: 472 IPM
Ram Speed Bending: 23.6 IPM
Ram Speed Return: 472 IPM
Ram Speed Ram Cycles: 1,560
Backgauge Speed Y-Axis: 2,000 IPM
Backgauge Speed X-Axis: 2,000 IPM
Backgauge Speed Z-Axis: 475 IPM
Power Requirement: 12 kVA
Weight: 21,825 Lbs.
Dimensions: L 186” x W 97” x H 118”
Equipped With

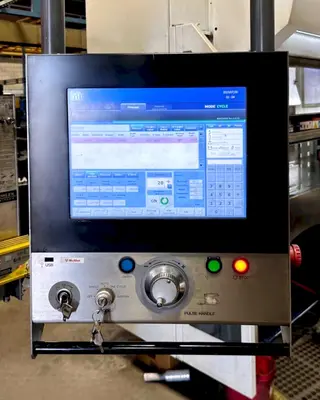

Mitsubishi CNC Control
22” Multi-Touchscreen LCD Display
Microsoft Windows Operating System
4 Axis High-Speed Backgauge
Patented Automatic Micro-Wedge Crowning System
Mitsubishi Servo Amplifiers & Motors

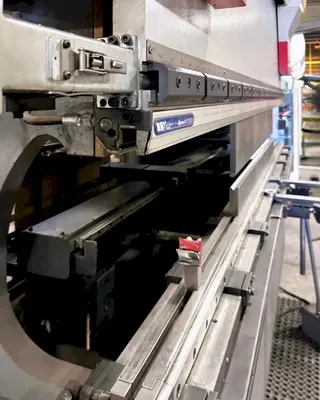

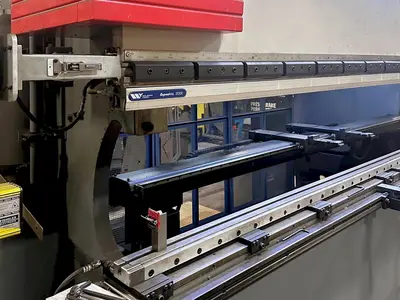

Wilson ExpressRail 2000 Hydraulic Clamping System
Sheet Supports
Dual Drive Hybrid
Mitsubishi Components

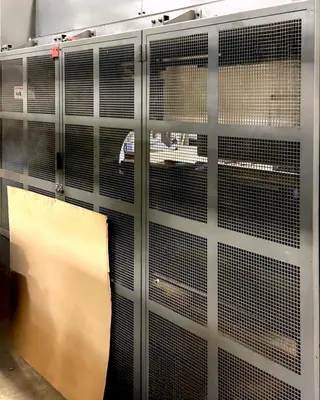

Safety Interlocked Side & Rear Gates

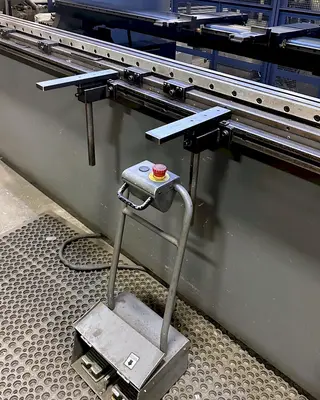

Movable Foot Pedal
LED Lighting (Back Gauge & Front Work Area)
