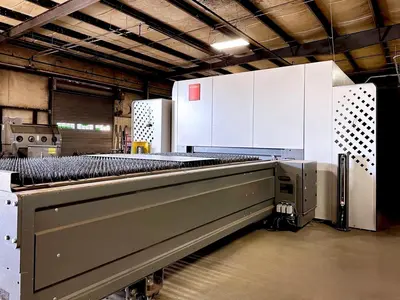

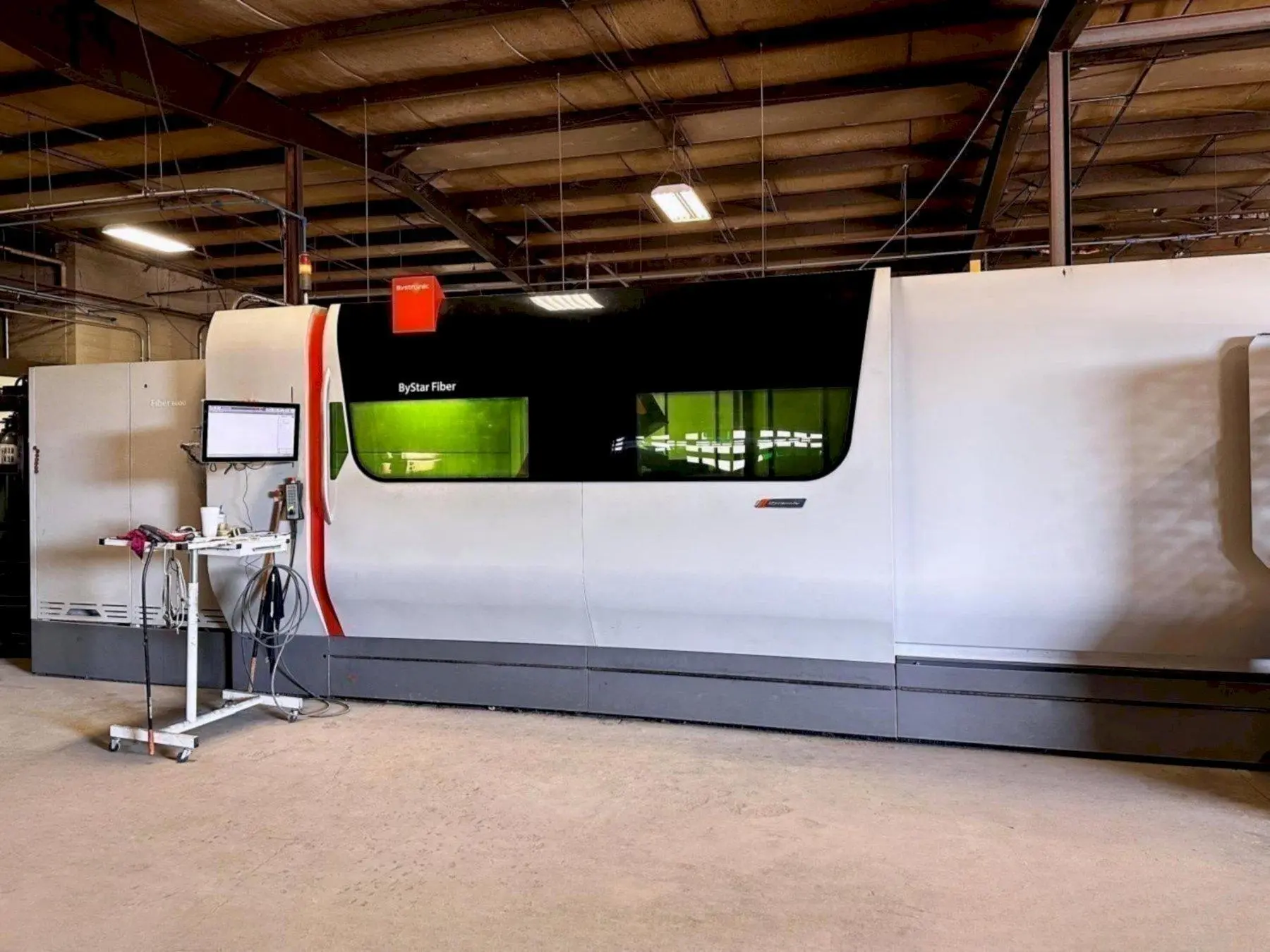

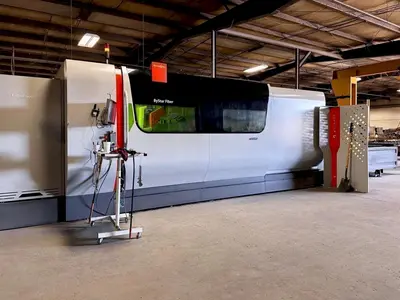

USED 2016 BYSTRONIC BYSTAR 3015 FIBER
Overview
Recently replaced cutting head, readers and read strips
Specs
Control: ByVision CNC
Nominal Sheet Size (X): 118.11”
Nominal Sheet Size (Y): 59.05”
Cutting Area (X): 122.04”
Cutting Area (Y): 62.20”
Cutting Area (Z): 3.93
Max. Pos. Speed Parallel Axis X/Y: 4,724 IPM
Max. Simultaneous Pos. Speed: 6,692 IPM
Edge Detection Accuracy: (±) .01968”
Max. Workpiece Weight: 2,425 Lbs.
Shuttle Table Changeover Time: 25 Sec.
Wavelength: Fiber
Power Source: Fiber 6000
Power Output: 6,000 Watts
Range of Adjustment: 600–6,000 Watts
Max. Cut Mild Steel: .98”
Max. Cut Stainless Steel: 1.18”
Max. Cut Aluminum: 1.18”
Max. Cut Brass: .59”
Max. Cut Copper: .47”
Total Electric Consumption: 22kw
Dimensions: L 468” x W 224” x H 126”
Machine Weight: 24,250 Lbs.
Equipped With

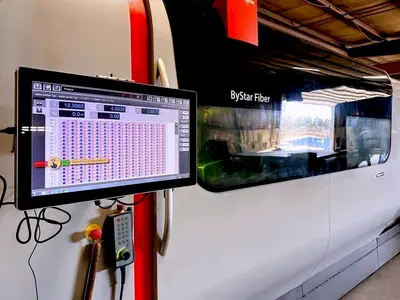

Byvision Touchscreen CNC Control
Manual Control Unit
Bystronic Fiber 6000 Power Source

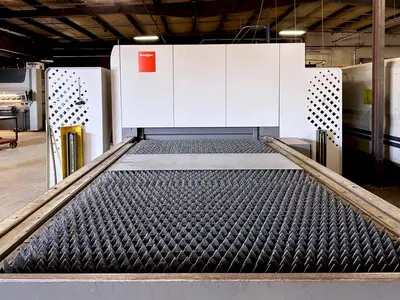

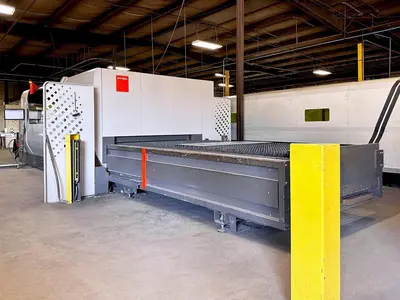

5' X 10' Duel Pallet Shuttle Table

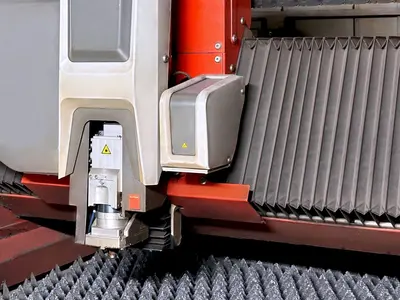

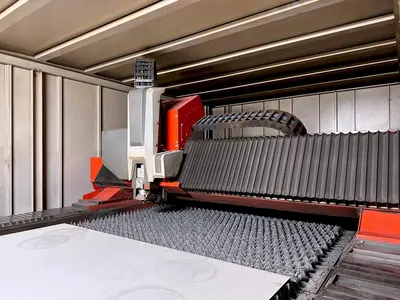

High Speed Cutting Head
Chiller Unit
Donaldson Dust Collector
