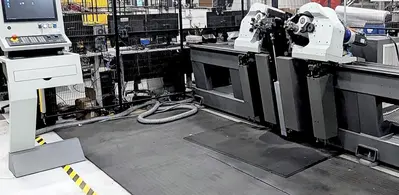

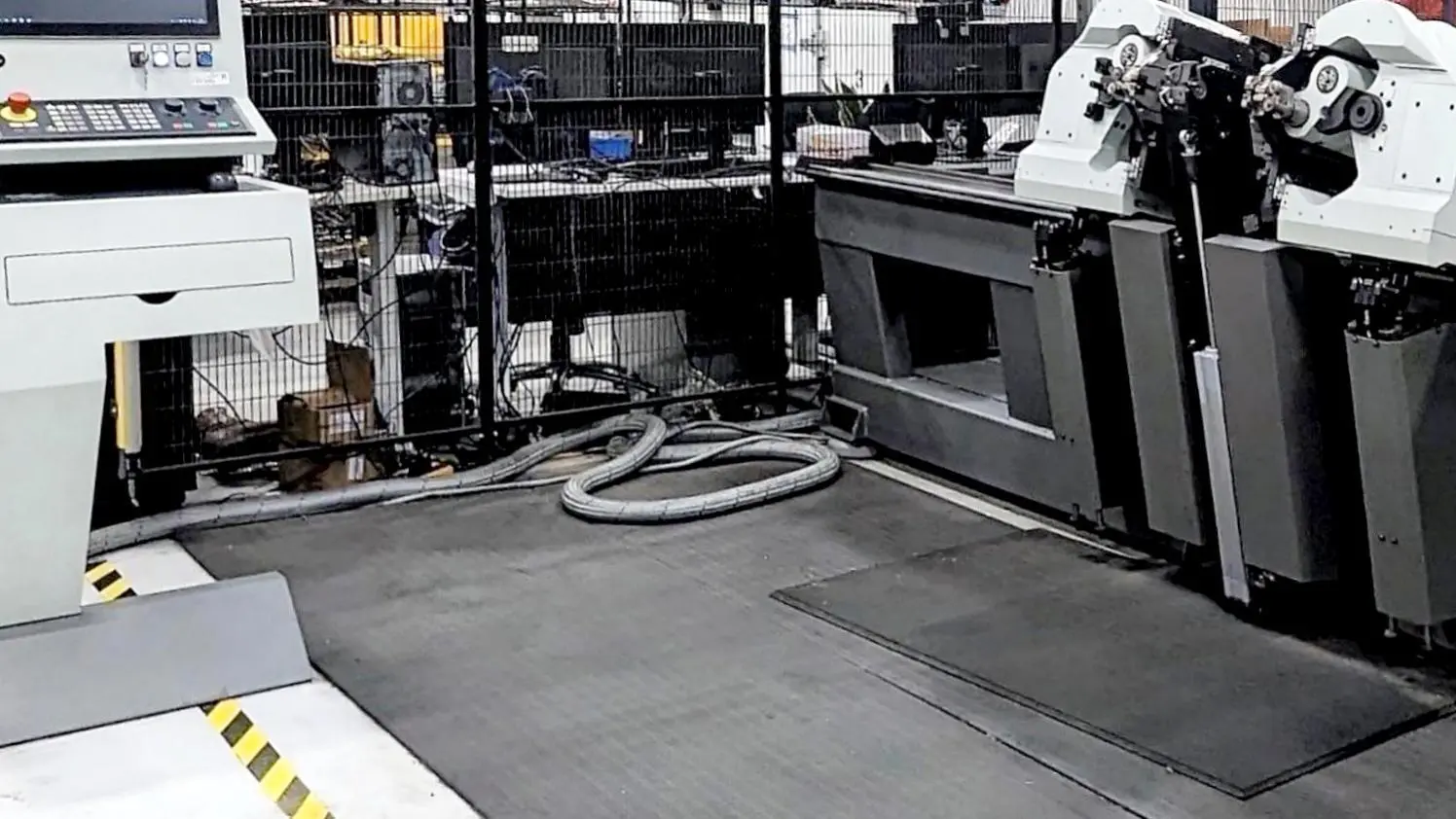

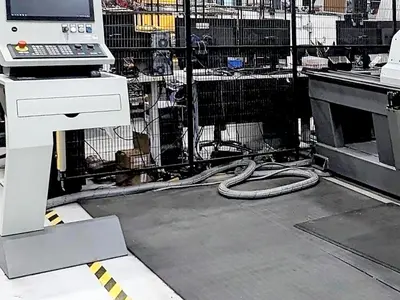

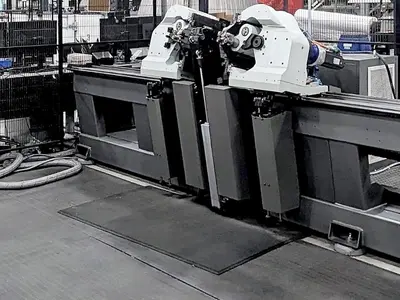

USED 2021 BLM DH4010-P
Overview
Machine is in Like New Condition with little use.
Specs
Machine Type: Electric
Bending Capacity Wire R = 145000 psi (1000 N/mm2): Up to Ø .31"
Bending Capacity Wire R = 87000 psi (600 N/mm2): Up to Ø .39"
Bending Possibility: Flat Rod, Tubes, Wire-Wound Resistances
Capabilities: Folding on Central Bush, Corner Fold, Double Die Bending, Variable Radius Bending, Stroke Folding, Interpolated Bending
CNC Axes: 9
Bending Angle: 0.1° - 240°
Bending Radius: .02"- Infinite
Working Stroke: Up To 173"
Max. Installed Power Bar Version: 18 Kw
Max. Installed Power Coil Version: 22 Kw
Ave. Drawn Power Bar Version: 6 Kw
Ave. Drawn Power Coil Version: 8 Kw
Machine Weight: 8,818 Lbs
Equipped With

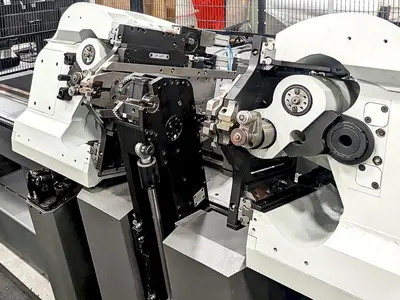

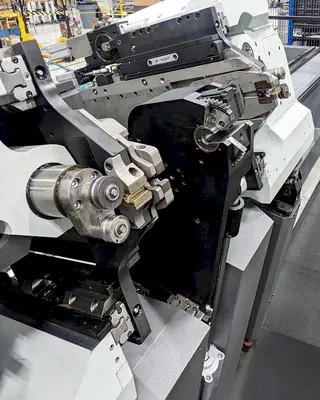

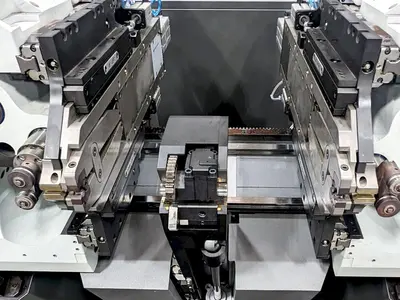

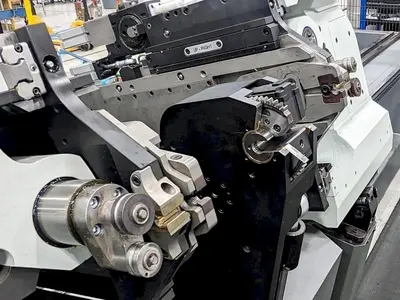

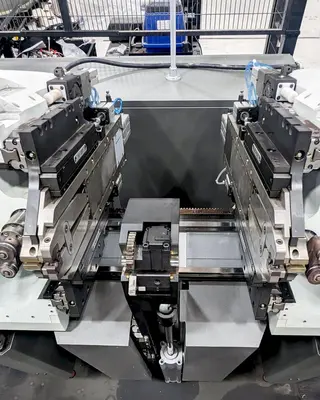

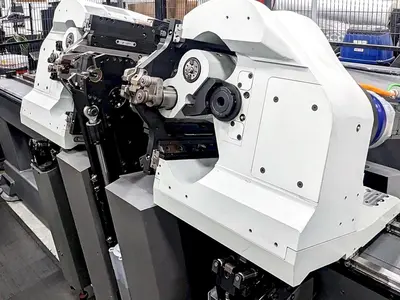

Double Bending Head
Twin Turret
Chamfer End Finishing

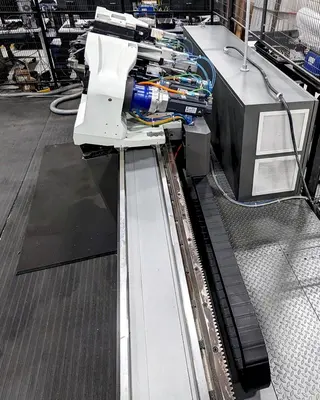

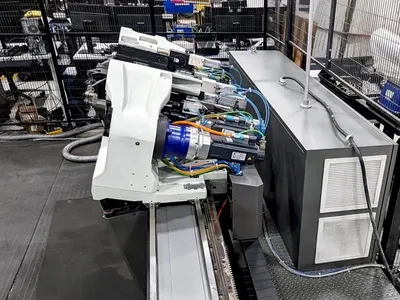

Independent End-Machining Carriage
CE Certified
All Available Manuals
