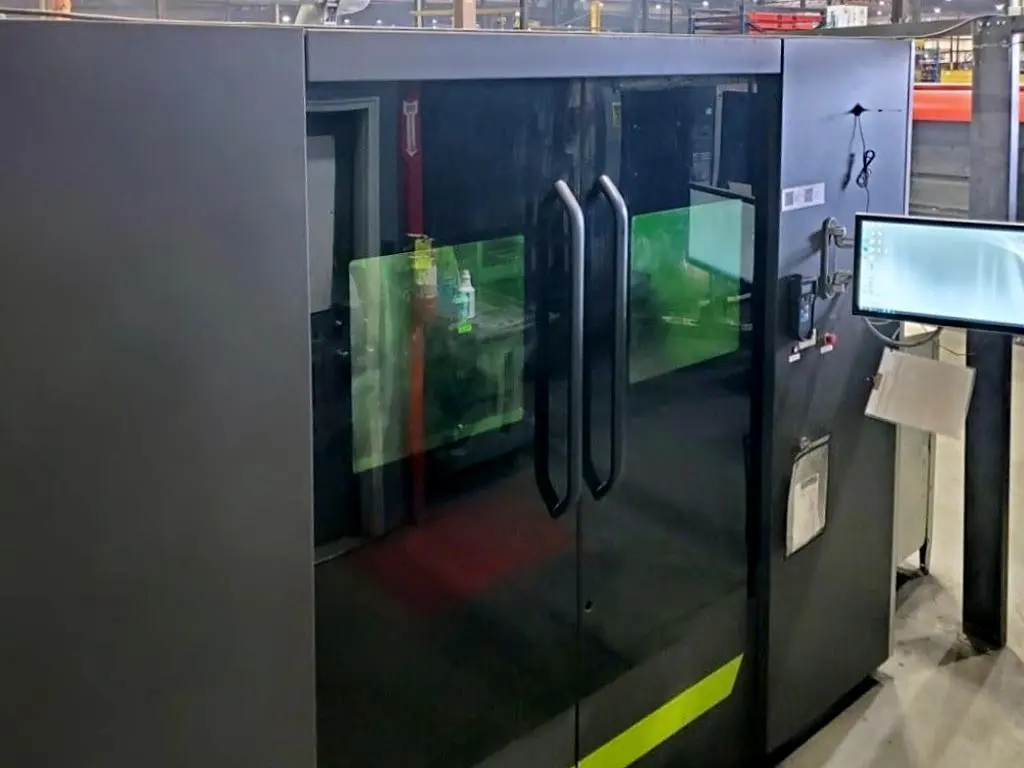

USED 2022 DNE LC3 6KW FIBER
Overview
Excellent condition with only 2,200 cutting hours.
Specs
Power: 6kW
Laser Type: Fiber
Sheet Size: 60" x 120"
Max. Pos. Speed X/Y: 3937 IPM
Max. Simultaneous Pos. Speed: 5511 IPM
Bilateral Repeatability of Pos. One Axis R: ±0.002 in
Bilateral Repeatability of Pos. One Axis M: ±0.004 in
Edge Detection Accuracy: ±0.019 in
Max Weight of Workpiece: 1,984 Lbs.
Table Changeover Time: 24 sec.
Polarization: Unpolarized
Wavelength: 1 µm
Pulse Frequency: 1 - 2500HZ
Max. Sheet Thicknesses Steel: 0.750"
Max. Sheet Thicknesses Stainless: 0.750”
Max. Sheet Thicknesses Aluminum: 0.750”
Max. Sheet Thicknesses Brass: 0.375”
Max. Sheet Thicknesses Copper: 0.375”
Total Electrical Consumption of System: 29kW
Shipping Weight: 28,200 Lbs.
Equipped With
Windows Based Controller
Max Photonics MFMC 6000W Pro Series Power Source
Dual Shuttle Table

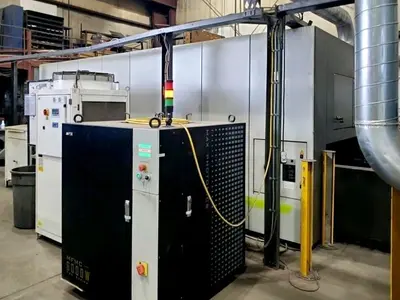

Chiller Cooling System

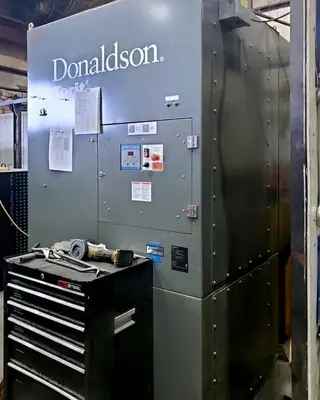

Donaldson Torit Fume Extraction System
