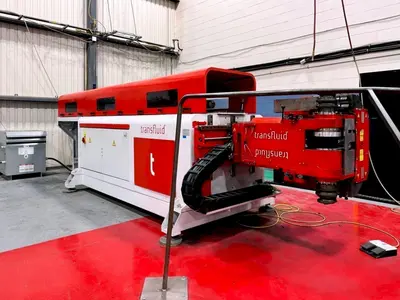

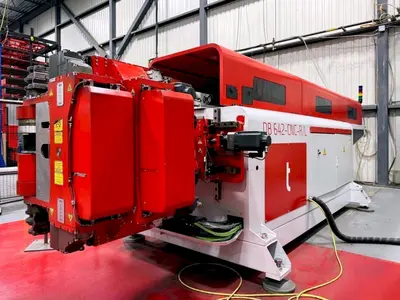

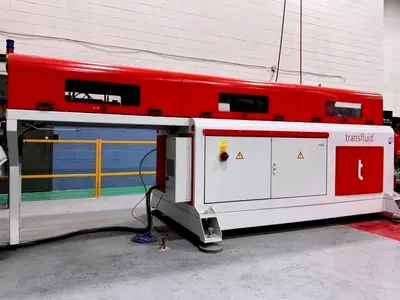

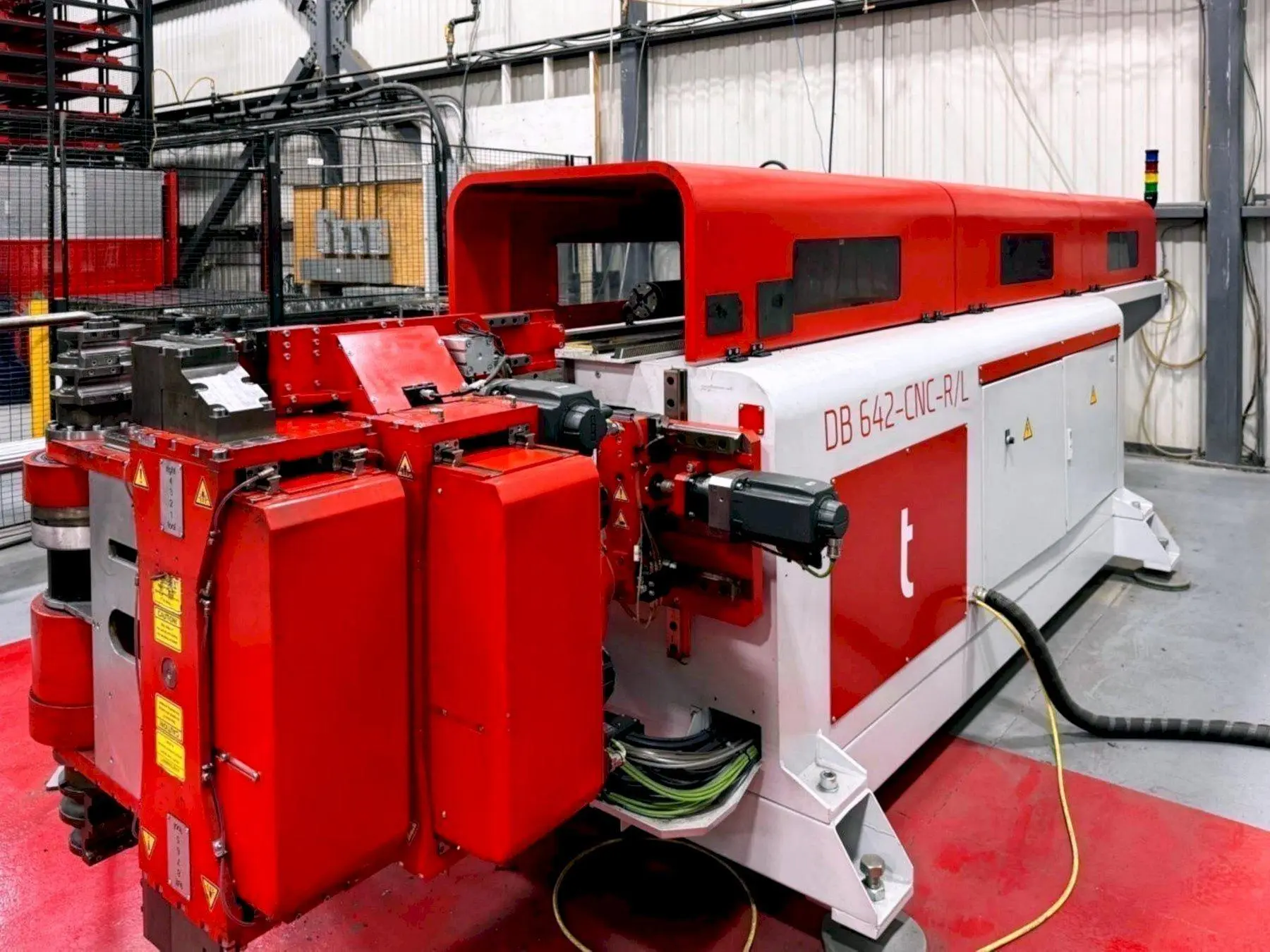

USED 2019 TRANSFLUID DB 642CNC
Overview

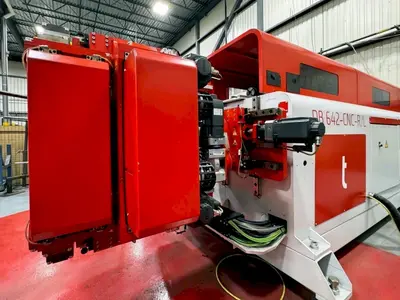

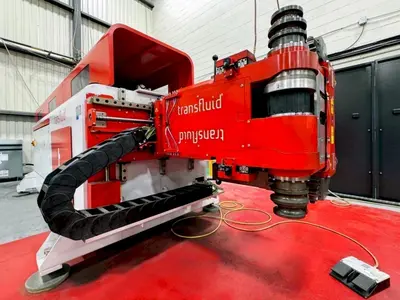

Bending Head For Right Hand/Left Hand with One Off-Set Bend Device
Specs
Round Tubing Mild Steel: 1.65" x 0.118"
Round Tubing Stainless Steel: 1.65" x 0.059"
Power Bending Axis: Servo / Electric
Number of CNC Axis: 11
Max Moment of Resistance: 3.4 cm3 (S235)
Bending Angle up To: 180° +10° Spring Back
Max Bending Time: 180°/Sec (Front Feed)
Speed of Front Feed: 62.99 IPS
Max Speed of Rotation: 450°/Second
Repetition Tolerance Bending: +/-0.05°
Repetition Tolerance Length: +/-0.0019"
Repetition Tolerance Rotation: +/-0.05°
Arbor Length/Usable Length: 120"
Max Radii: 6.6"
Bending Height: 45.27"
Boosting Force Length Positioning: 2.5 kN
Operating Voltage: 480 Volt / 60 Hz / 3 Ph / 30 KW 4
Approximate Dimensions: 296" x 63" x 63"
Approximate Weight: 12,100 Lbs.
Equipped With

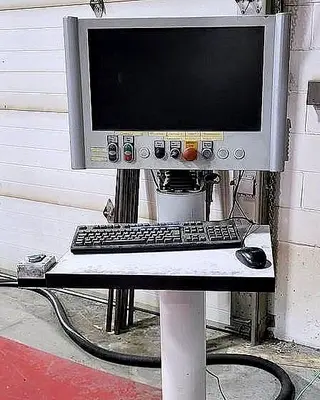

Transfluid CNC Control
Windows 10 Operating System
22" Widescreen Monitor

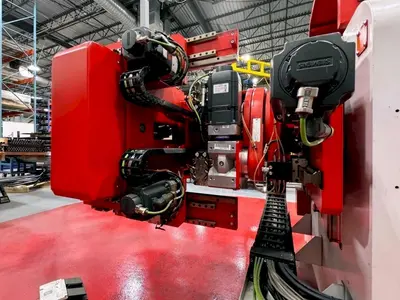

Servo Electric Power Bending Axis
Servo Electric Positioning of the Rotation Length
All Other Axis Servo Electric (Clamping/Mandrel/Pressure Die, Etc.)

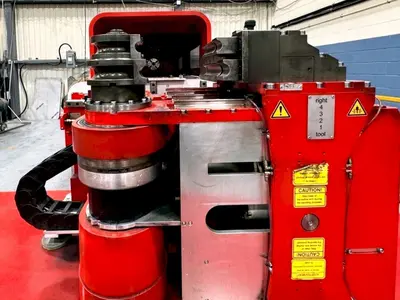

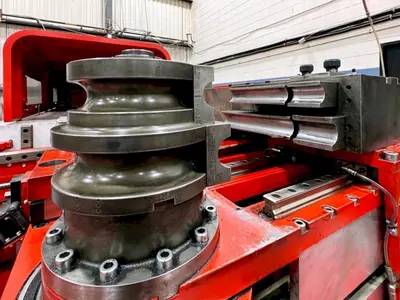

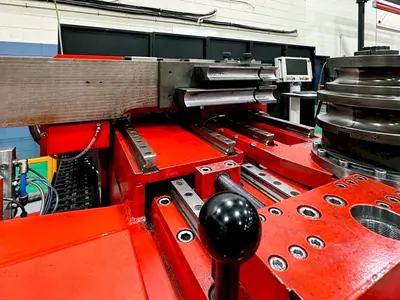

360° Bending Head For Right Hand/Left Hand - One Off-Set Bend Device
Horizontal And Vertical Bending Head
Automatic Programmable Mandrel Withdrawal
Carriage For Wiper Die
Boosting Function
Remote Diagnostics Option
Automatic Mandrel Lubrication
Air Conditioning for Electrical Cabinet
Operator Footswitch
