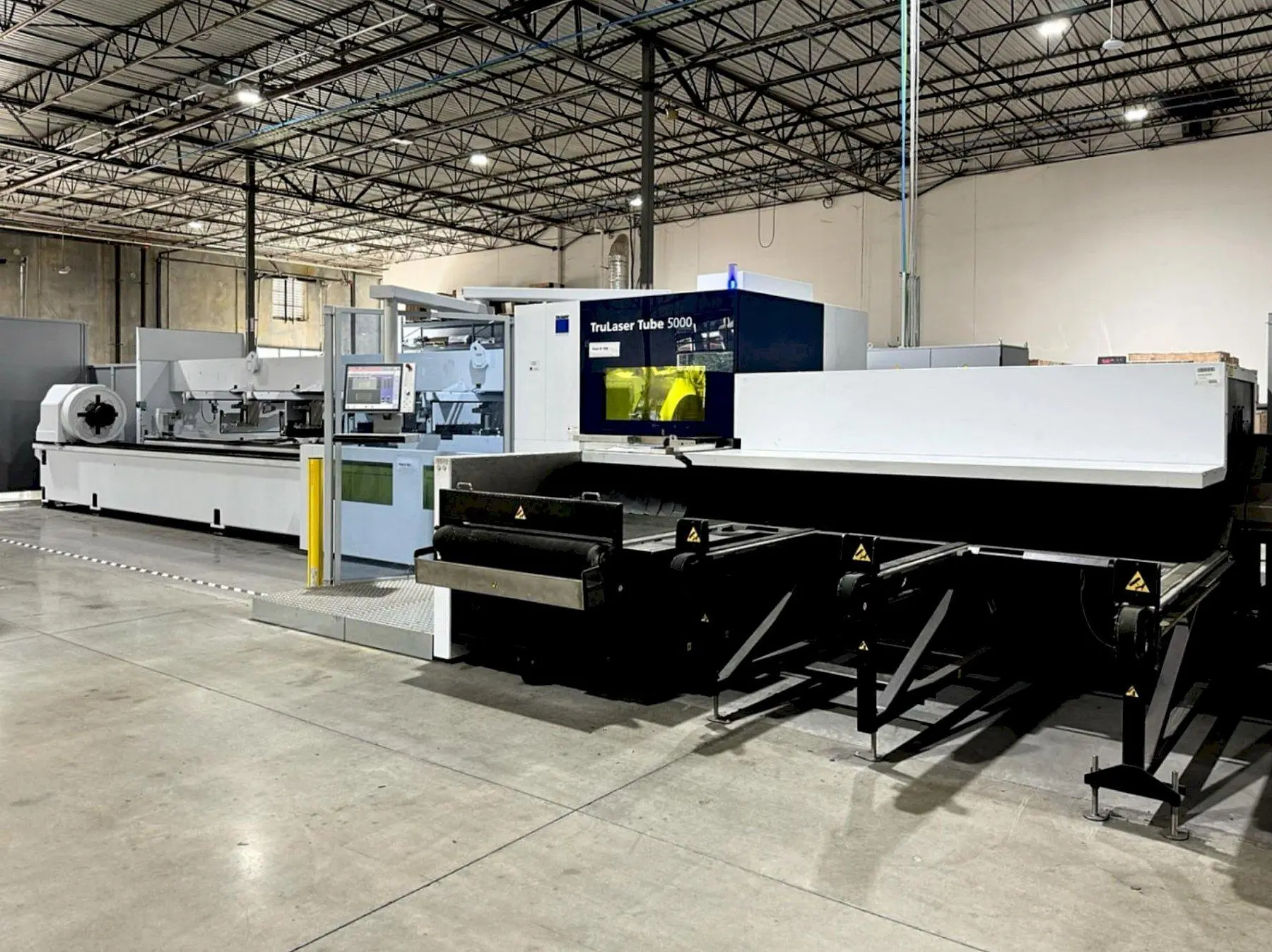

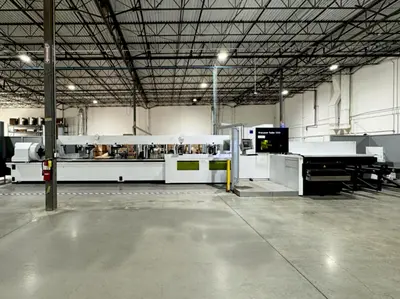

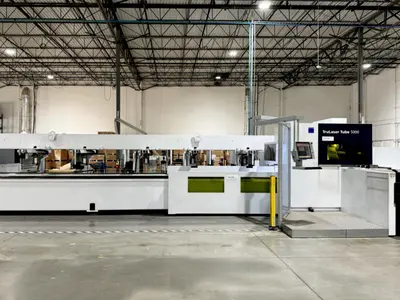

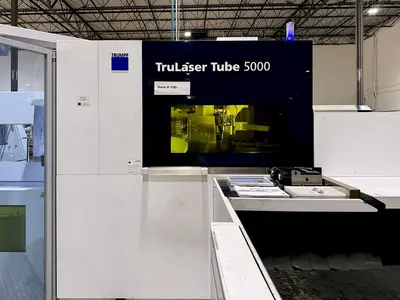

USED 2021 TRUMPF TRULASER TUBE 5000 FIBER
Overview
Excellent condition with only 2,283 cutting hours
Specs
Control: Sinumerik 840 D Sl
Max. Outer Diameter - Round Tubes: 6.0”
Max. Outer Diameter - Rectangular Tubes: 6.7”
Max. Raw Material Length - Auto Loading: 26’
Max. Finished Part Length: 10’ / 15’
Max. Weight (Workpiece): 13 Lbs/Ft./287 Lbs. Total
Power Source: TruDisk 4001 Fiber
Power Source Type: Fiber (Solid-State)
Output Power: 80 - 4,000 Watts
Max. Thickness Mild Steel: 0.40”
Max. Thickness Stainless Steel: 0.20”
Max. Thickness Aluminum: 0.19”
Max. Thickness Copper: 0.12”
Max. Thickness Brass: 0.20”
Machine Weight: 39,100 Lbs.
Equipped With
Sinumerik 840 D SL Control

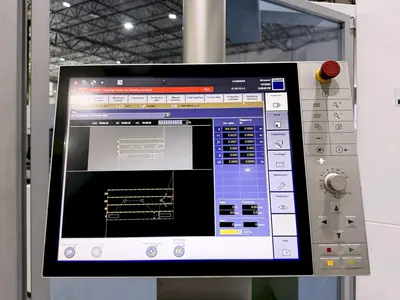

Ergonomic Touchscreen

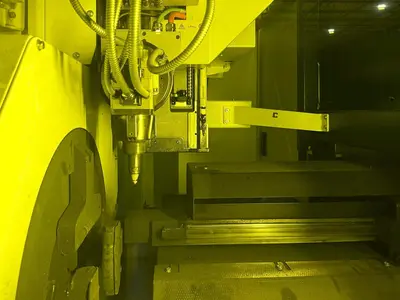

Universal Cutting Unit
Technology Package BevelCut/
RapidCut
Seamline Tube With Inner/Outside Detection
Smart Profile Detection
PierceLine (Optimized Piercing Feature)
Trumpf TruDisk 4001 (4kW) Solid-State Laser Power Source

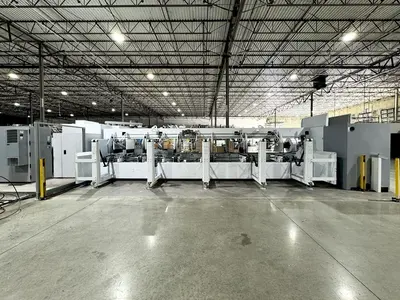

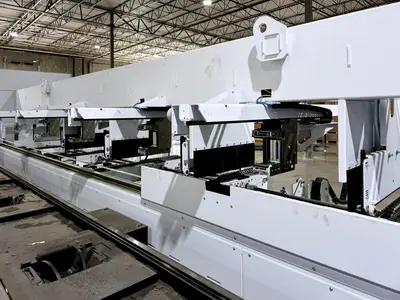

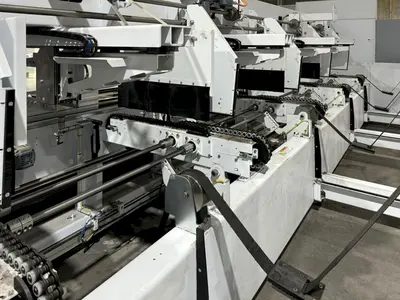

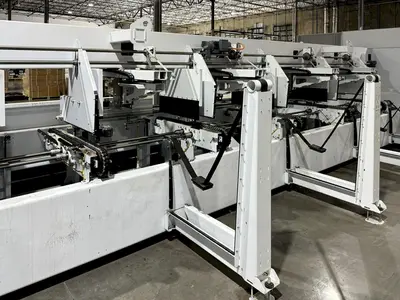

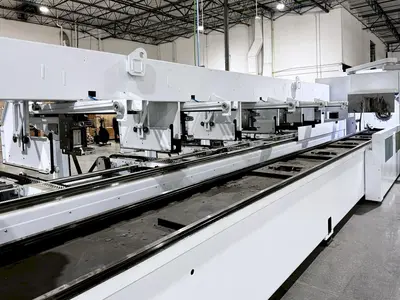

Loadmaster Tube 8.0 M W/ Bundle Support
Automatic Stepped Rollers
Guide Rollers, Round/Rectangular Tubes

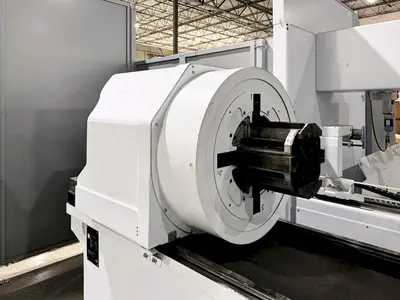

Self-Centering Collet Chuck
Finished Part Deposit
Conveyor Tables
Programmable Cutting Gas Pressure
Controlline /
Focusline /
Nitroline
Work Area Illumination
Remote Support Interface

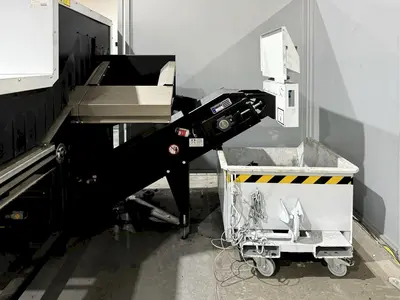

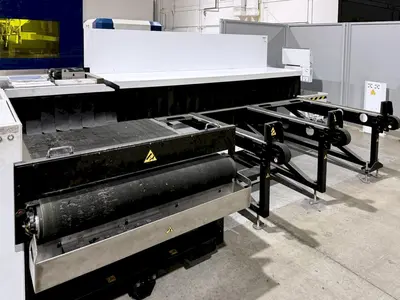

Hennig Chip Conveyor

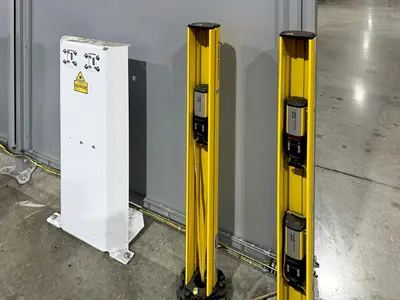

Leuzo MLD 500 Multi-Beam Light Barriers

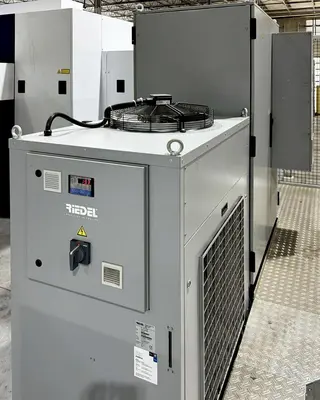

Riedel RL 13/0 TR.00 Chiller

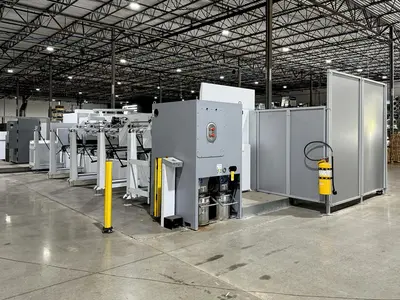

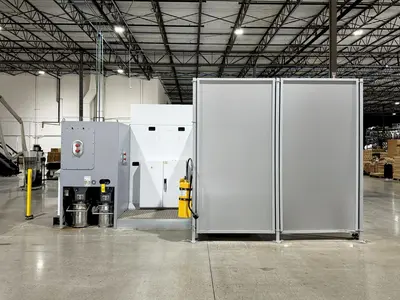

Camfil MF-L 25/5/1 Dust Extractor
