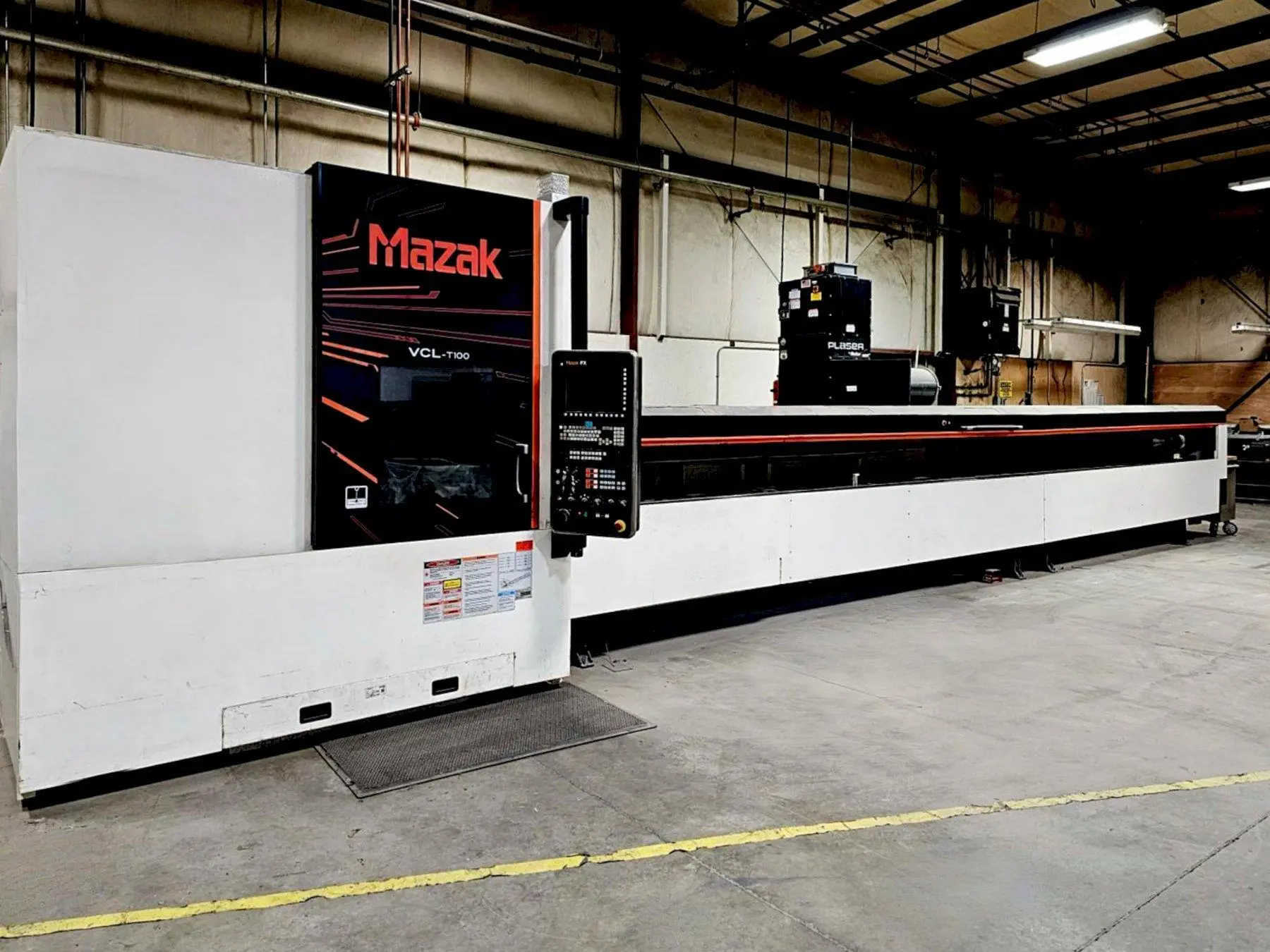

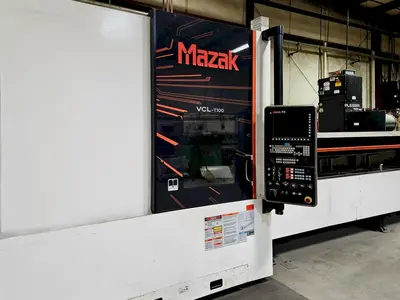

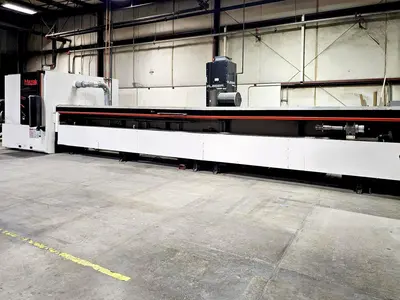

USED 2017 MAZAK VCL-T100 NLIGHT FIBER

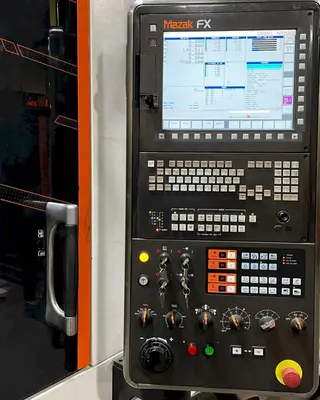

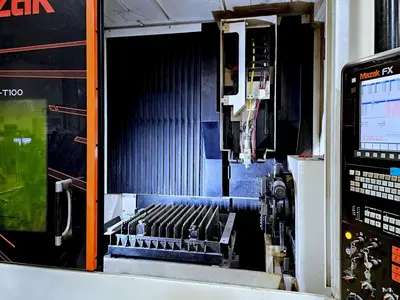

Control: Mazak FX 3li CNC
CPU: 64 Bit
Display Screen: 15” Color LCD
Number of Control Axes: 3
Position Detection System: Encoder
Min. Command Unit: 0.0001"
Program Input System: EIA/ISO
Laser Type: Fiber

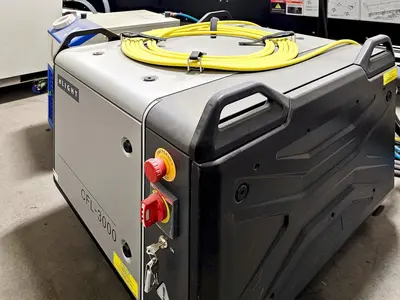

Power Source: nLIGHT CFL 3000
Laser Output: 3.0 kW
Material Shape: Round, Square & Flat Sheets
Max Workpiece Length Loading: 288”
Max Workpiece Length Auto Unloading: 40” (Expandable)
Max Workpiece Length Manual Unloading: 70" (Expandable)
Max Material Diameter Round: .5” to 4”
Max Material Diameter Square: .5” to 3”
Max Material Diameter Flat: 24”x 20“
Max Pounds Per Foot (Tube): 9.5 lbs/ft
Max Pounds Per Foot Flat Sheet: 35 lbs
Stroke X Axis: 172.4”
Stroke Y Axis: 19.8”
Stroke Z Axis: 11.8”

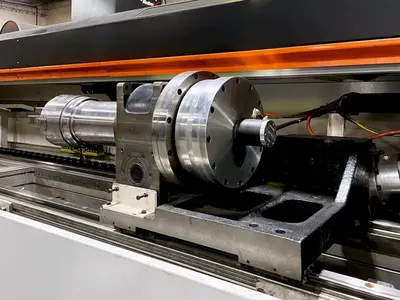

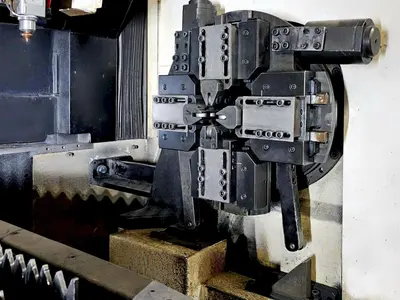

Height of Chuck Center: 45.5”
Max Thickness Mild Steel: 0.250”
Max Thickness Stainless Steel: 0.250”
Max Thickness Aluminum: 0.250”
Rapid Travel Speed X Axis: 3,248 ipm
Rapid Travel Speed Y Axis: 944 ipm
Rapid Travel Speed Z Axis: 944 deg/min
Total Electrical Requirement: 39 kVA
Installation Dimensions: L 348” x W 164”
Machine Dimensions: L 312 x W 117” x H 103”
Machine Unit Weight: 20,900 lbs
