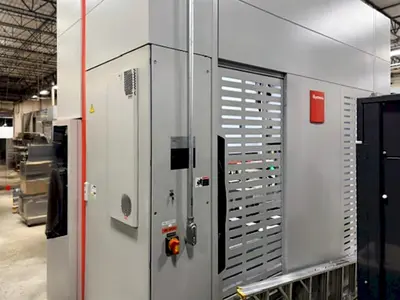

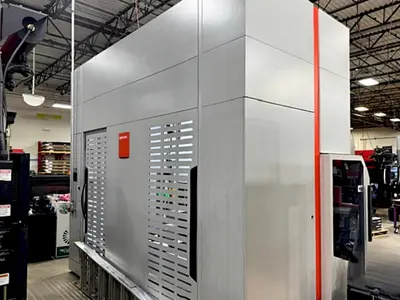

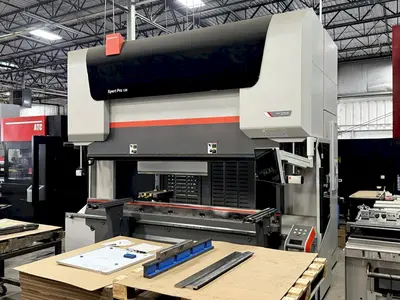

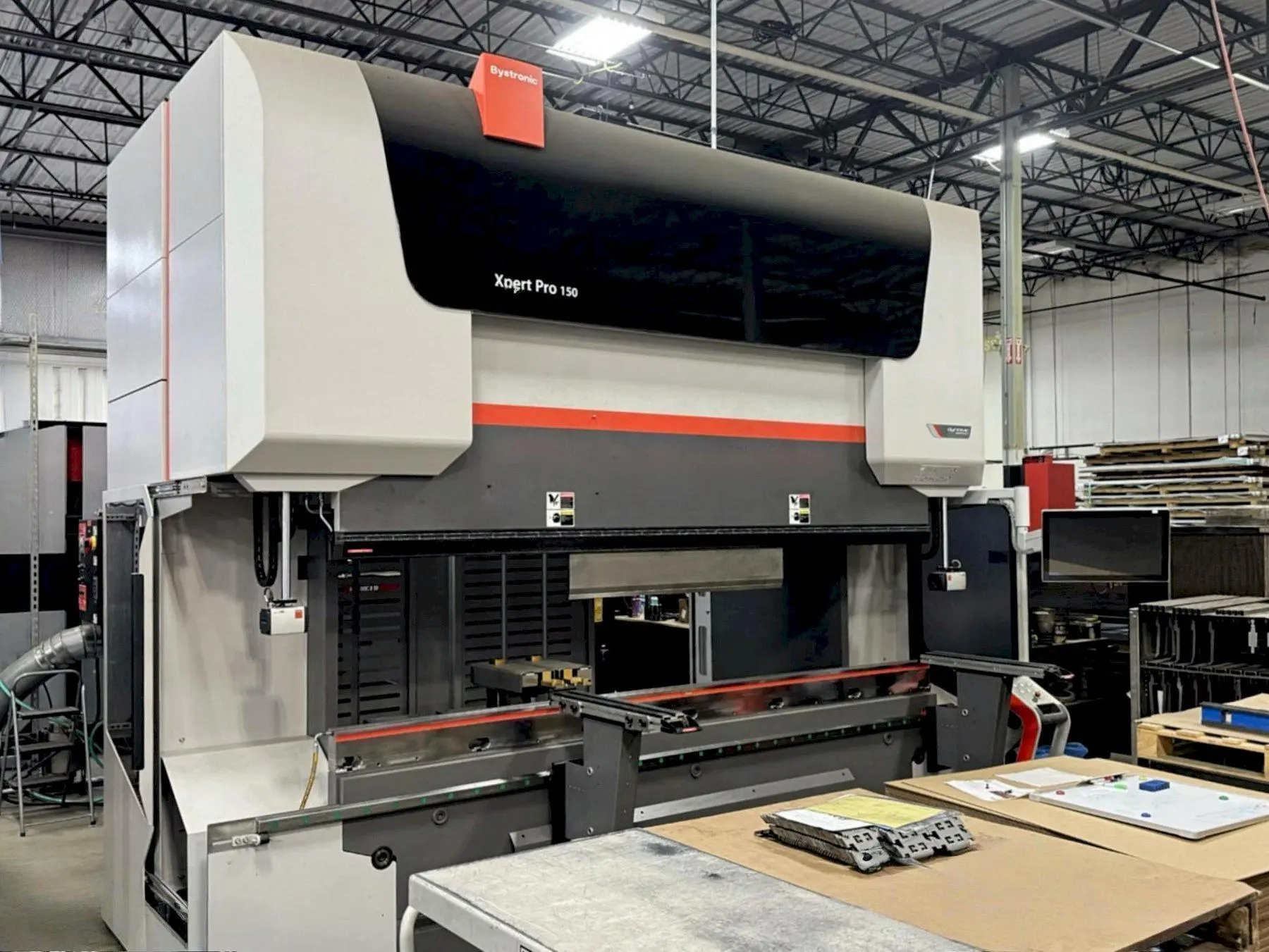

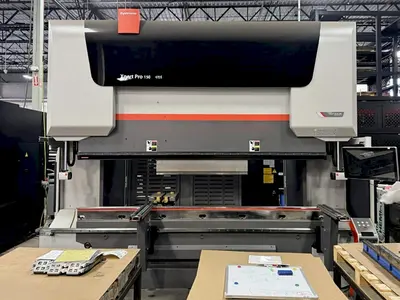

USED 2023 BYSTRONIC XPERT PRO 150/3100
Overview
Like New Condition with very little use.
Specs
Control: Bystronic CNC
Tonnage: 150
Bending Length: 122.05”
Standard Stroke: 9.8”
Open Height: 25.20”
Distance Between Side Frames: 108.26”
Throat: 15.74”
Table Width: 2.36”
Backgauge: 6-Axis
Max. Back Gauge Range X-Axis: 41.33”
X-Axis Travel: 23.62”
X-Axis Speed (Up To): 1536 IPS
X-Axis Accuracy: .0016”
R-Axis Travel: 9.84”
R-Axis Speed (Up To): 473 IPS
R-Axis Accuracy: .004”
Z-Axis Travel: 74.80”
Z-Axis Speed For (Up To): 3544 IPS
Z-Axis Accuracy: .004”
Y-Axis Accuracy: .00016”
Oil Capacity: 300 L
Operating Voltage V AC: 3 PH 480
Frequency Hz: 60
Control Voltage V DC: 24
Weight: 27,238 Lbs.
Dimensions: L 236” x W 177” x H 133”
Equipped With

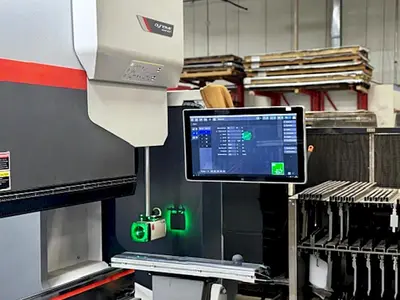

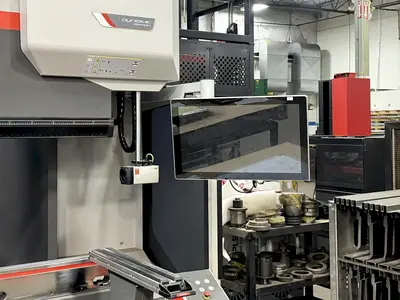

ByVision CNC Bending Control

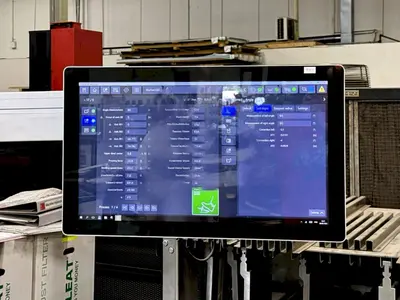

22” Full HD Display & Touch Technology
Control Console With Foot Switch
6-Axes CNC Back Gauge
(2) Power Fingers (Z1-Z2)
Dynamic Crowning
Pressure Reference Technology
Dual Sheet Supports
Fast Bend G2 Safety System
Electrically Monitored Side Fences
Rear Protection Devices

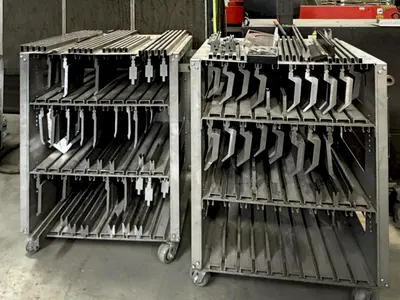

All Tooling Pictures
