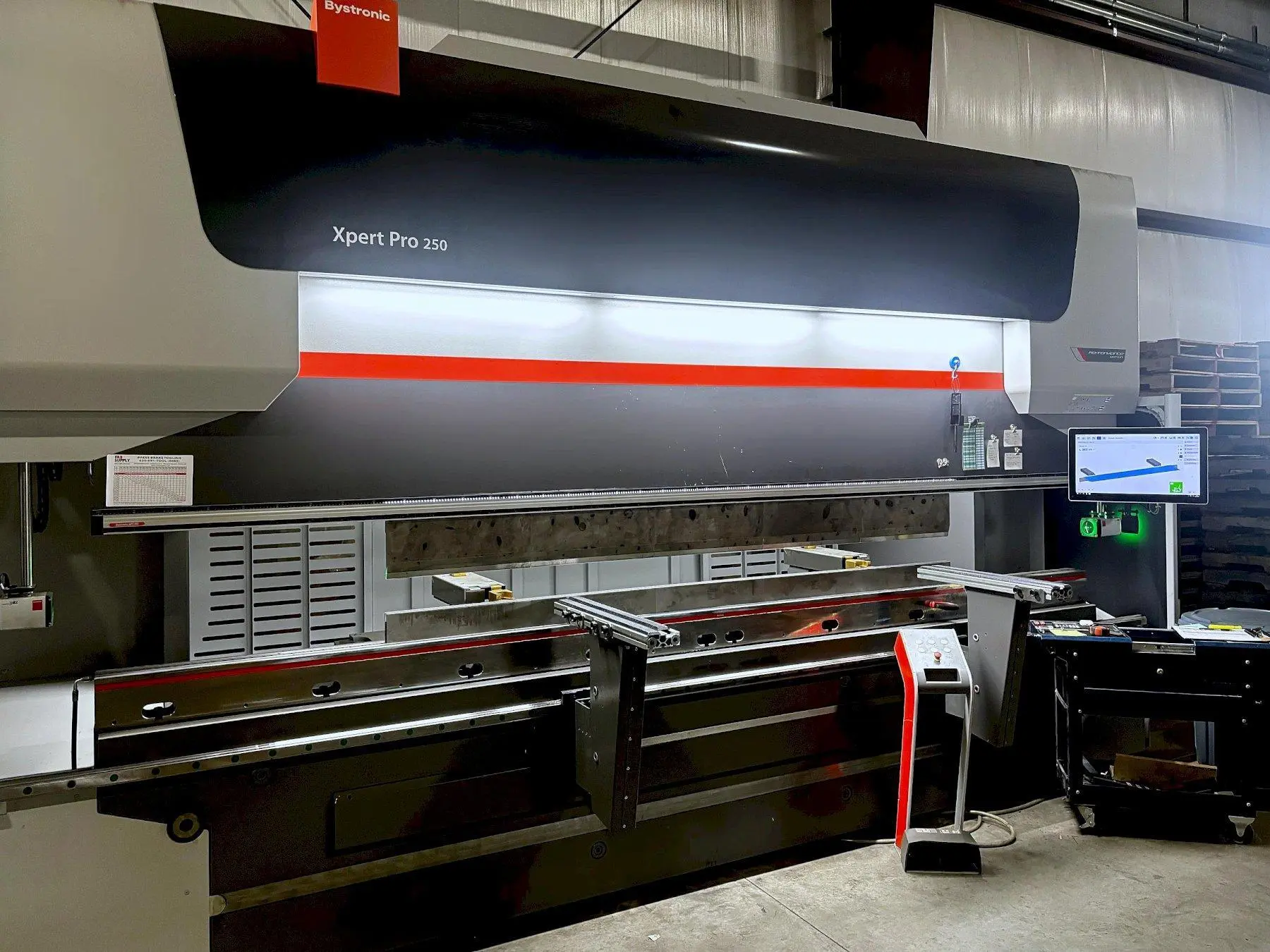

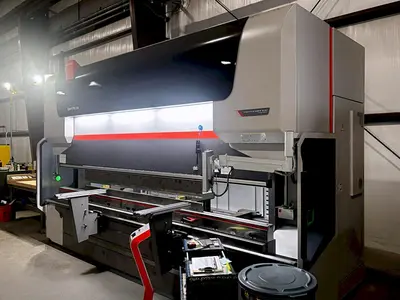

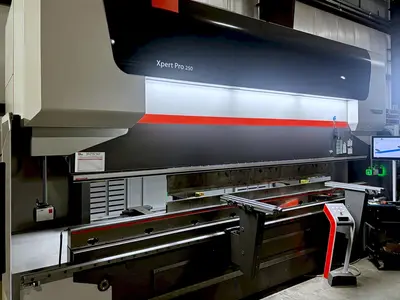

USED 2023 BYSTRONIC XPERT PRO 250/4300
Overview
Like New Condition with very little use.
Specs
Control: Bystronic CNC
Tonnage: 280 (US)
Bending Length: 166.93”
Standard Stroke: 9.84”
Open Height: 25.19”
Distance Between Side Frames: 147.7”
Throat: 15.80”
Table Width: 2.36”
Max. Back Gauge Range X-Axis: 41.33”
X-Axis Travel: 23.62”
X-Axis Speed (Up To): 1536 IPS
X-Axis Accuracy: .0016”
R-Axis Travel: 9.90”
R-Axis Speed (Up To): 473 IPS
R-Axis Accuracy: .004”
Z-Axis Travel: 114.17”
Z-Axis Speed For (Up To): 3544 IPS
Z-Axis Accuracy: .004”
Y-Axis Accuracy: .00016”
Oil Capacity: 123 L
Operating Voltage V AC: 3 PH 480
Frequency Hz: 60
Control Voltage V DC: 24
Weight: 44,753 Lbs.
Dimensions: L 206” x W 79” x H 120”
Equipped With
ByVision CNC Bending Control
22” Full HD Display & Touch Technology
Control Console With Foot Switch
ByVision Bending User Interface

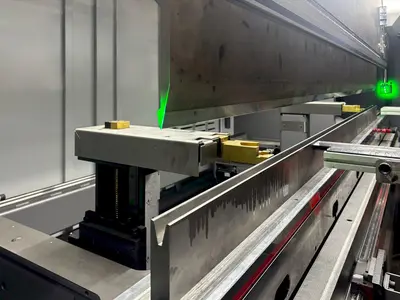

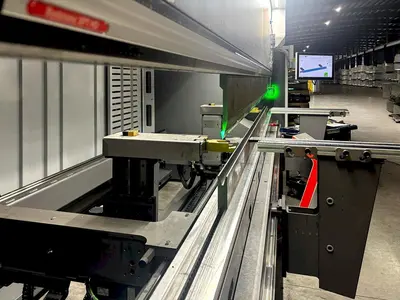

Multi Axes CNC Back Gauge
Dynamic Crowning
Pressure Reference Technology
LAMS Angle Measuring System
Dual Sheet Supports
Fast Bend G2 Safety System
Electrically Monitored Side Fences
Rear Protection Devices
