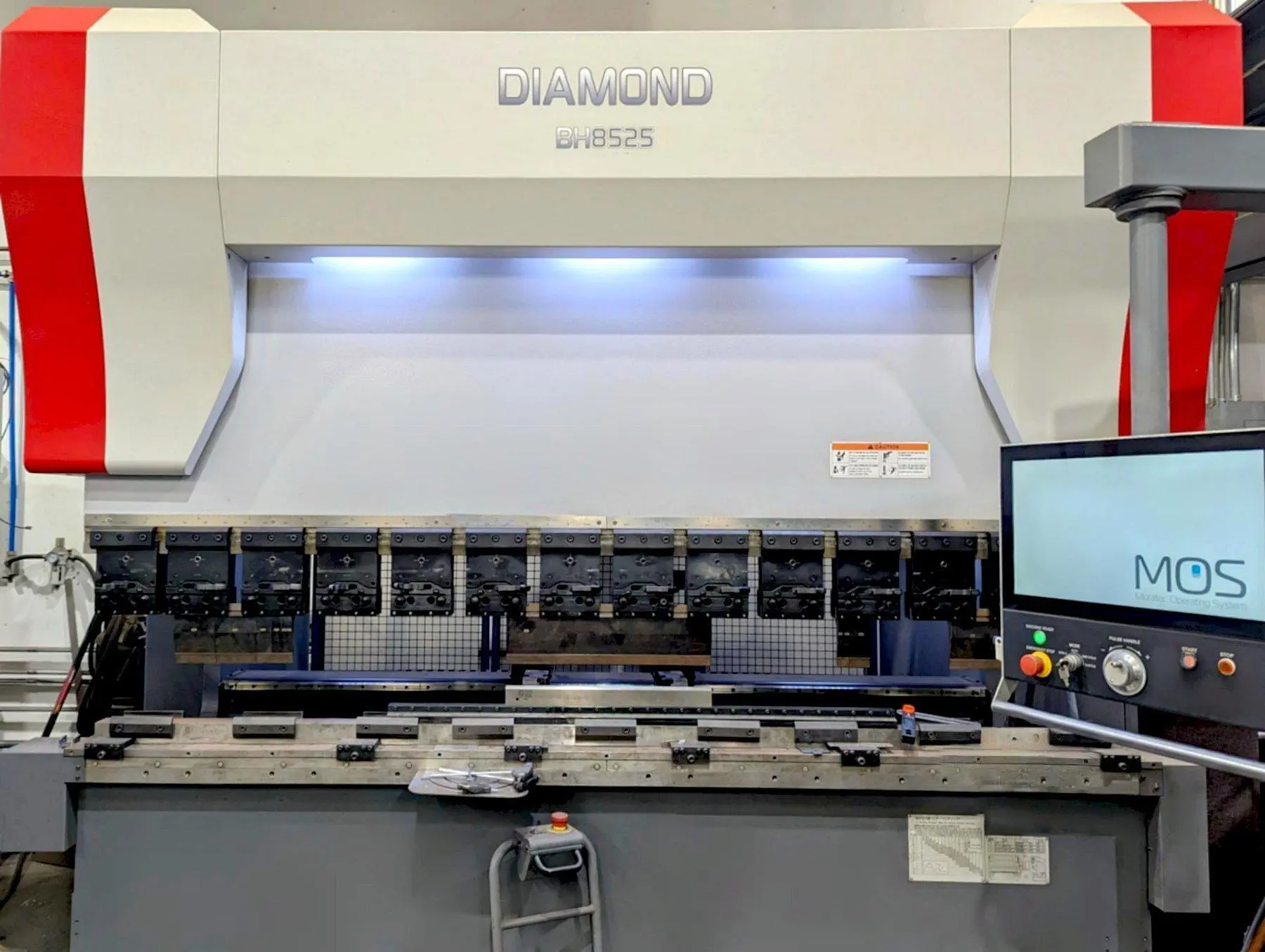

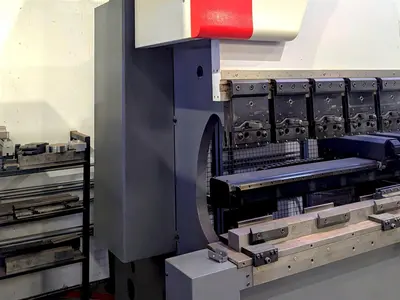

USED 2018 MITSUBISHI DIAMOND BH8525
Overview
Well-maintained hydraulic press brake in excellent condition.
Specs
Press Force: 94 U.S. Tons
Bending Length: 102”
Daylight w/o Punch Holders: 20.8”
Daylight w/ Standard Holders: 14.9”
Punch Holder Height: 5.9”
Distance Between Frames: 86.6”
Ram Stroke: 9.84”
Gap Depth: 15.7”
Table Height: 35.4”
Table Width: 6.7”
Ram Speed Approach: 472 IPM
Ram Speed Bending: 23.6 IPM
Ram Speed Return: 472 IPM
Ram Speed Ram Cycles: 1,560
Ram Repeatability: 0.00004”
Back Gauge X Distance: 33.5”
Backgauge Speed Y-Axis: 2,000 IPM
Backgauge Speed X-Axis: 2,000 IPM
Backgauge Speed Z-Axis: 475 IPM
Back Gauge Repeat Accuracy: 0.0002”
R Axis Travel: 7.8”
Power (Voltage): 208
Total Power: 9 KVA
Weight: 15,400 lbs.
Equipped With

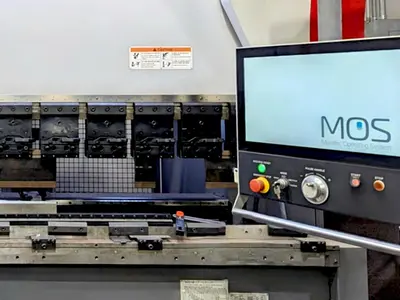

Mitsubishi CNC Control
22” Multi-Touchscreen LCD Display
Microsoft Windows Operating System
High-Speed Backgauge
Dual Telescoping Back Gauge Fingers
Crowning System
Automatic Thickness Detection
Mitsubishi Servo Amplifiers & Motors
Dual Drive Hybrid Mechanism
Mitsubishi Components
Safety Electronics

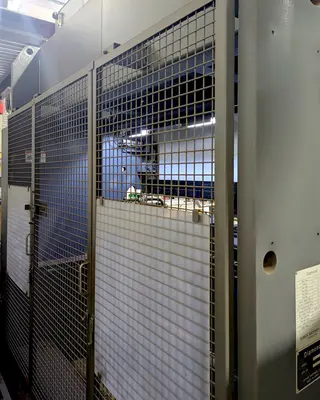

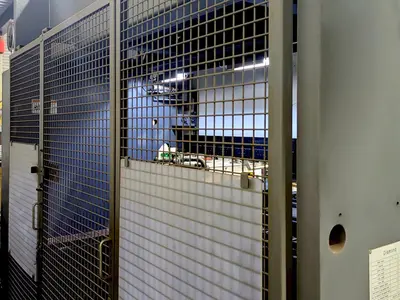

Safety Interlocked Rear Gate
Movable Foot Pedal
Punch Holders
