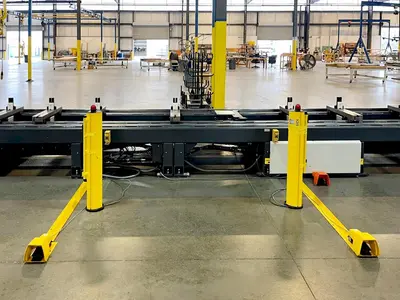

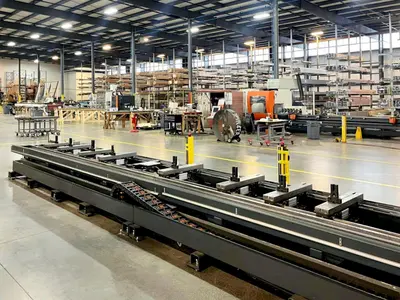

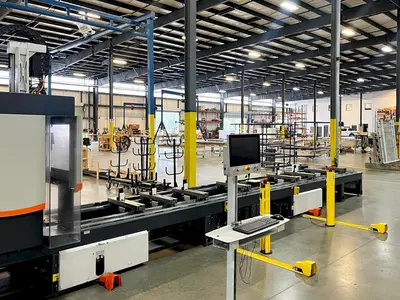

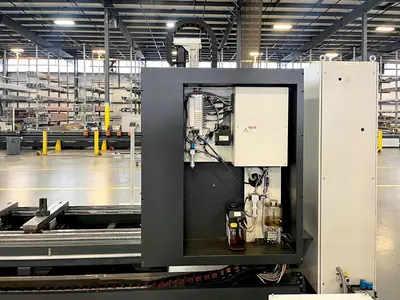

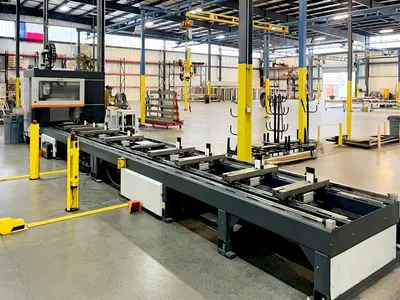

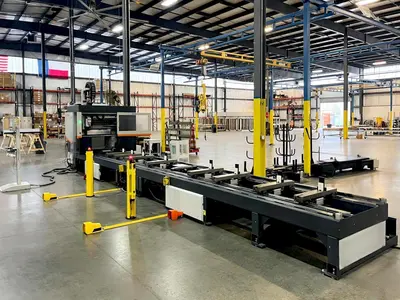

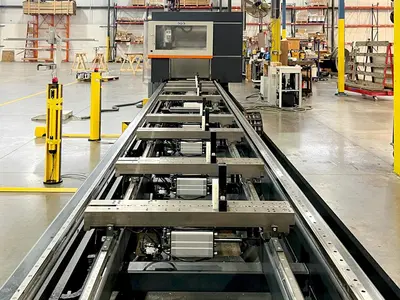

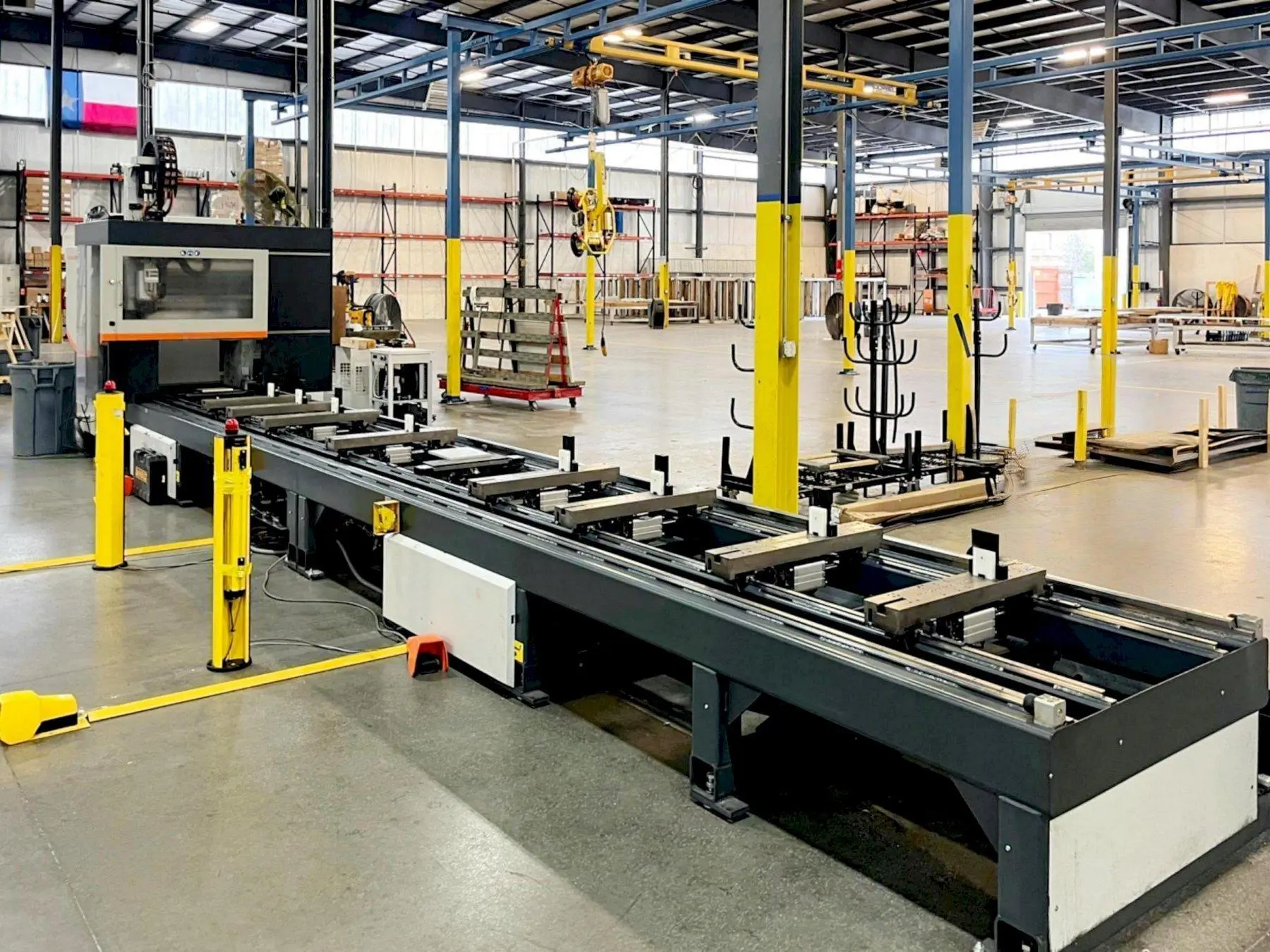

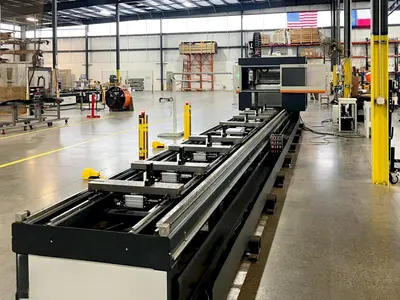

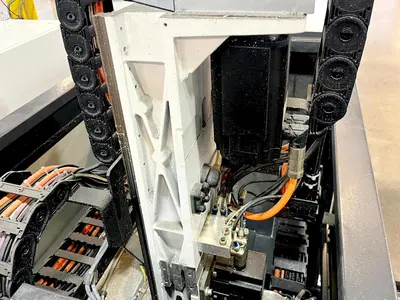

Elumtech SBZ 140 4-Axis Profile Machining Center
Overview
Specs
Max. Machining Length w/o Profile End Machining: 303.93”
Max. Machining Length w/ Profile End Machining: 299.21”
Traverse Path X-Axis: 303.93” / Vmax. 2,480 IPM
Traverse Path Y-Axis: 33.26” / Vmax. 2,362 IPM
Traverse Path Z-Axis: 24.40” / Vmax. 2,362 IPM
A-Axis Pivoting Range: -90° 0° +90°

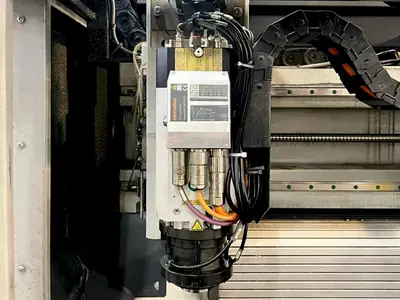

Spindle Speed: Max. 24,000 RPM
Spindle Power Output: 11 kW S1
Direction of Machining: Top / Front / Rear / (Left/Right)
Positioning Accuracy: .0039”
Tool Holder: HSK-63F

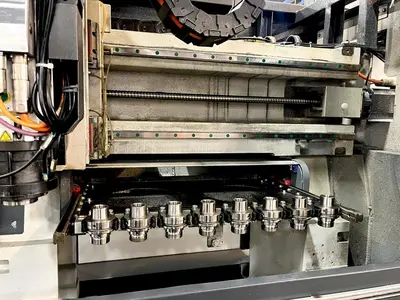

Tool Changing: 8 Tools
Tool Tray Positions (Automatic Magazine): 8
Clamp Positioning: Automatic
Clamps: 8

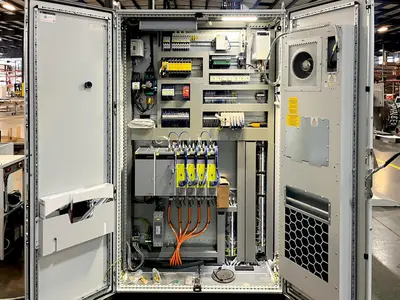

Power Supply: 400 V, 3~, 50 Hz, 63 A
Dimensions: (L) 36.87’ x (W) 11.15’ x (H) 9.68’
Weight (Approx.): 16,314 Lbs.
Equipped With
Automatic Clamping Device

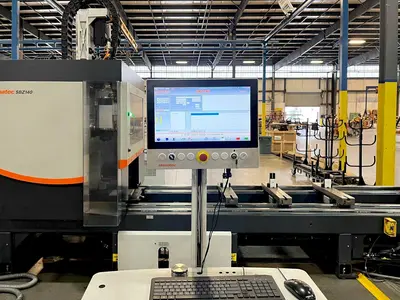

Touch Screen Windows Operating System
USB Ports and Network Connection

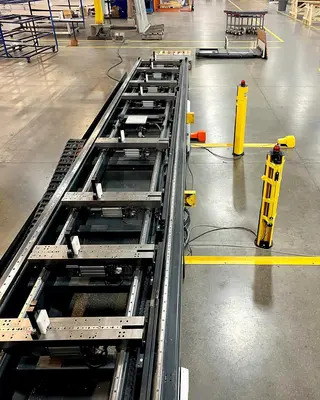

Light Barrier for Operator Protection
Horizontal Material Clamps

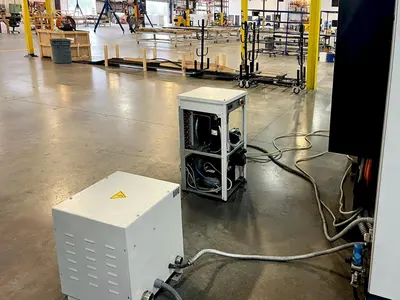

Coolant System
