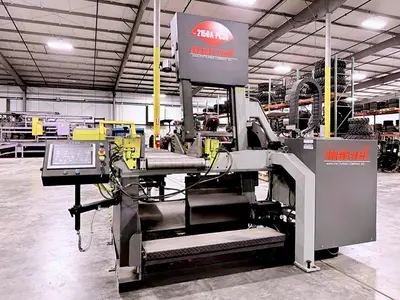

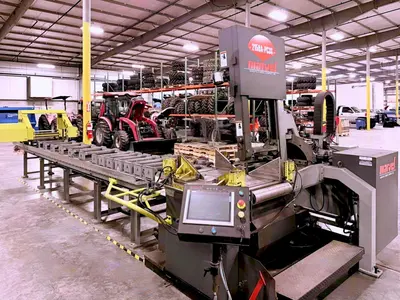

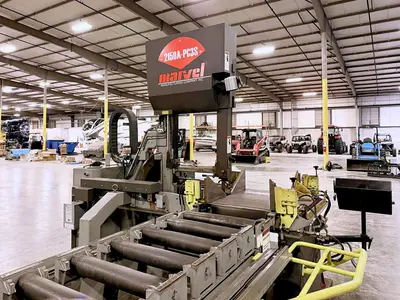

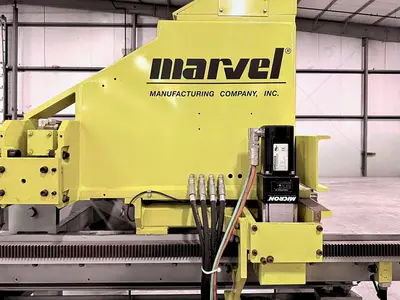

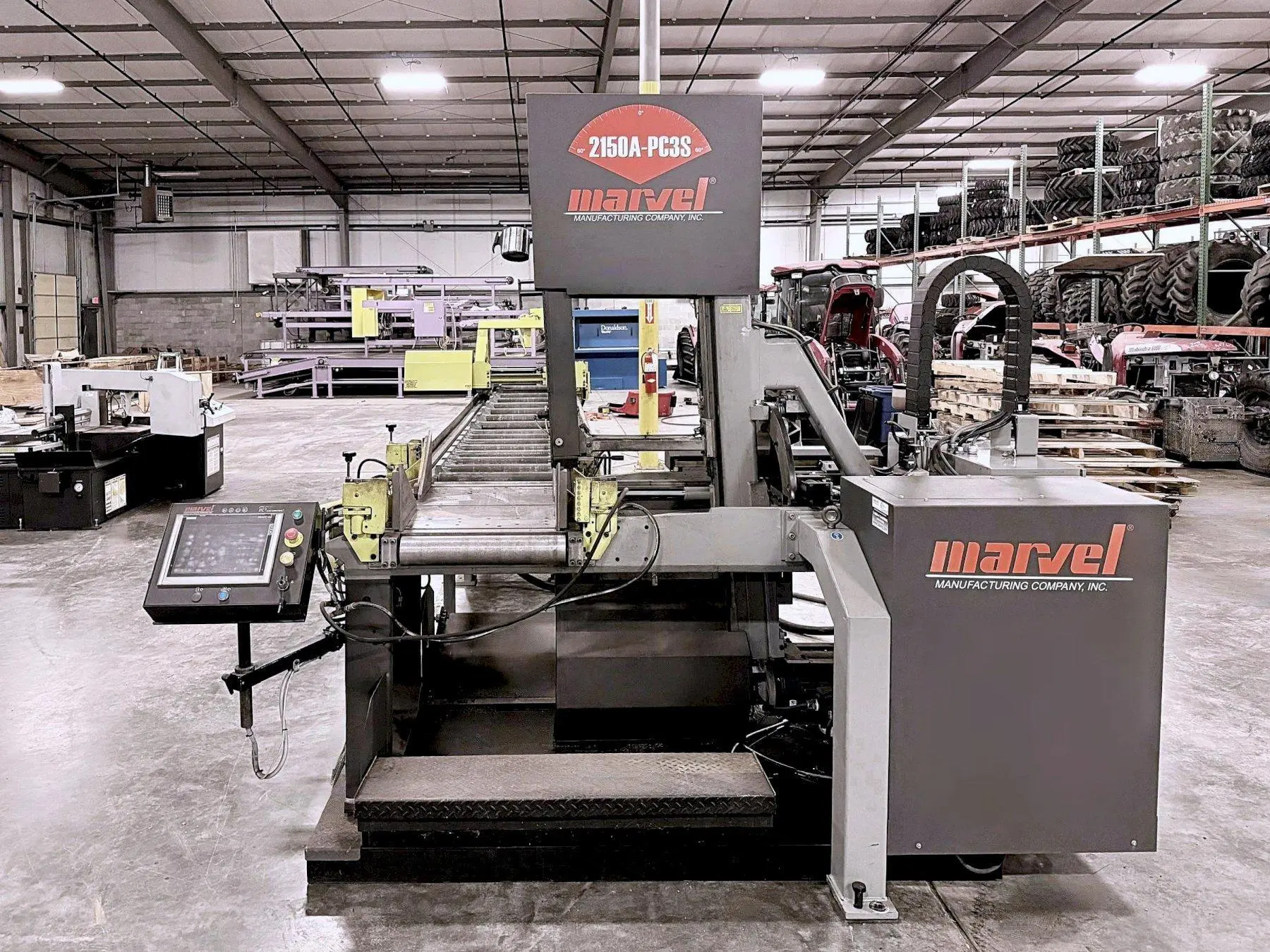

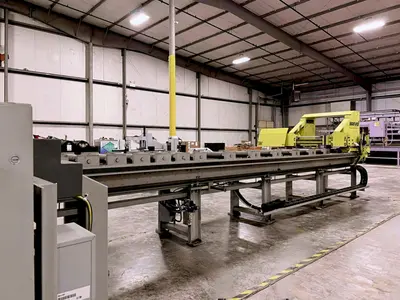

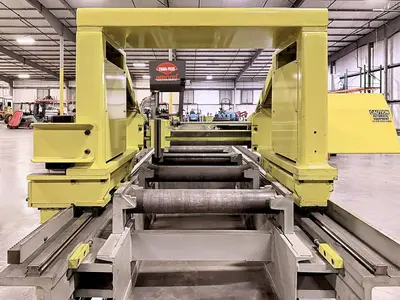

USED 2017 MARVEL 2150A-PC3S

Industries Most Popular Automatic Vertical Tilt-Frame Band Saw

Control: Marvel PC3 CNC Control
Nominal Rectangles: 20″ X 25″
Nominal Rounds: 20″
Blade @ 45o Rectangles: 20″ X 17″
Blade @ 45o Rounds: 17″
Blade @ 60o Rectangles: 20″ X 11.25″
Blade @ 60o Rounds: 11.25″
Max. Material Feed: 18'
Speed Range (Infinitely Variable): 30 to 500 FPM
Motors Main Drive: 7.5 HP
Blade Drive: Electric w/ Sensorless Vector Control

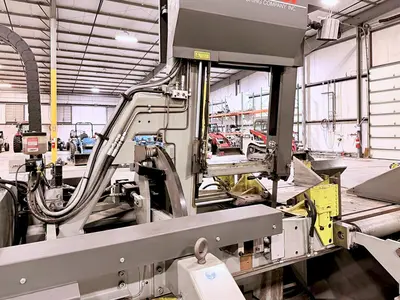

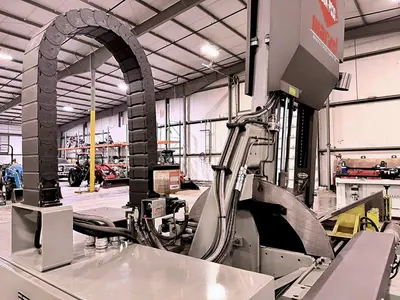

Column: Tilting for Miter Cutting up to 60° L/R of Vertical
Feed: Direct Force Sensing Electric Ball Screw Feed
Blade: (L) 17′ 6″ x (W) 1.25″
Blade Guides: Carbide & Ball Bearing Roller Guides

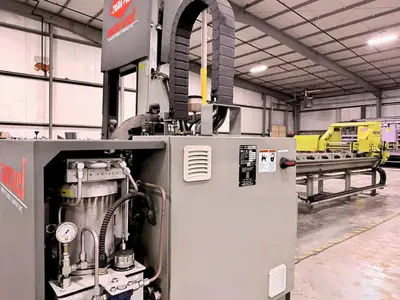

Blade Tension: Hydraulically Controlled - 45,000 PSI. Max.
Upper Blade Guide Arm: Hydraulically Positioned & Locking

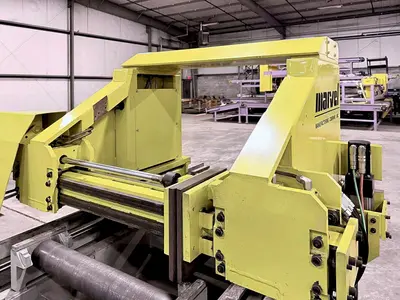

Material Index Mechanism: Shuttle Vise
Vises: Hydraulic, Full Stroking w/ 9-1/2” High x 15” Wide 60o Faceplates
Coolant System: Built-In w/ Flood System (60 Gallon Capacity)
Work Load Capacity: 8,000 Lbs.
Work-Rest Rollers: (2) Turned Ball Bearing Rollers, Entry/Discharge Side
Auto Bar Feed Stroke Length: 48”
Auto Bar Feed Indexing Speeds: Up To 60 Ft./Min
Auto Bar Feed Creep Speeds: Up to 33 In./Min.
Work Entry: Left-To-Right
Cutting Fluid: Two (2) Gallons Soluble Oil
Hydraulic Oil: 10 Gallons
Bandsaw Blades: One (1) Welded-Edge Blade
Table Height (Above Floor): 40″
Power Requirements: 460V/3Ph/60Hz
Machine Dimensions: (W) 94.7″ x (L) 99.2″ x (H) 90.8″ (Feed Table Not Included)
Weight (Base Machine & Index Tablet): 7,800 Lbs.

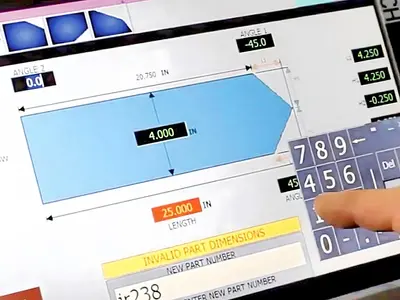

Marvel PC3 Programmable Control w/ Touch Screen
18’ Extended Feed Systems
Tilting Column for Miter Cutting up to 60° L & R of Vertical
0° to 3° Canted Column Blade and Direct Blade Drive
Hydraulic Upper Blade Guide Arm
Blade Guide with Self-Tensioning Design
Hydraulic Vises
Automatic Bar Feed with indexing
Built-In Coolant Flood System
(2) Work-Rest Rollers
7.5 HP Main Drive Motor

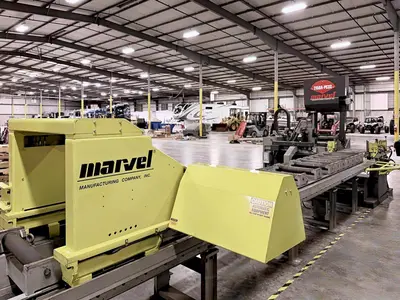

Heavy-Duty Shuttle Conveyor

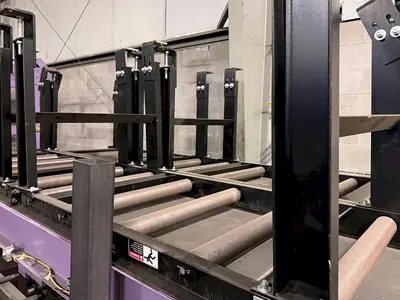

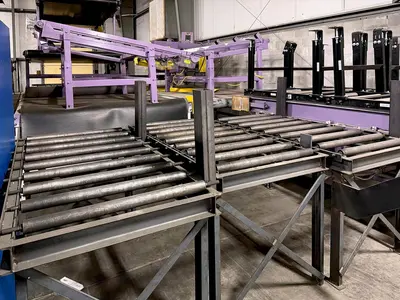

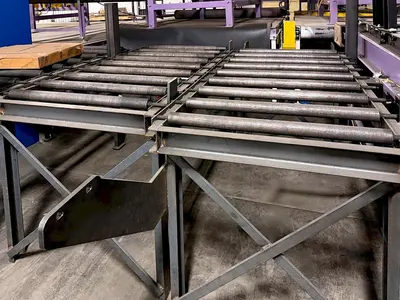

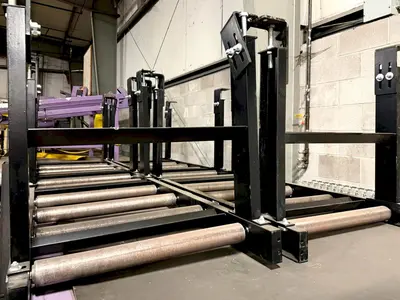

Finished Part Roller Tables (Pictured But Not Setup)
