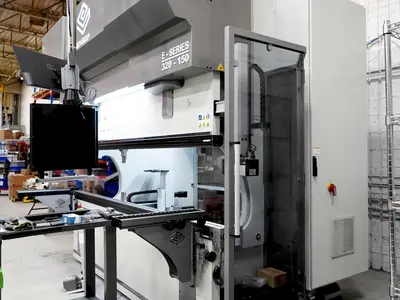

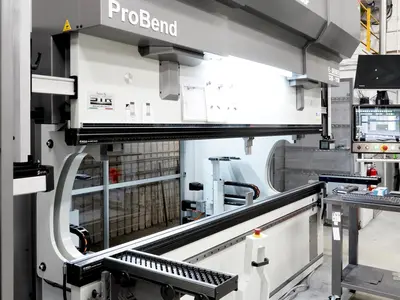

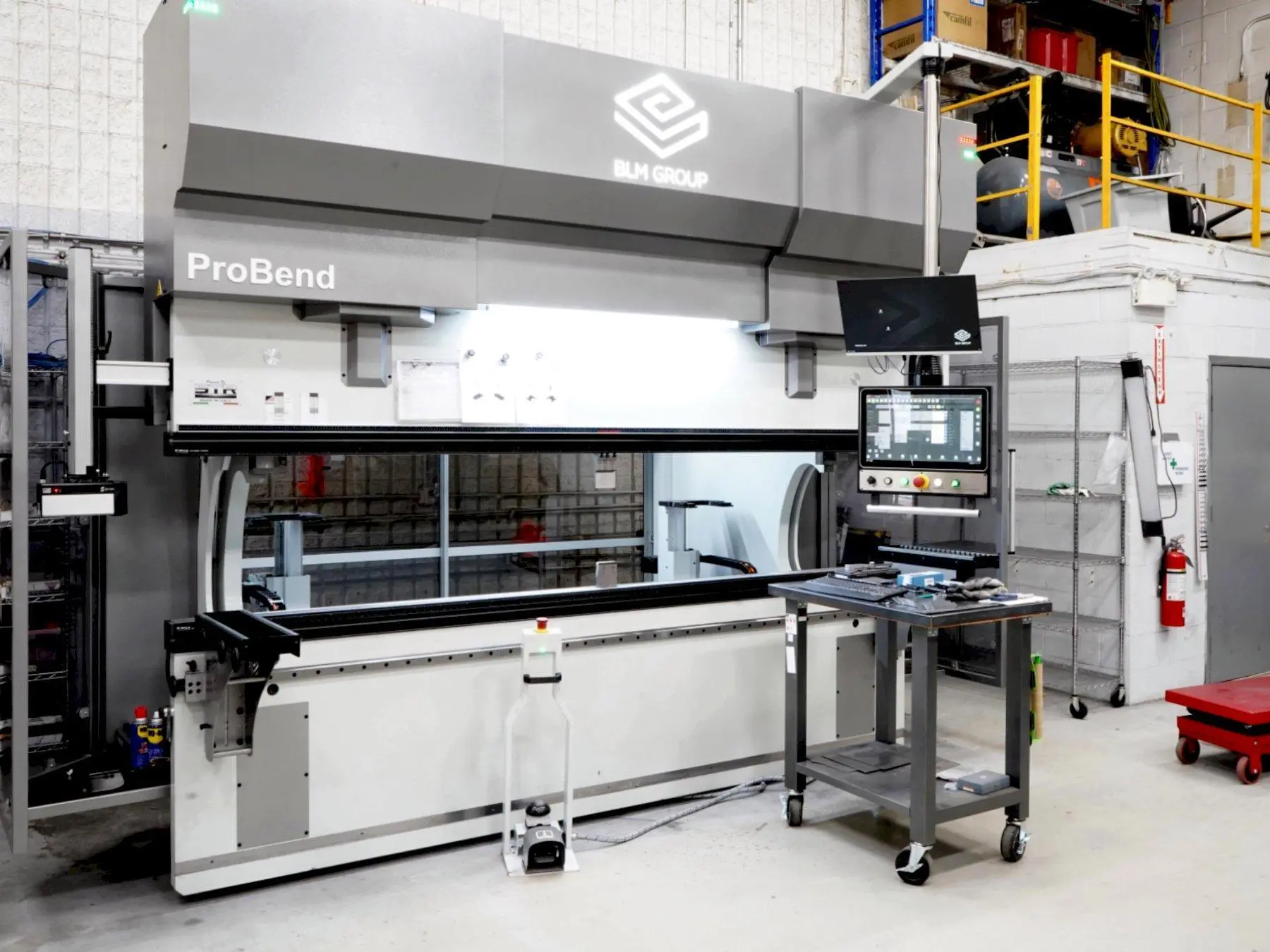

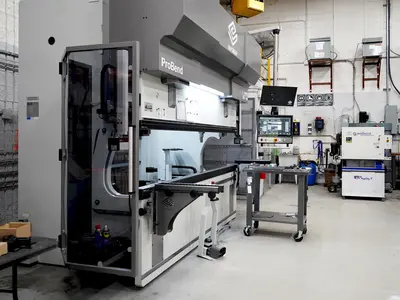

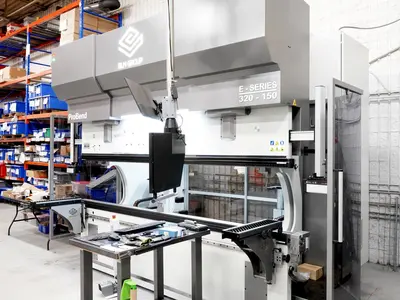

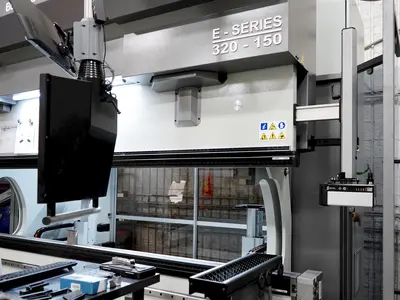

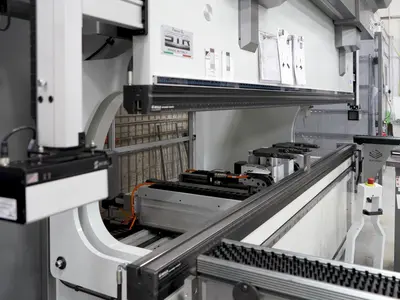

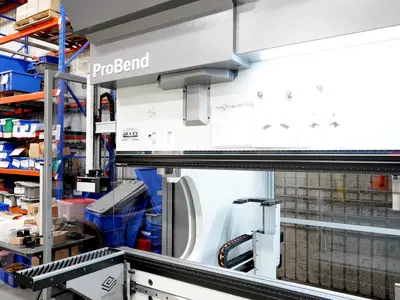

USED 2021 BLM PROBEND E-SERIES 320-150
Overview
Like new condition with very little use.
Specs
Capacity: 165 Ton
Overall Length of Bed: 10.5'
Control: ESA S 675 W 21'' Touch Screen
Distance Between Housings: 100"
Stroke: 14"
Throat Depth: 20"
Open Height: 29"
Ram Closed Height: 15"
Approach Speed: 354 IPM
Y Return Speed: 354 IPM
Bending Speed: 2 - 59 IPM
Number Of Axis: 8
Backgauge: 6-Axis
Motor: 30 HP
Transformer: 600/400v 3PH
Weight (Approx.): 25,824 Lbs.
Dimensions: 209" x 96" x 117" H
Equipped With

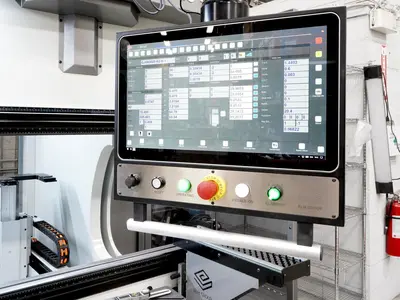

ESA S 675 W 21'' Touch Screen Control

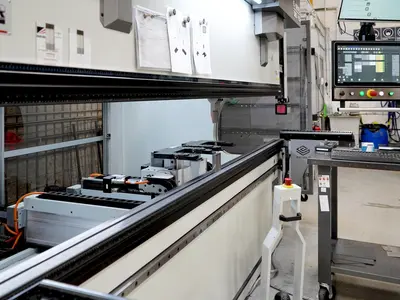

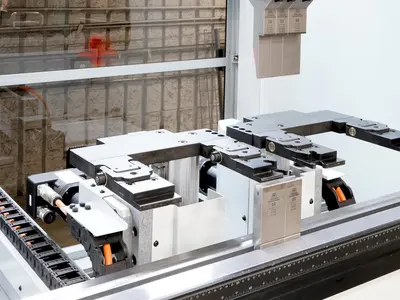

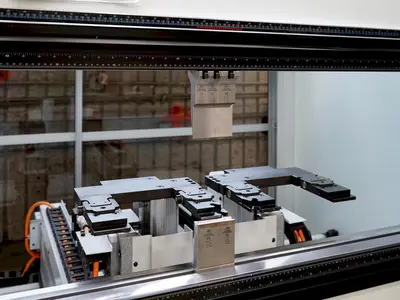

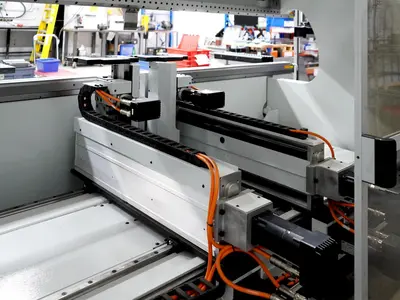

ATF-L 6-Axis Backgauge
Auto Lubrication System for Ball Screws and Bearings (Y1/Y2)
Database Self-Learning Angle Correction
IRIS Lazer Safe & Measuring with Angle Correction
Wila CNC Crowning
Wila NSCL-I-HC/UPB New Standard Pro Hydraulic Ram & Die Clamping

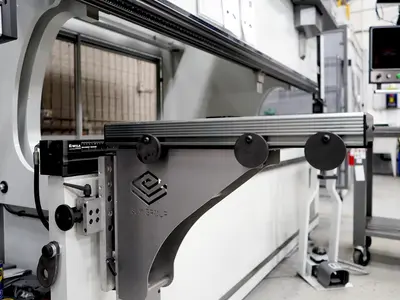

(2) Sheet Supports
ESA Guide Light Ban
LaserSafe IRIS PLUS for angle control
Rear And Lateral Gates
