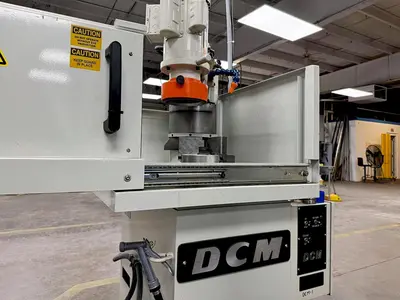

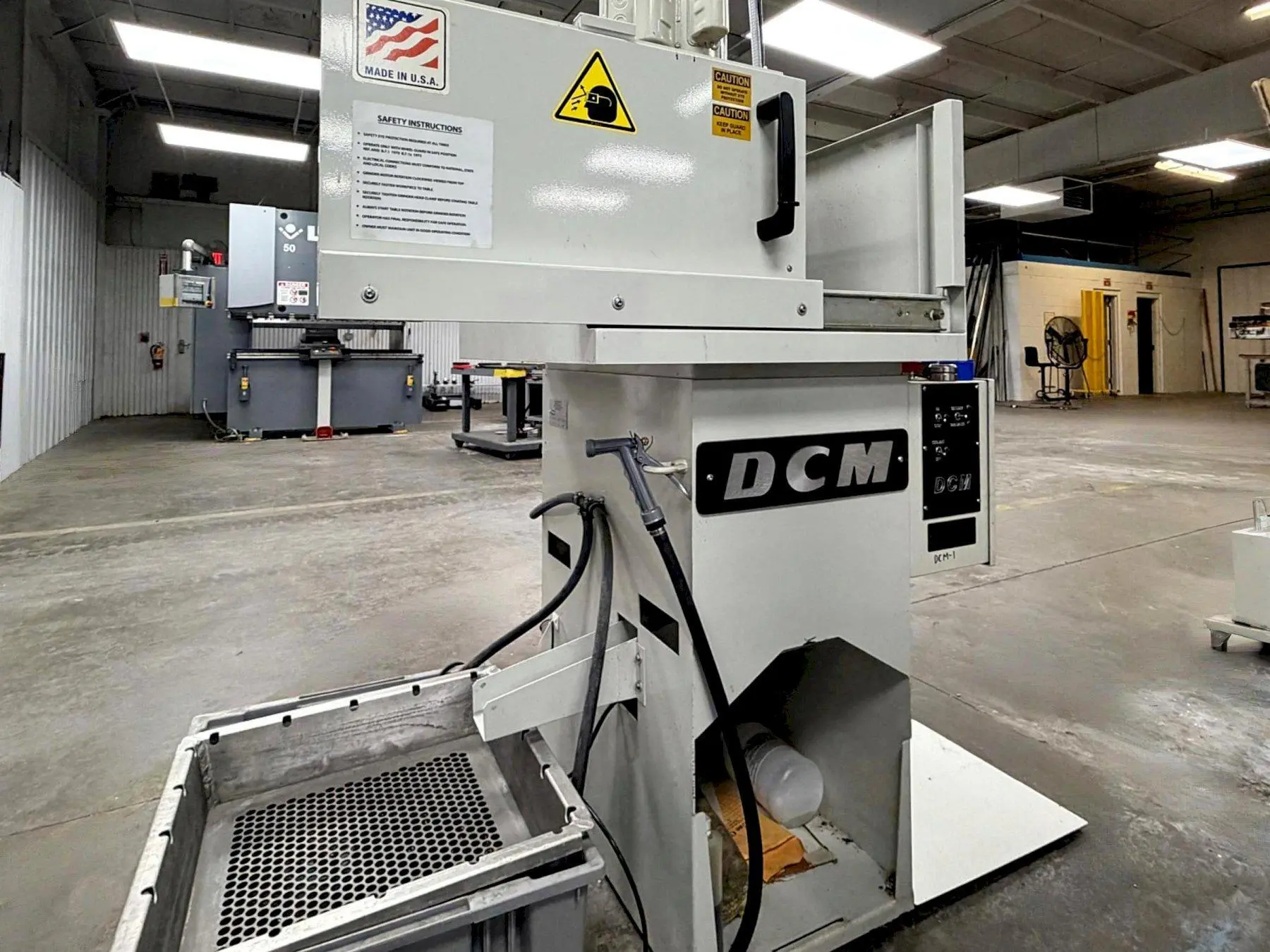

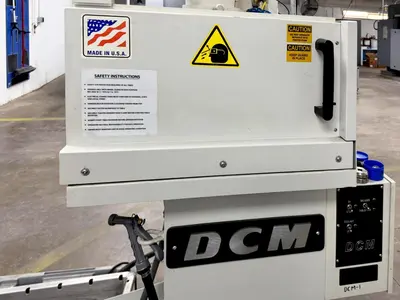

USED 2019 DCM MINI PDG (PUNCH & DIE GRINDER)
Overview
Excellent condition with light use.
Specs
Rotary Table Diameter: 10”
Max. Grinding Wheel Diameter: 6”
Max. Vertical Spindle Travel: 5”
Head Rotational Position: 45°
Coolant System Capacity: 12 Gal.
Sound Level During Operation: 55 db
Speed Power Spindle (1 Phase): 3600 RPM/1.5 HP
Table (1 Phase): 30 RPM/1/8 HP
Coolant Pump: 100 W
Electrical Standard: 230V/60 Hz/1Ph
Dimensions: W 33” x L 17” x H 5’
Equipped With
Cast Iron Base
Rigid Z-Axis Column w/ Dovetail Ways
Accepts 6" Diameter Grinding Wheel
Recirculating Coolant System w/ Paper Filter Media

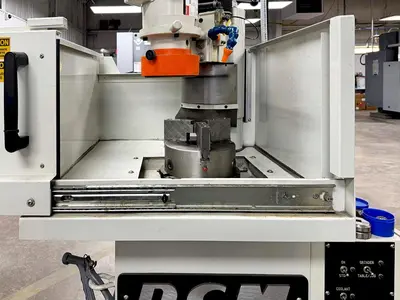

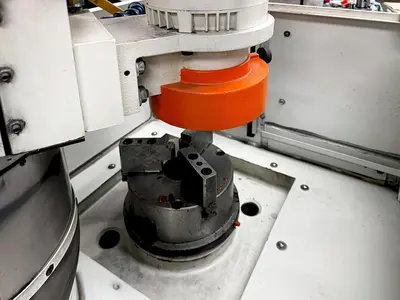

Standard 3 Jaw Chuck Work Holding Fixture

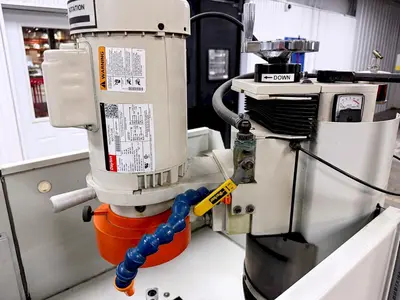

1.5 HP 3600 RPM Grinding Spindle Motor
Powered Rotary Table
