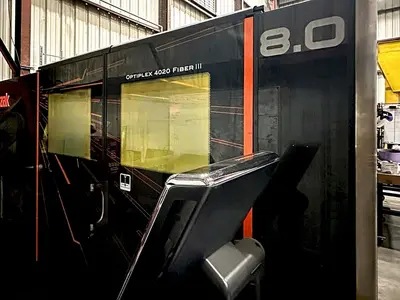

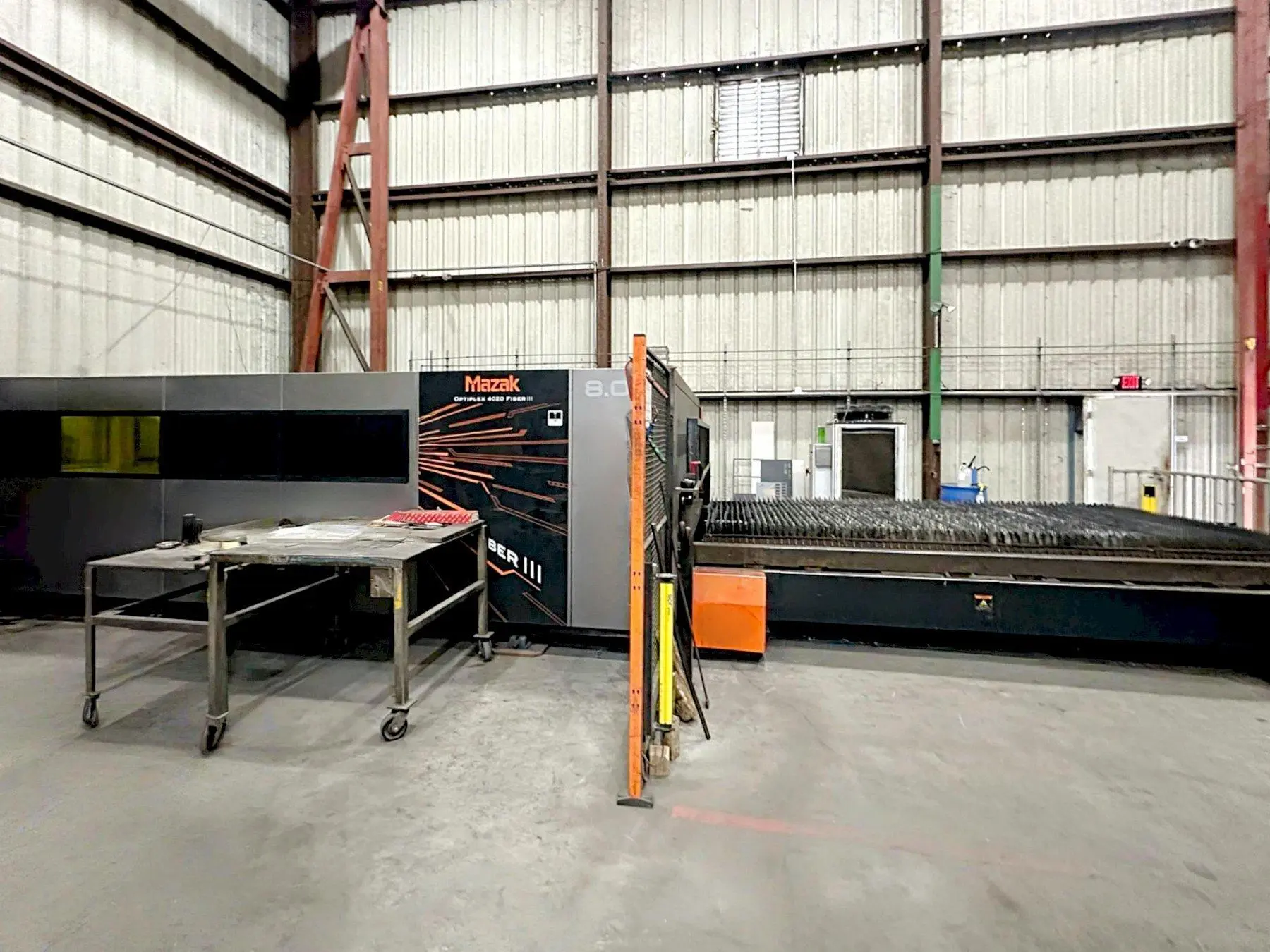

USED 2019 MAZAK OPTIPLEX 4020 FIBER III
Overview
Well maintained with low production hours.
Specs
Control: Mazak Preview G
Display Screen: 15” Color LCD
Position Detection System: Encoder
Program Input System: EIA/ISO
Machine Structure: Flying Optics
Laser Type: Fiber
Power Source: IPG YDS 8000 Generator
Max Power Output: 8,000 Watts
Min. Command Unit: 0.0001”
Max Workpiece Dimensions: 78.74" x 157.48"
Max Workpiece Weight: 3,527 Lbs
Travels X Axis: 160.43"
Travels Y Axis: 81.10"
Travels Z Axis: 4.33"
Motion Drive System X, Y: Rack & Pinion Drive
Motion Drive System Z: Ball Screw Drive
Number of Control Axes: 3
Rapid Travel Speed X, Y Axis: 4,725 IPM
Pos. Accuracy X, Y Axis: 0.002"/19.68"
Pos. Accuracy Z Axis: 0.0004"/3.94"
Repeatable Accuracy X, Y Axis: 0.0012"
Max Material Thickness Mild Steel: 1.00”
Max Material Thickness Stainless Steel: 1.00”
Max Material Thickness Aluminum: 0.75”
Max. Material Thickness Copper: 0.63″
Max. Material Thickness Brass: 0.38″
Total Electrical Requirement: 105 kVA
Machine Unit Weight: 47,024 Lbs.
Equipped With

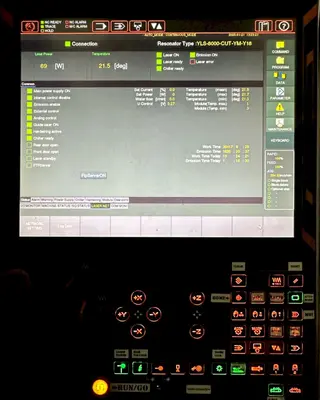

Mazatrol PREVIEW G CNC Control
15” LCD Color Touch Screen
IPG YDS 8000 Generator & Fiber Optic Delivery System

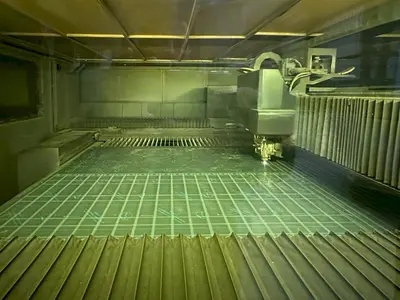

Highspeed Cutting Head
Scrap Conveyor
Scrap Conveyor
Intelligent Monitoring Functions

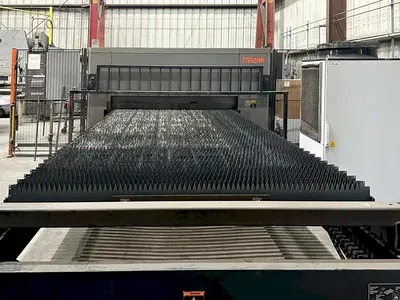

High Speed Automatic 2 Pallet Changer
4th Assist Gas Piping
Regulator Start-Up Kit II
IPG Chiller Unit
Dust Collector
