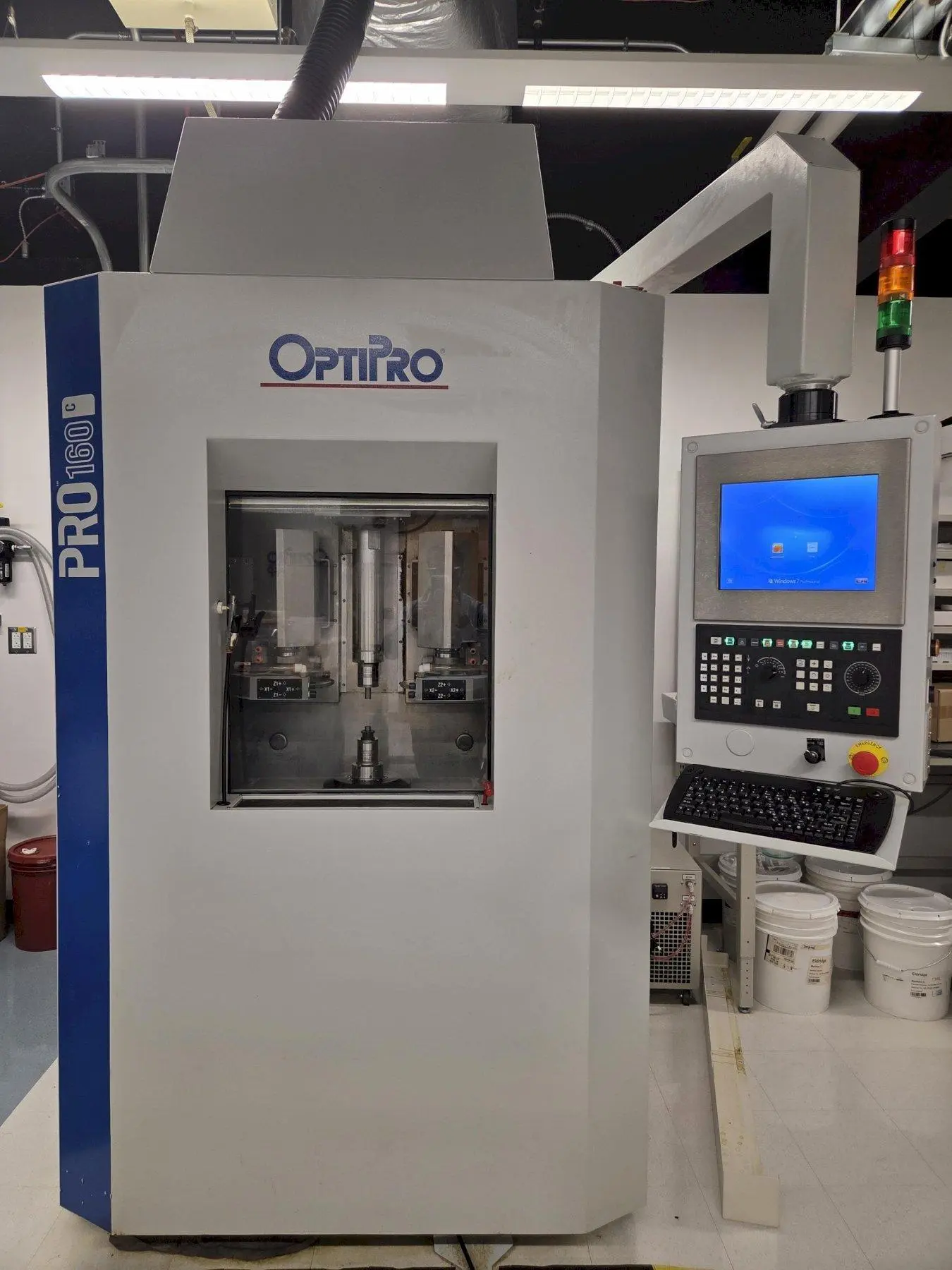

USED 2017 OPTIPRO PRO 160C
Overview
Control: PRO 160C CNC
C Series Optical Centering Software
Multiple advanced features: PRO 160C CNC centering machine delivers efficient and precise processing of optical glasses, ceramics, and IR materials in a variety of shapes and sizes.
Shapes to Grind: Planos, Spheres, Aspheres, Cylinders Acylinders, Prisms, Freeforms
Rigid granite base
Functionality: Non-circular lens shapes (truncations), facets, steps, bevels, tapers and freeform edge shaping

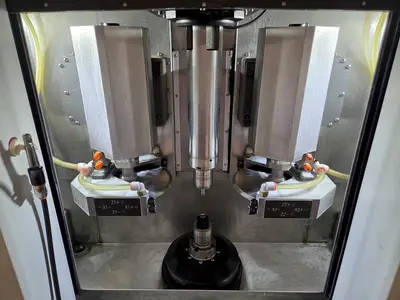

High quality centering bells minimize any damage risk to the surface of the clamped optic.
Three options to center the workpiece – laser alignment via transmission or reflection, centering with dial indicator, or self centering.
Proficient bell clamping technology minimizes setup time
Intuitive Edge Detection
Center thickness compensation ensures accurate bevels and sag flats.
Specs
Precision Optics Centering Machine:: 5-200 MM Optics - Grind Centering Bells
Workpiece: Workpiece
Optimal Diameter Range: Up to 200 mm (7.87”)
Maximum Workpiece Height: Up to 70 mm (2.76”)
Work Spindle: Work Spindle
Spindle Speed: 0-200 rpm
Hydro-Expansion Chuck: 25 mm (Standard and Custom Bells Available)
C-Axis Position and Hold: Standard
Precise Clamping Pressure: Up to 1,000N
Tool Spindle: Tool Spindle
Tool Holder Style: Quick Change HSK63F
Maximum Tool Diameter: 220 mm (8.66”)
Maximum Tool Weight: 6 kg (13.2”
Tool Spindle Speed: 1,000 - 12,000 rpm
Spindle Power: 7kW (9.5hp)
Travels: Travels
X1 - AXIS TRAVEL: 68 mm (2.68”)
X2 - Axis Travel: 68 mm (2.68”)
Z1 - Axis Travel: 130 mm (5.12”)
Z2 - Axis Travel: 130 mm (5.12”)
Z3 - Axis Travel: 93 mm (3.66”)
C1 - Axis Travel: 360° Continuous
C2 - Axis Travel: 360° Continuous
Repeatable Positioning Accuracy - New Spec: +/- 0.001 mm
Communication Interface: Communication Interface
Ethernet: Standard
USB: Standard
Machine Dimensions - L x W x Ht.: Width: 1,278 mm (50.3”) x Depth: 2,032 mm (80”) x Height: 2,282 mm (89.8”)
Machine Weight: 2,494 kg (5,500 lbs.)
Voltage / Power requirement: Electrical : 480V +/- 10%, 58A
Air Requirement: 100PSI, 5 CFM clean dry air
