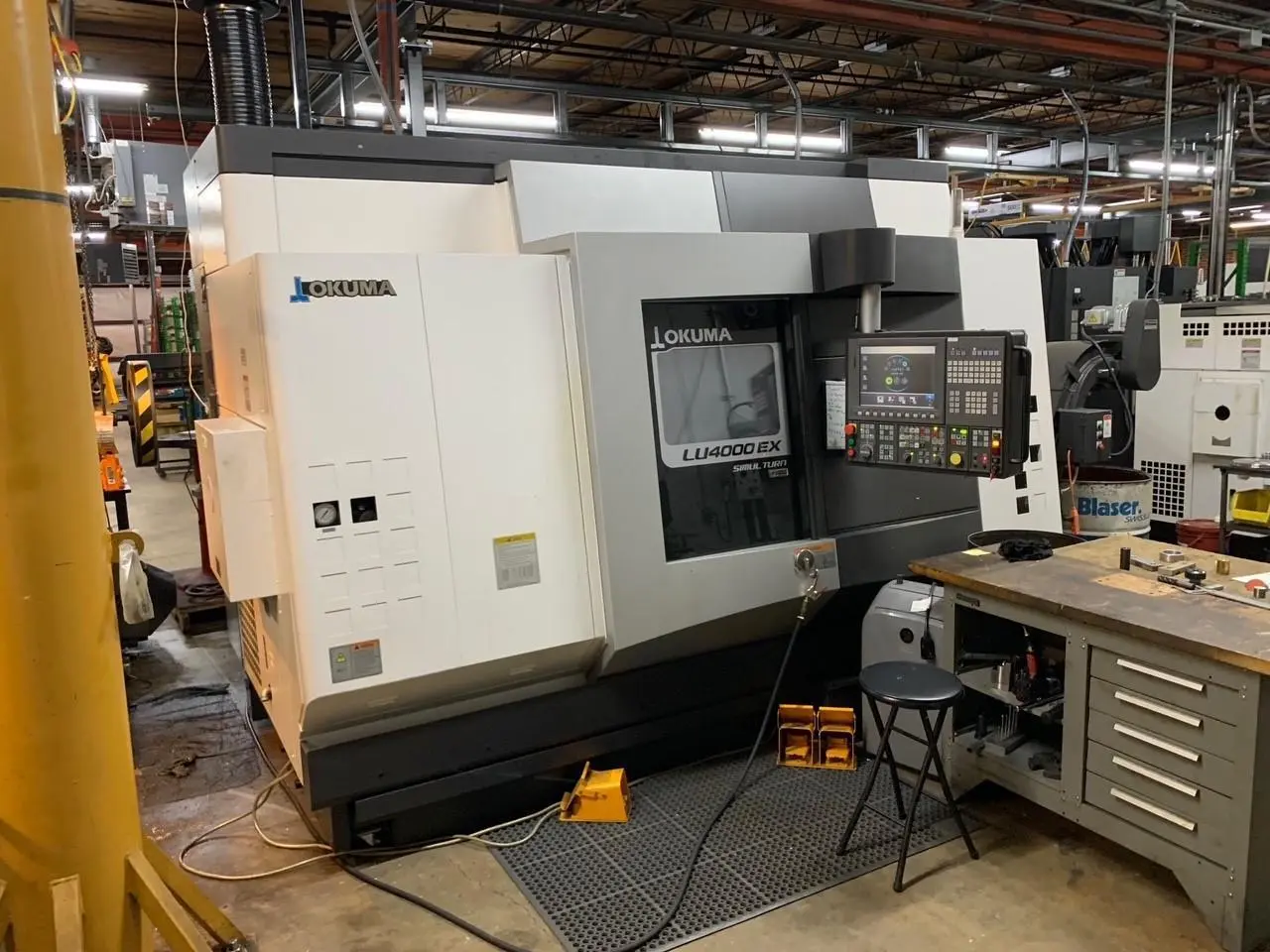

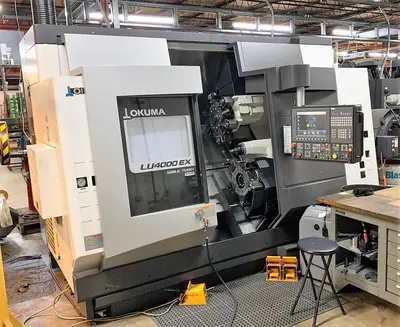

USED 2018 OKUMA LU4000 EX MY
Overview
Normal
0
false
false
false
EN-US
X-NONE
X-NONE
/* Style Definitions */
table.MsoNormalTable
{mso-style-name:"Table Normal";
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-parent:"";
mso-padding-alt:0in 5.4pt 0in 5.4pt;
mso-para-margin:0in;
mso-para-margin-bottom:.0001pt;
mso-pagination:widow-orphan;
font-size:10.0pt;
font-family:"Times New Roman",serif;}

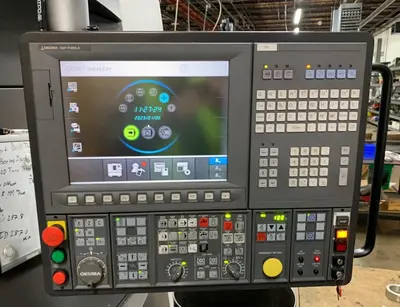

Control: OSP-P300LA
Tool Eye Presetter
Chuck - (2) Foot Switches

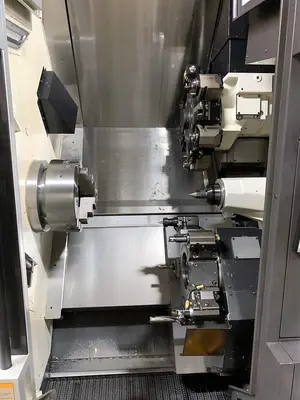

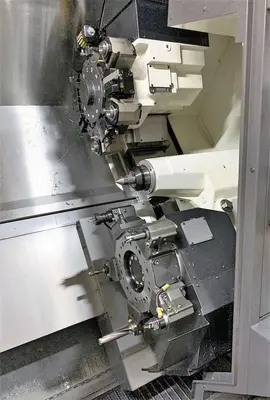

2-Turrets: Upper w/ Milling (Y-Axis), Lower: Turning: ID/OD work
Live Milling on Turret
Y-Axis
Chip Conveyor
Coolant System

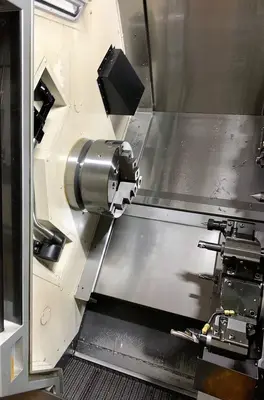

Chuck - 3-Jaw (12")
Mist Collector
Air Hose
Manuals and Documents
**AVAILABLE IMMEDIATELY - 2023
*To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
Specs
CNC Control: yes
CNC Control: Okuma OSP-P300LA
# Axis: 5
Machine Cutting Hours: 240
Max. Swing over Bed:: 27.36"
Max. Turning Diameter:: 11.02"
Max. Work Length:: 25.59"
X-Axis Travel:: 7.68"
Y-Axis Travel:: 5.51"
Z-Axis Travel:: 27.56"
C-Axis deg. (.0001 increments):: 360 (minimum control angle - 0.001increments)
Spindle Speed:: 30-3000 RPM
Spindle Speed Range:: Two Auto Ranges
Spindle Nose:: A2-11
Spindle Bore Diameter:: 3.59"
Chuck Size:: 12"
Sub Spindle: no
Turret Type:: U: Multitasking V12/L:V10 (L-Radial)
Turret - Number of Tools:: 2-Turrets: U:12 (L/M): L:10
Turret - OD Tool Shank Size:: 1"
Turret - ID Tool Shank Diameter Size:: 1.57"
Turret - Rotation:: 0.1 sec/index
Live Tooling: yes
Milling Tool - Spindle Speed:: 45 to 6000 RPM
Milling Tool - Speed Range (Infinately Variable):: Infinately Variable
Feedrate - Rapid Traverse:: X-984 IPM & Z-1181 ipm
Feedrate - Tailstock Rapids:: 472 ipm
Feedrate - Rapid C-Axis:: 200 ipm
Feedrate - Cutting (X,Z - IPR):: 0.00004 - 39.37 ipr
Tailstock: yes
Tailstock Taper:: MT 5 (revolving center)
Tailstock - Quill Travel:: 5.91"
Motors - Main Spindle:: 43/20 HP
Motors - Milling tool spindle:: 7.5/4.3 HP
Motors - Axis Drive:: 4.7HP / 4HP / 4.7HP / 6HP / 6HP (Xa,XB,Ys, ZA, ZB)
Motors - Coolant Pump:: 0.07HP
Dimensions: 140.55" L x 90.94" W x101.85 HT
Weight: 22400 Lbs.
