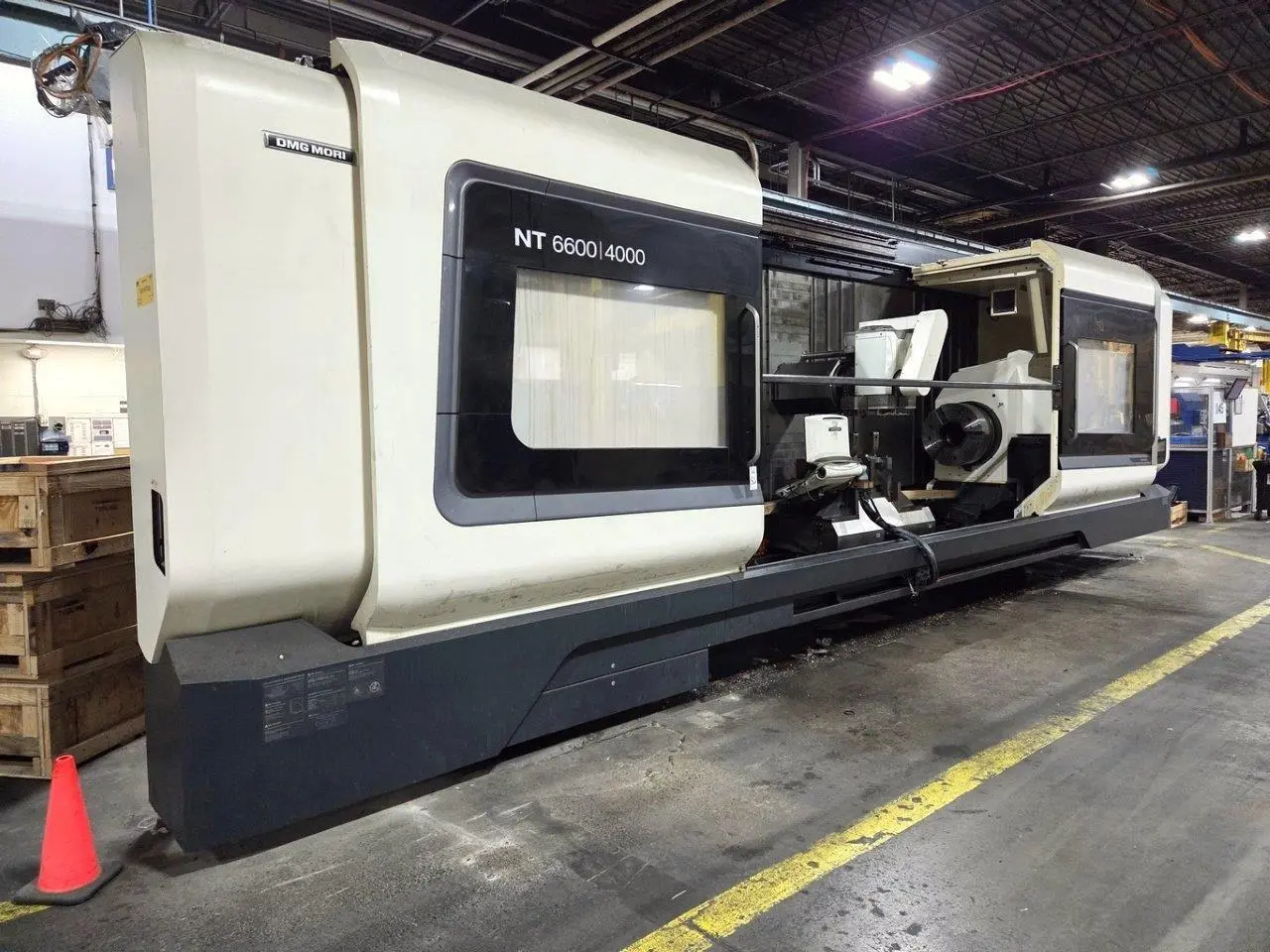

USED 2017 DMG MORI NT6600DCG/4000CS

CNC Control: yes
CNC Control: SIEMENS 840D CNC CONTROL WITH CELOS
# Axis: 5
Max. Turning Diameter: 42.1"
Max. Turning Length: 160.4"
X-Axis Travel: 40.9"
Y-Axis Travel: 26.0"
Z-Axis Travel: 163.4"
B-AXIS TOOL SPINDLE ROTATION RANGE: +/-120 DEGREES
C-AXIS INDEXING, SPINDLES 1 & 2: 0.001 DEGREE
MAX. WORK WEIGHT, CHUCKING: 15,400 LBS
SPINDLES 1 & 2:: SPINDLES 1 & 2
CHUCK SIZE, EACH SPINDLE: 24.8" SMW CHUCK
CHUCK TYPE, EACH SPINDLE: B24A2021A + F2511H-21A
MAX. SPINDLE SPEED, EACH SPINDLE: 1000 RPM
C-AXIS ROTATION, EACH SPINDLE: 0.0001 DEGREES
THRU-SPINDLE HOLE DIA., EACH SPINDLE: 10.31"
TOOL SPINDLE:: TOOL SPINDLE
X1-AXIS TRAVEL: 40.9"
Y-AXIS (LONG BORING BAR SPECS): +/-12.9"/+12.9"/-11.0"
Z1-AXIS TRAVEL: 163.3"
B-AXIS ROTATION RANGE: +/-120 DEGREES
MINIMUM INDEXING INCREMENT: 0.0001 DEGREE
MAXIMUM TOOL SPINDLE SPEED: 8000 RPM
RAM CONFIGURATION: OCTAGONAL
RAM DIAMETER: 17.7"
TOOL CHANGER:: TOOL CHANGER:
TOOL STORAGE CAPACITY: 140 ATC
SPINDLE TAPER: CAPTO C8
LONG BORING BAR CHANGER:: LONG BORING BAR CHANGER:
MAXIMUM DIAMETERS OF HOLDERS: 3.14", 3.94", AND 4.72"
MAXIMUM LENGTH OF HOLDERS: 50.39"
STEADY RESTS:: STEADY RESTS:
NUMBER OF STEADY RESTS: 2
STEADY REST TYPE: PROGRAMMABLE
XA STEADY REST TRAVEL: 118.11"
XB STEADY REST TRAVEL: 157.48"
RAPID TRAVERSE RATES:: RAPID TRAVERSE RATES:
X-AXIS: 131.2 FPM
Y-AXIS: 98.4 FPM
Z-AXIS: 105 FPM
CNC CONTROL:: CNC CONTROL:
SIEMENS 840D CNC CONTROL WITH CELOS: SIEMENS 840D CNC CONTROL WITH CELOS
TECHNOLOGY CYCLE ECCENTRIC TURNING & MILLING STATION: TECHNOLOGY CYCLE ECCENTRIC TURNING & MILLING STATION
TECHNOLOGY CYCLE 5-AXIS SIMULTANEOUS MACHINING: TECHNOLOGY CYCLE 5-AXIS SIMULTANEOUS MACHINING
TECHNOLOGY CYCLE FOR APPLICATION AN ALTERNATING SPEED: TECHNOLOGY CYCLE FOR APPLICATION AN ALTERNATING SPEED
TECHNOLOGY CYCLE MULTI-THREADS: TECHNOLOGY CYCLE MULTI-THREADS
TECHNOLOGY CYCLE EASY TOOL MONITOR F.CNC SIEMENS: TECHNOLOGY CYCLE EASY TOOL MONITOR F.CNC SIEMENS
