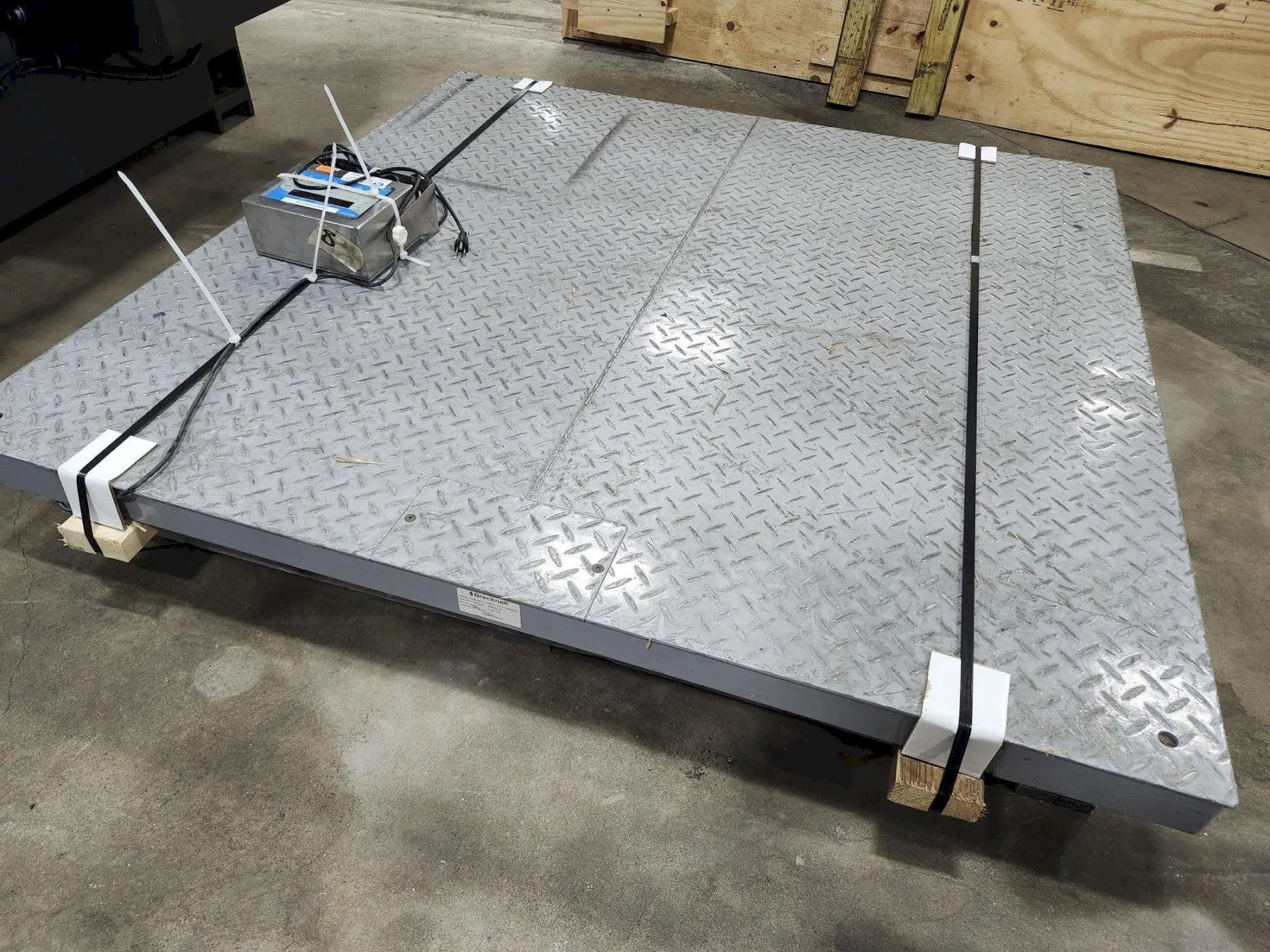

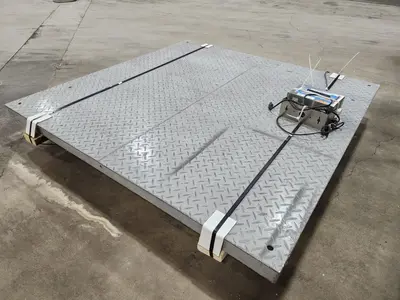

USED 2019 BRECKNELL DCSB6060-10 NTEP

The Brecknell DCSB6060-10 5 x 5 NTEP floor scale has a capacity of 10,000 lbs with a 2 lbs readability. Brecknell DCSB NTEP certified legal for trade industrial floor scales are IP65 rated washdown and comes precalibrated with the SBI-521 stainless steel LED indicator.

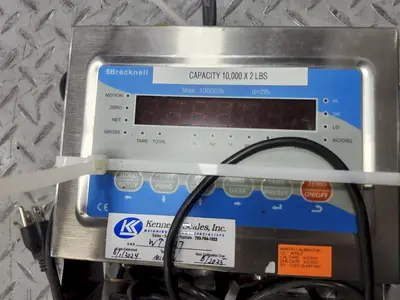

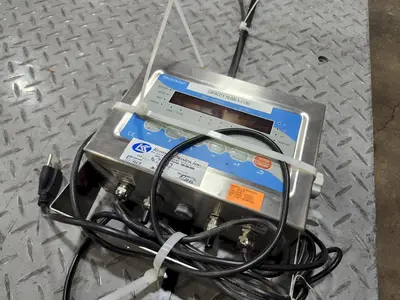

Pre-calibrated to SBI-521 LED indicator
Easy Installation - Units can be placed into service with no on-site installation required
A/D Conversion Rate - Up to 25 measurements per second
NTEP approved Legal for Trade
IP65 Rated washdown
Counting, checkweighing, Net, Gross, Total and percentage weighing
Stainless swivel stand included
Powder coated base

Capacity: 10000 Lbs.
Readability: 2 Lbs.
Platform Size: 5 x 5'
Accuracy: NTEP at 5,000 divisions, Class III
Construction: 0.25 inch thick deck with safety tread
Finish: Powder coat paint
Interface Cable Length: 15' with tinned leads (included)
Washdown Rating: IP65 dust and water protection
Units: lb, kg, oz
Indicator Housing: Heavy dut stainless steel, IP65 dust and waterproof
Interfaces: Serial Port 1: Full-duplex RS-232 Serial Port 2: Full-duplex RS-232 or half-duplex RS-485
Functions: Motion, Zero, Net, Gross, Tare, Total, Counting, Peak/Hold, Checkweighing, Percentage Weighing
Keyboard: Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off
Levelling Feet: 4 top access holes for quick levelling
J-Box Construction: Stainless steel, top access
Load Cell Material: Alloy tool steel potted
Load Cell Rated Output: 3mv/V
Overload Protection: 150% of rated capacity
End Loading: 100% of rated capacity
Operating Temperature: 14°F to 104°F (-10°C to 40°C)
Certifications: Indicator: NTEP COC# 11-119 Platform: NTEP COC# 02-070
