USED ROYAL MASTER GEN 5.1 (TG12X3)

Machine Capabilities:

Grinding Feed Rate - In Guide Wire Mode: 1.0" per second (25mm/second)
Diameter Capabilities: .0015" to .750"
Wire Diameter:  .0001" to .250" (.02mm to 6.35mm Standard)
Usable Wheel Width: 1.5"
Linear Slide Resolution: 6349.9 Linear Counts per Inch
Linear Accuracies: +/- .0005" (+/-.012mm)
Diameter Resolution: .000004" (.0001mm)
Diameter Accuracies: .00004" (.001mm)
Grinding Wheel Diameter: 12"
Inverter for Speeds up to: 9,000 SFPM (Surface Feet Per Minute)
Position Accuracies are based on the wire position and updated every .0025" as the wire passes the sensing pixals.

Main Machine Components:

Machine is Based on a TG-12x3 Hi-Accuracy System
Servo Motors
Ball Screw .00001" (.00025mm) Ram Positioning
Glass Scale Feedback: .000004" ( .0001mm)

Linear Movement:

Linear Actuator with Sony Magnetic Encoder
Levin Spindle System with 1C Collets

Operator Interface: Windows NT Based  Pentium Grade Computer with 15" Flat Screen Monitor

Touch Screen

Equipped with:

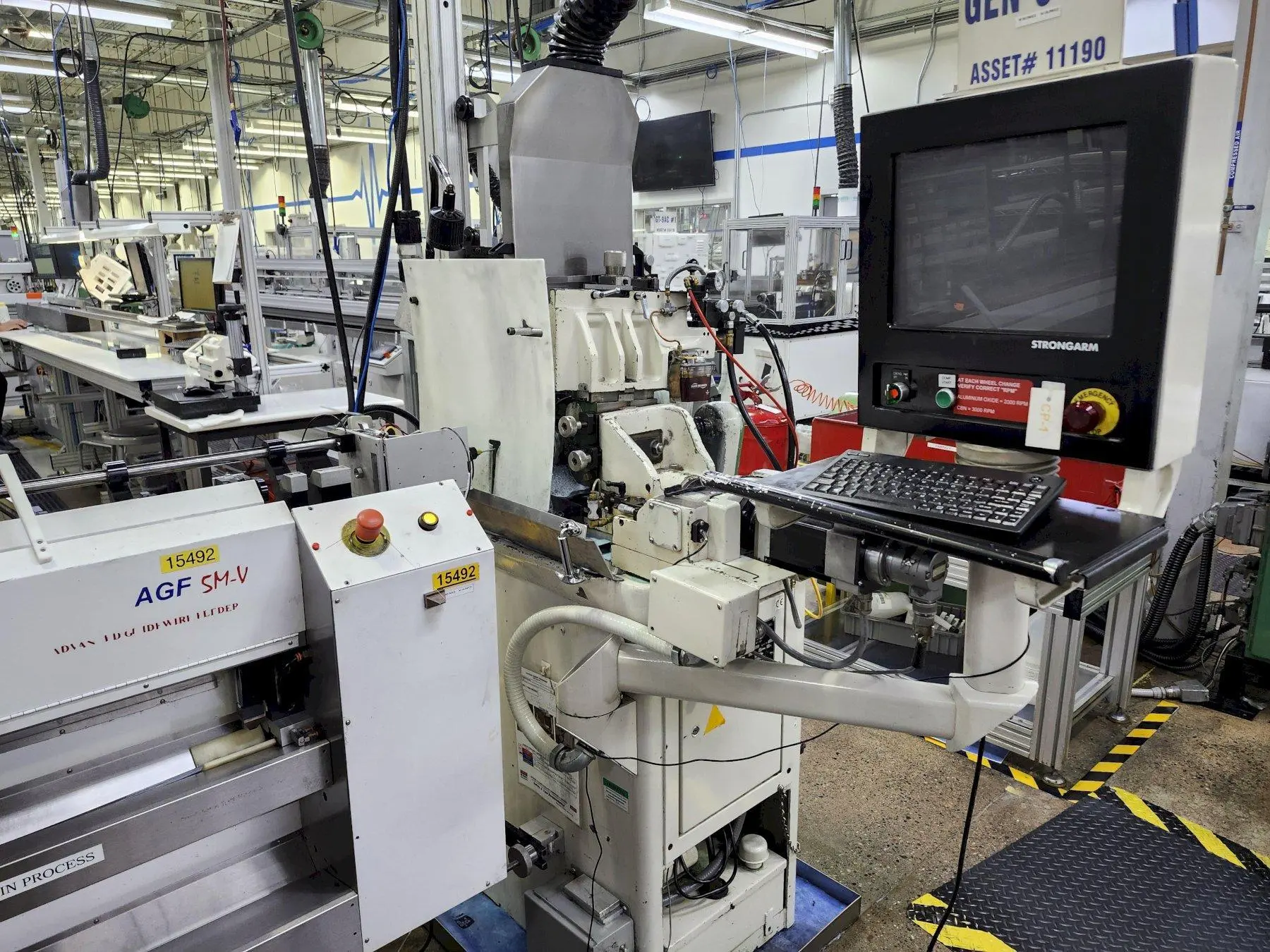

Royal Master Control: Strongarm – Windows NT Based
      CNC Windows Base Touch Screen Control
2 - 7” Air Sensing Hyd. Dressers Over Wheels
Extra Dresser
Servo Driven Over the Wheel Dressers
Servo Driven Infeed

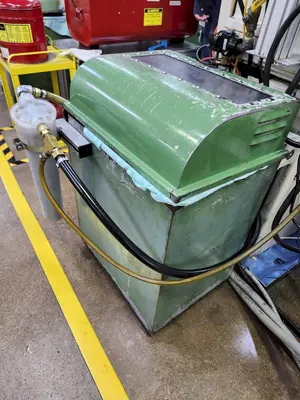

Deep Bed Filter - Industrial Filters Co. Coolant System with Paper Filtration
Bijur Auto Lubrication System

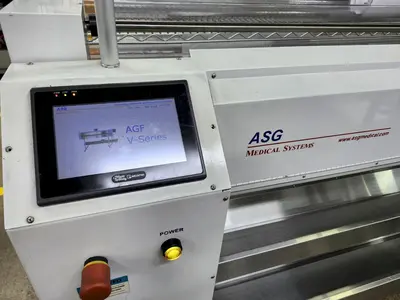

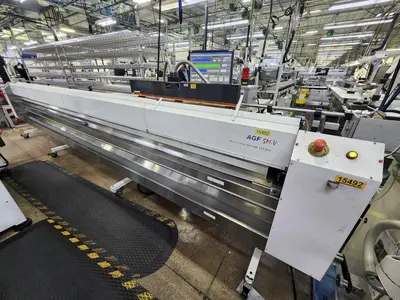

Accu-Feed AGF 5M-V Fully Automated Wire Loader/Unloader (Adavanced Guidewire Feeder)
IBAR Sensor for wire detection
Spindle Load Meter
Misc. Spare Parts
