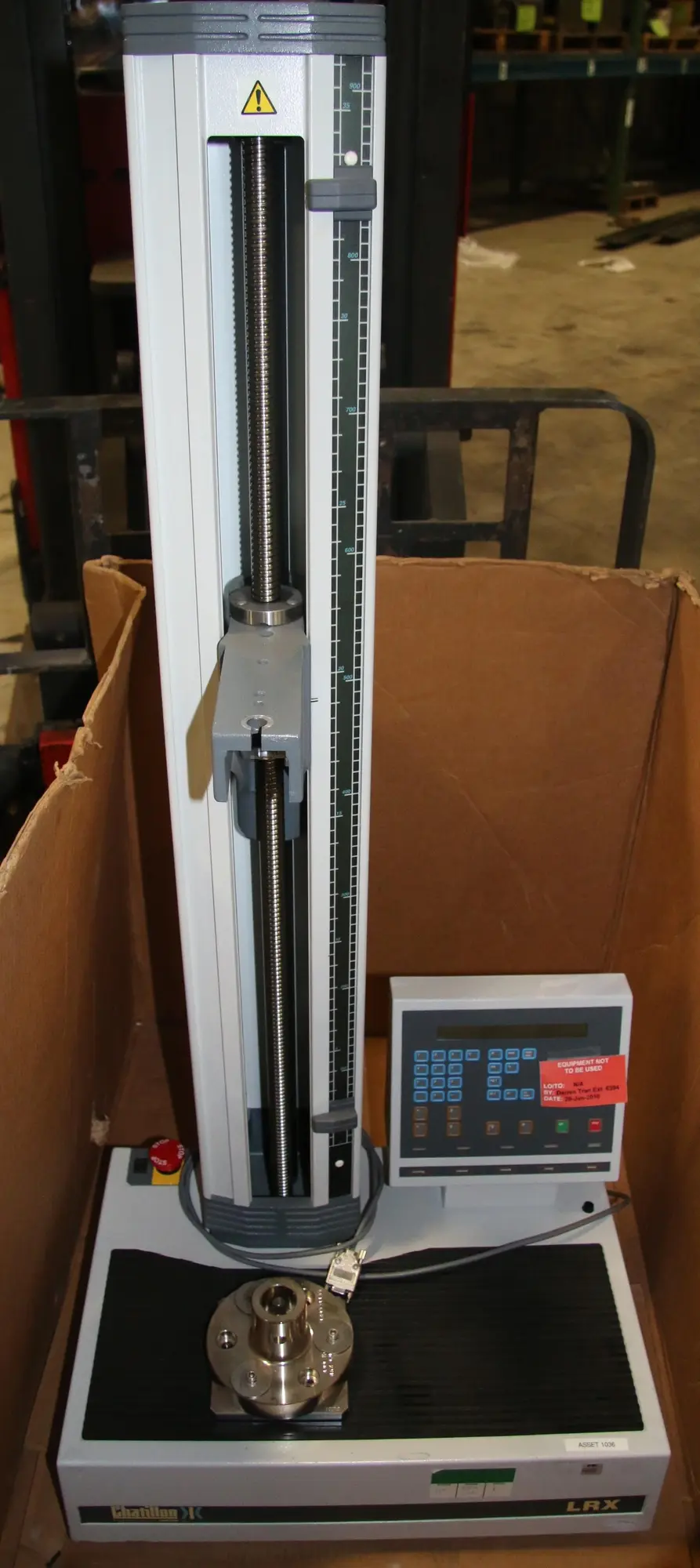

USED 2004 CHATILLON LRX 2.5 KN UNIVERSAL

(1) Used YCM Model XV560A CNC Vertical Machining Center, New 2004

Specification
Table Size 27.600” x 16.500”
Max. Workpiece Weight 660 Lbs.
Travels:
X Axis 18”
Y Axis 22”
Z Axis 16”
Rapid Traverse 1,417 ipm
Max. Feed 394 ipm
Max. RPM 10,000 RPM
Speed Range 1 (Direct Drive)
Spindle Taper No. 40 (CAT)
Spindle Nose to Table (Max) 22”
Spindle Nose to Table (Min) 4.3”
Automatic Toolchanger 20 Stations
Tool Change Time C to C (sec) 3.50 Second (approx.)
Machine Dimensions 73” L x 89”W x 98” Ht.
Machine Weight 6,614 Lbs.

Equipped With:
Control: Fanuc 21iB
PMIA Datacard
Remote Handwheel
Rigid Tapping
Coolant System
Manuals
