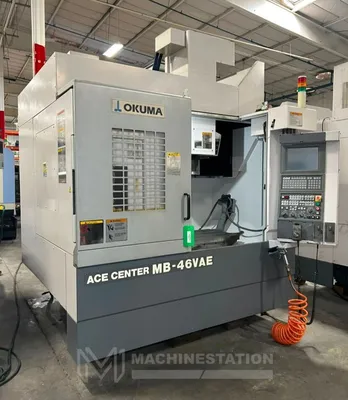

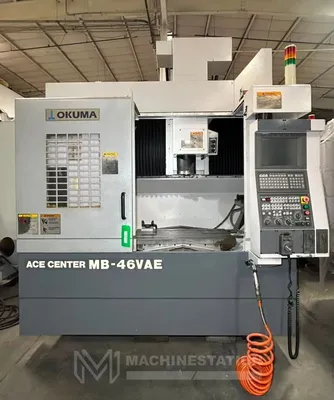

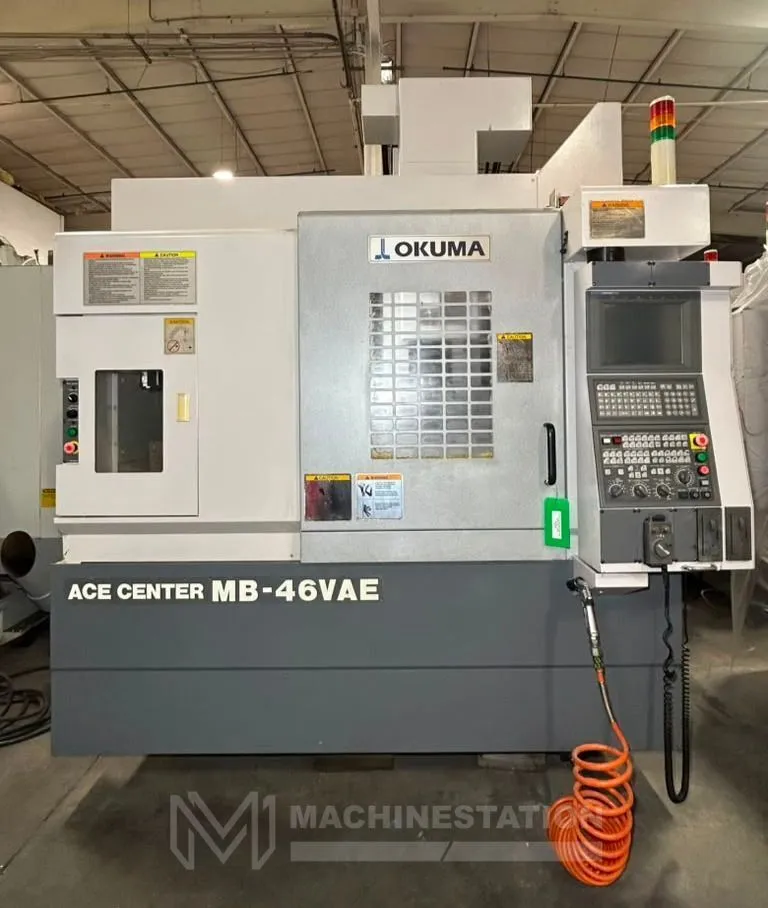

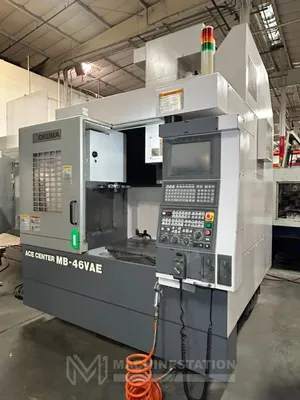

USED 2005 OKUMA MB-46VAE

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

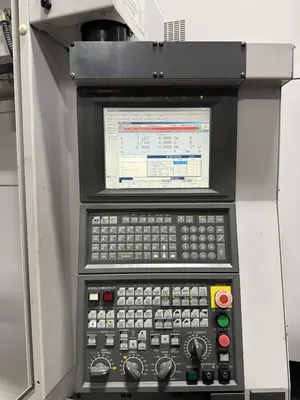

Okuma OSP-P100M CNC Control
CAT40 Taper Spindle
PCMCIA Card Slot & USB Port
Coolant Tank

Travels:
X-Axis: 30.00″
Y-Axis: 18.11″
Z-Axis: 18.11″
X, Y Axis Rapid Traverse rates: 1575 IPM
Z Axis Rapid Traverse rates: 1260 IPM
Cutting Feedrate: 1260 IPM
Spindle Nose to Table (Min.- Max.): 5.91″ – 24.02″

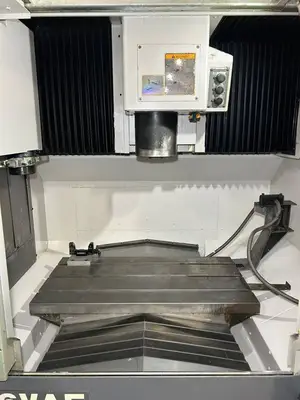

Table:
Length: 39.37″
Width: 18.11″
T-Slot no.: 3
Max Weight on Table: 1540 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 30 HP

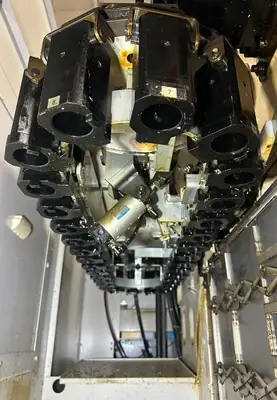

Automatic Tool Changer:
Capacity: 32 Station Side Mounted
Max Tool Weight: 18 lbs
Max Tool Length: 11.81″
Max Tool Diameter: 3.54″

General:
Air Required: 90 psi, 4 scfm

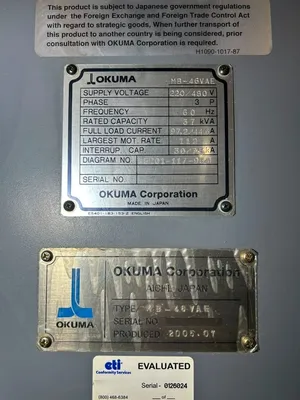

Power: 220v/480v / 37kva / 3-Phase
Overall Dimensions: 88″ x 111″ x 108″ High Approx.
Weight: 15,120 lbs. Approx.
