USED MARVEL SPARTAN S20V
Overview
Description
20" x 12" MARVEL SPARTAN "S20V" VERTICAL CONTOUR BAND SAW w/BLADE WELDER & RIP FENCE ATTACHMENT - 3 HP - 50 to 5000 FPM - Manual Blade Tension
Specifications
| Throat | 20" | 508 mm |
|---|---|---|
| Work Height | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| Blade Width | 1" | 25.4 mm |
| Blade Length | 160" | 4,064 mm |
| FPM | 5000 | 5000 |
| Dimensions | 43" x 32" x 80"H | 43" x 32" x 80"H |
| Weight | 1300 LBS | 1300 LBS |

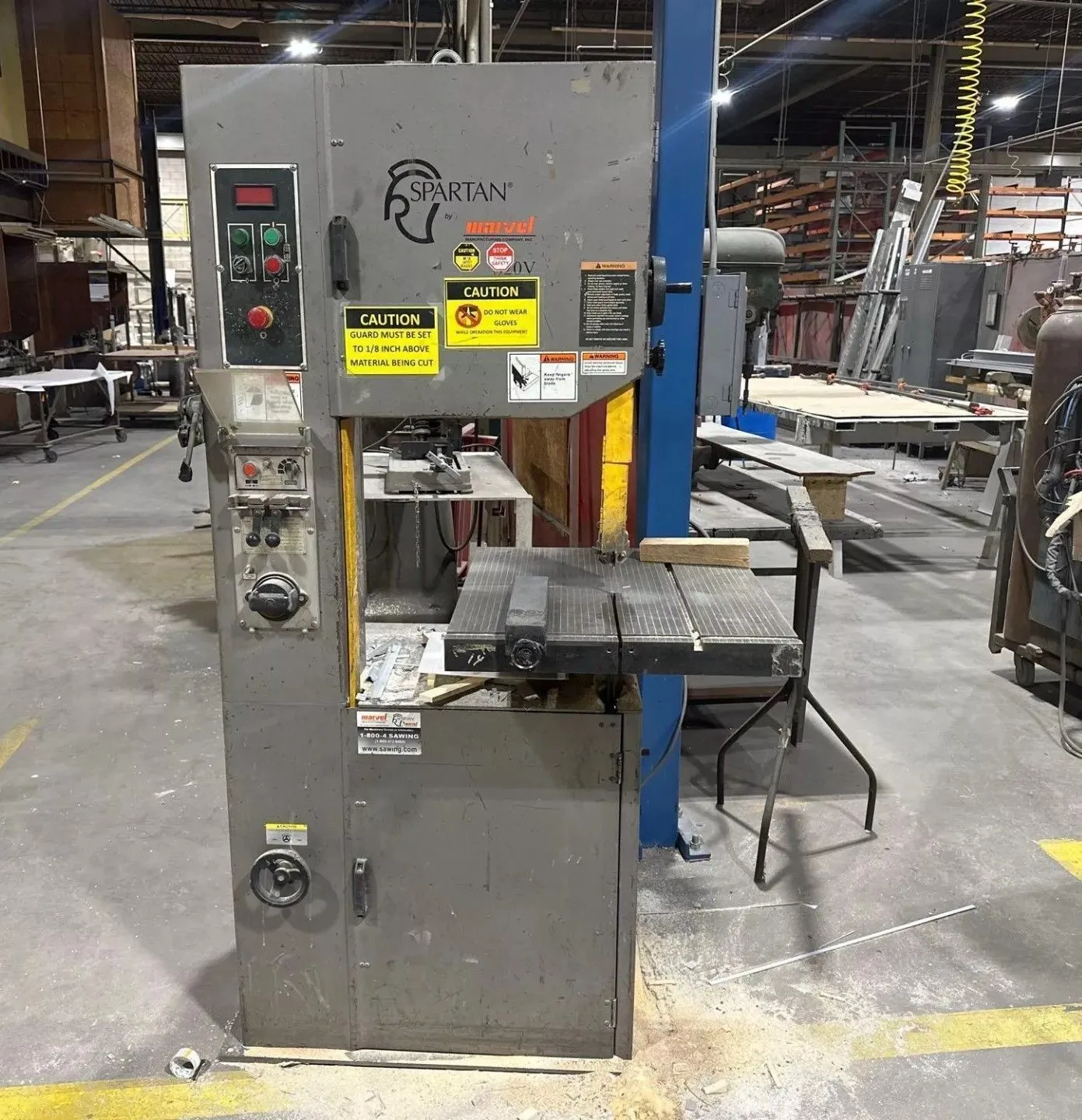

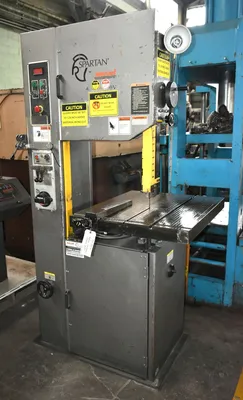

20" X 12" MARVEL SPARTAN VERTICAL CONTOUR BAND SAW
Serial No S20V-180, MODEL S20V,
EQUIPPED WITH:
Rip Fence Attachment
Two Speed Transmission
Tilting Table
Blade Welder & Grinder
Manual Blade Tension
CATALOG SPECIFICATIONS:
Work Capacity, Rated 20" X 12"
Work Height, Maximum 12"
Throat Depth, Rated 20"
Table Weight Capacity 800 LBS
Table Dimensions, L x W 27.5" X 23.5"
Table Tilt, Right 45-DEGREES
Table Tilt, Left 10-DEGREES
Blade Length 13'4"
Blade Width, Range 1/8" to 1"
Blade Wheel Diameter 20.25"
Blade Speeds, Infinitely Variable 50 TO 5000 FPM
Drive Motor Horsepower 3 HP
Floor Space Requires 43" X 32"
Overall Height 80"
Weight, Approximately 1300 LBS
NOTE: Replacement Price Is $18,800.00
F.O.B. OUR WAREHOUSE
