NEW 2026 Lanhao LHA-PA 3200mm

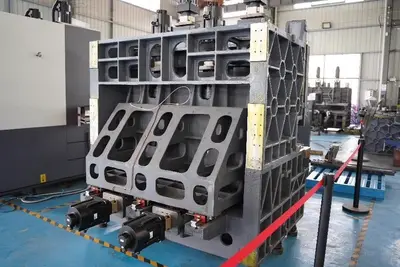

MULTIPLE CASTINGS USE IN PRODUCTION
When comparing cast iron to steel for machinery frames and bases (such as in panel benders or CNC machines), vibration dampening is one of the most critical engineering advantages of cast iron.

Here is a breakdown of why cast iron dampens vibration so effectively compared to regular steel:

1. The Role of Microstructure (Graphite Flakes)
The secret to cast iron’s dampening ability lies in its internal structure. Gray cast iron contains a high percentage of carbon, which precipitates out into interconnected graphite flakes during cooling.

In Cast Iron: These graphite flakes act like millions of microscopic acoustic pillows or tiny cushions throughout the metal. When mechanical energy or vibration passes through the material, it hits these graphite flakes and is rapidly dissipated.

In Steel: Steel has a much more uniform, crystalline structure without these free graphite flakes. Because it lacks these internal "energy absorbers," vibrations can travel through steel relatively unimpeded, causing the material to ring or resonate like a tuning fork.

2. Dissipation of Energy as Heat
Vibration dampening is essentially the process of converting kinetic (motion) energy into another form of energy so it stops vibrating. Because of the friction at the microscopic boundaries between the iron matrix and the graphite flakes, cast iron converts vibrational energy into tiny amounts of thermal energy (heat) very efficiently. This property is known as high internal friction or a high damping capacity.

Why This Matters in Machinery
Using a material with superior vibration dampening (like cast iron) offers several practical benefits for industrial equipment:

Greater Precision and Accuracy: Micro-vibrations can cause cutting tools, bending blades, or punch heads to deflect slightly. Minimizing vibration ensures that the machine holds incredibly tight tolerances during operation.

Superior Surface Finish: In machining or fabricating, vibration causes "chatter marks" on the workpiece. Cast iron absorbs this resonance, leading to a much smoother surface finish on the final product.

Extended Tool and Machine Life: Constant vibration accelerates wear and tear on bearings, motors, and cutting tools. By absorbing these forces at the base, the lifespan of the machine's moving parts is significantly extended.

Noise Reduction: Machines built with cast iron frames operate much more quietly because the structure is not amplifying and radiating the mechanical noise into the workshop.

LINHAO Model LHA3200PA+ 16 Axis
Cost FOB EX Factory $249,500USD
UL Configuration $ 27,500USD
UL Certification $ 20,000USD

Buyer should undertake technician cost for installation and set up, it would include cost of round trip airline tickets, 4 star local accommodation, local transportation hotel to factiory and meals, extra USD350/day allowance. After machine location and power up has occured, technician would set-up and install machine with assist from factory maintenance personnel. Estimate time is two weeks for a standard machine and a few days more for machines with options like tool changing.
