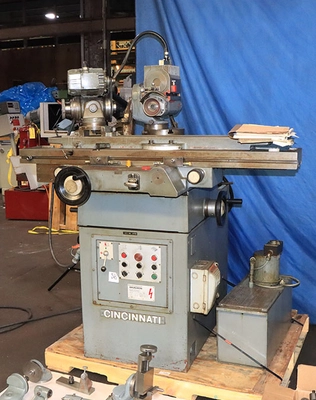

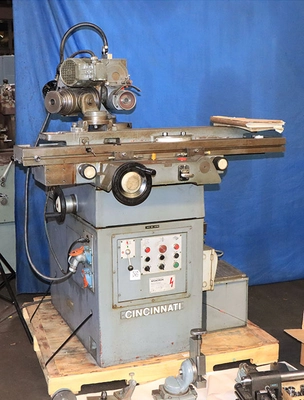

USED 1975 Cincinnati-Milacron No. 2, MT, Power Workhead, Tilt Wheelhead,

     #2 CINCINNATI-MILACRON

 UNIVERSAL TOOL & CUTTER GRINDER

         MODEL: MT

     S/N: 1D2F-1ACF-136

         NEW: 1975

CAPACITY:

SWING OVER TABLE DIAMETER ............. 10"

LENGTH, BETWEEN R.H. & L.H.

 TAILSTOCKS ........................... 27"

LENGTH BETWEEN TAILSTOCK

 AND WORKHEAD ......................... 21-1/2"

FACE MILLS ON WORKHEAD DIAMETER ....... 10"

FACE MILLS USING FACE MILL

 GRINDING ATTACH. DIA. ................ 18"

SAWS ON TABLE DIAMETER ................ 48"

FORMED CUTTERS (USING 6" WHEEL)

 DIAMETER ............................. 10"

RANGE:

TABLE SIZE ............................ 6" x 36"

LONGITUDINAL TABLE TRAVEL ............. 16"

CROSS MOVEMENT OF TABLE ............... 10"

TABLE SWIVEL .......................... 180°

TABLE TAPER PER FOOT ON DIA.

 (TOWARD & AWAY) ...................... 5"

FINE ADJ. TAPER PER FT.

 ON DIA. (TOWARD & AWAY) .............. 2"

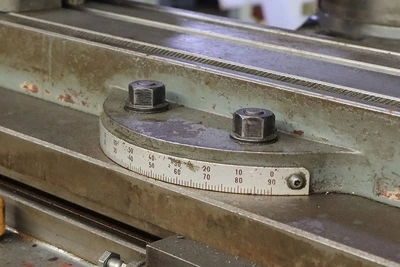

TABLE GRADUATIONS IN CENTER,

 IN DEGREES ........................... 90°

VERTICAL MOVEMENT OF GRINDING

 WHEEL SPINDLE ........................ 10-1/2"

MAX. DIST. CENTERLINE OF

 SPINDLE TO TABLE ..................... 13-1/2"

SPINDLE TILTS ABOVE

 AND BELOW CENTER ..................... 15°

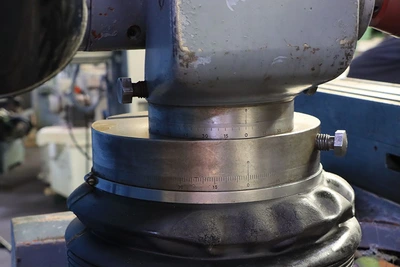

SWIVEL MOVEMENT OF GRINDING

 WHEEL SPINDLE ........................ 360°

SPINDLE SPEEDS:

6" WHEEL, SURFACE SPEED

 6,022 FT./MIN. ....................... 3,834 RPM

3" WHEEL, SURFACE SPEED

 5,887 FT./MIN. ....................... 6,425 RPM

APPROXIMATE MACHINE WEIGHT ............ 3,000 LBS

APPROXIMATE DIMENSIONS ............ 36" x 38"D x 60H

MACHINE FEATURES:

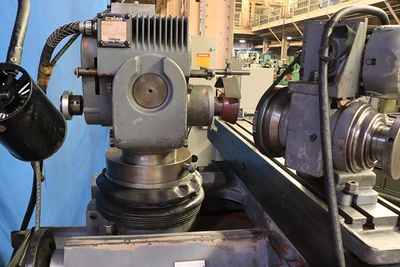

TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)

DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE

BALL BEARING ANTI-FRICTION TABLE ROLLING IN

REPLACEABLE HARDENED STEEL V-WAYS

360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH

CAN INCREASE SPECIFIED CROSS RANGE BY 70%

CAST IRON CONSTRUCTION

ONE-SHOT LUBRICATION SYSTEM

2-SPEED SPINDLE, INSTANTLY REVERSIBLE

1 HP 3/60/230-460 VOLT SPINDLE MOTOR

EQUIPPED WITH:

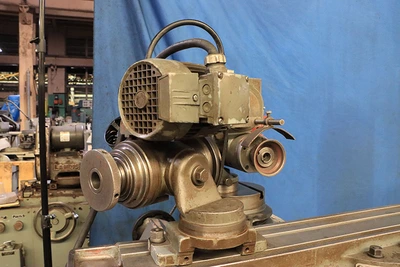

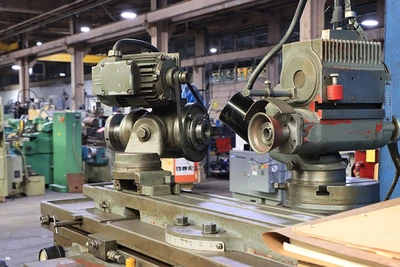

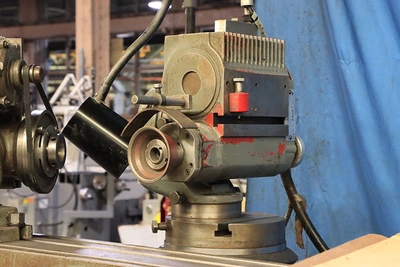

CINCINNATI-MILACRON MOTORIZED WORKHEAD

- WORKHEAD IS WIRED DIRECTLY INTO THE MACHINE

- SELECTOR SWITCHES FOR THE MOTORIZED WORKHEAD

- CINCINNATI TAILSTOCKS

- COOLANT SYSTEM

- TWO WELDON ATTACHMENTS

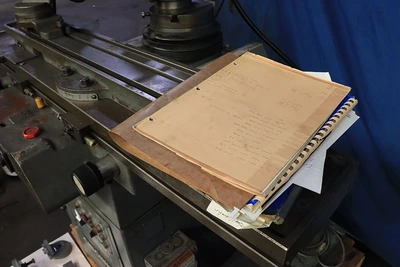

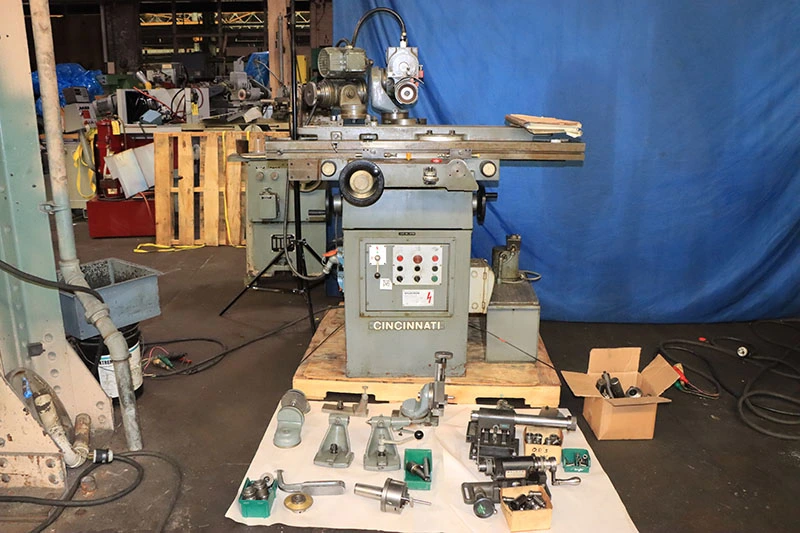

- ASSORTMENT OF OTHER ITEMS AS SHOWN IN THE PHOTOS

- WIRED FOR 440 VOLTS

SPECIAL NOTE, IN STOCK, AVAILABLE TO PURCHASE:

CINCINNATI-MILACRON RADIUS ATTACHMENT, WITH WORKHEAD

CINCINNATI NON-MOTORIZED WORKHEAD

 LINK TO VIDEO: https://youtu.be/Z4KX1KAuplM?si=1FQi-7pPNDuaSkxQ

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
