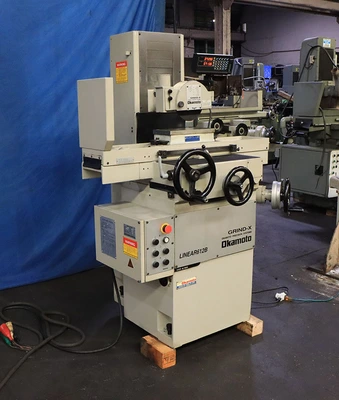

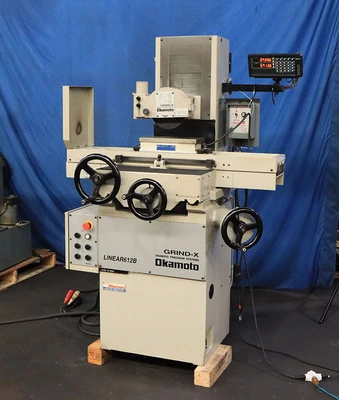

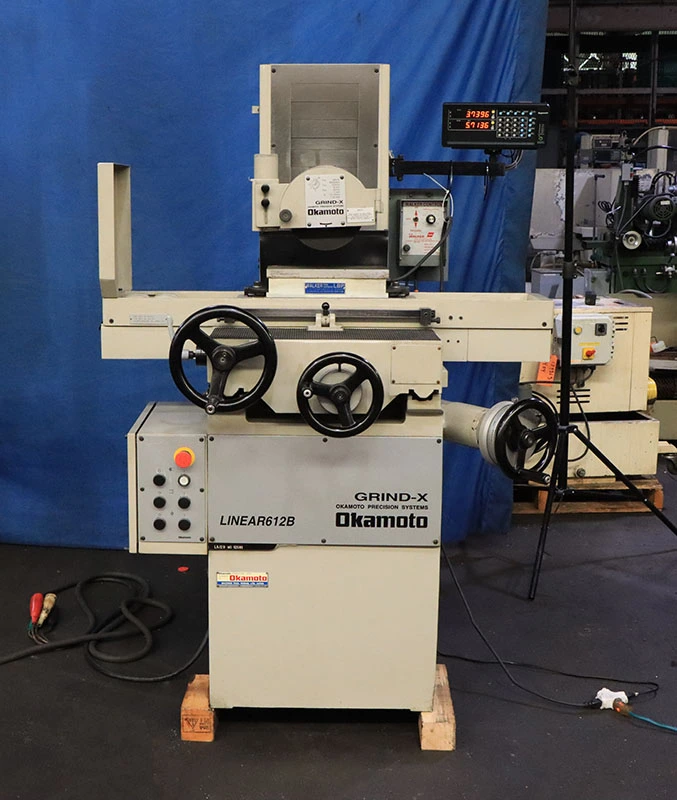

USED 2015 Okamoto L6.12B, 2015, 2X DRO, EMC,

  6" X 12 OKAMOTO "LINEAR SERIES"

 "HIGH-PRECISION" HANDFEED SURFACE GRINDER

       WITH ROLLER BEARING TABLE

** MAGNESCALE 2-AXIS DIGITAL READOUT DISPLAY **

MODEL: L-6.12B      S/N: 62489       NEW: 2015

NOMINAL GRINDING CAPACITY ................. 6" x 18"

TABLE TO UNDERSIDE OF 8" GRINDING WHEEL ... 14.27"

MAX. LONGITUNAL TABLE TRAVEL .............. 14.27"

MAX. CROSS TRAVEL ......................... 8.27"

MOVEMENT PER HANDWHEEL REVOLUTION:

 TABLE .................................... 5.12"

 SADDLE ................................... 0.1""

SADDLE .................................... 0.05"

HANDWHEEL GRADUATION....................... 0.0001"

SPINDLE MOTOR ....................... 2 H.P.

GRINDING WHEEL SPEED ................ 3450 RPM

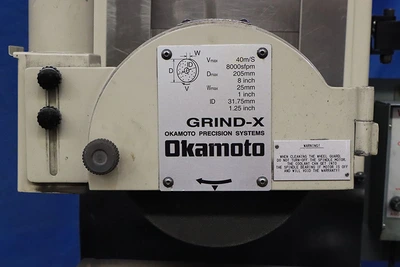

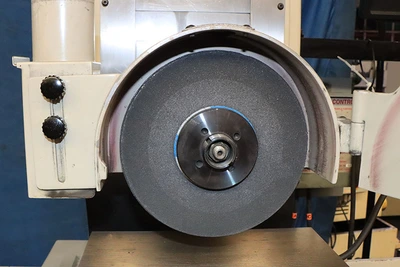

WHEEL SIZE ..................... 8" x 1/2" x 1- 1/4"

APPROX. DIMS. FOR OPERATION .... 64" x 55.3"D x 68"H

APPROX. MACHINE WEIGHT .............. 1,850 LBS.

MACHINE FEATURES:

MEEHANITE CAST IRON, HEAVY DUTY CONSTRUCTION

SMOOTH TABLE MOVEMENT THROUGH RELIABLE BELT DRIVE

TABLE GLIDES ON LINEAR BALL BEARINGS

RECIRCULATING LUBRICATION SYSTEM

2 H.P. DIRECT DRIVE SPINDLE, 3/60/230-460 VOLTS

EQUIPPED WITH:

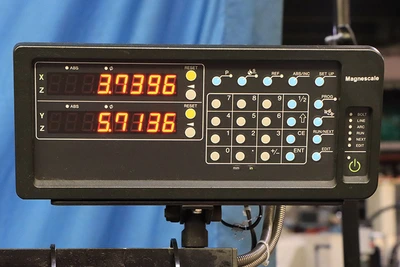

"MAGNESCALSE" 2-AXIS DIGITAL READOUT DISPLAY

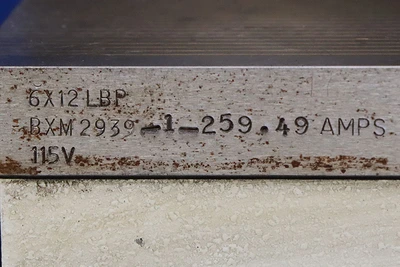

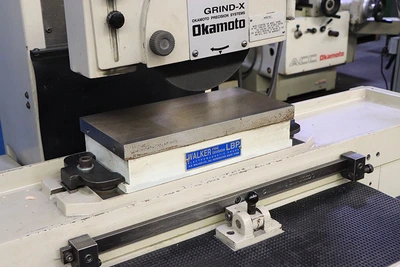

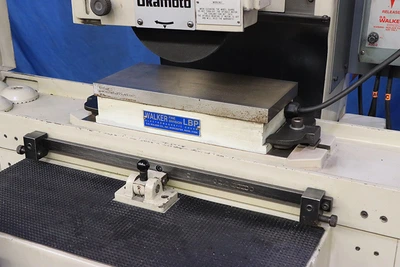

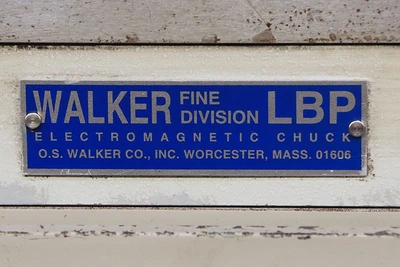

6" X 12" O.S. WALKER "FINE-DIVISION"

 "LBP" ELECTRO-MAGNETIC CHUCK

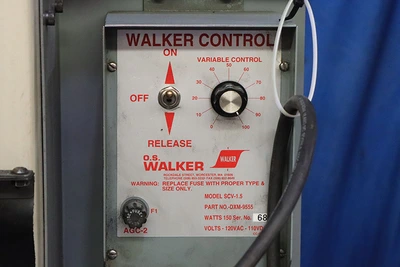

O.S. WALKER VARIABLE HOLD NEUTROFIER/CHUCK CONTROL

SET UP FOR DRY GRINDING, WITH INLET

 ON SIDE OF WHEEL COVER

AUTOMATIC RECIRCULATING LUBRICATION SYSTEM

MACHINE IS WIRED FOR 460 VOLTS, 3 KVA POWER RATING

 Link to video:  https://youtu.be/l3G5CgJi5X4?si=etmoYmqi5uWq808J

** ORIGINAL & BEATIFUL - EXCEPTIONAL CONDITION & APPEARANCE **

  ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
