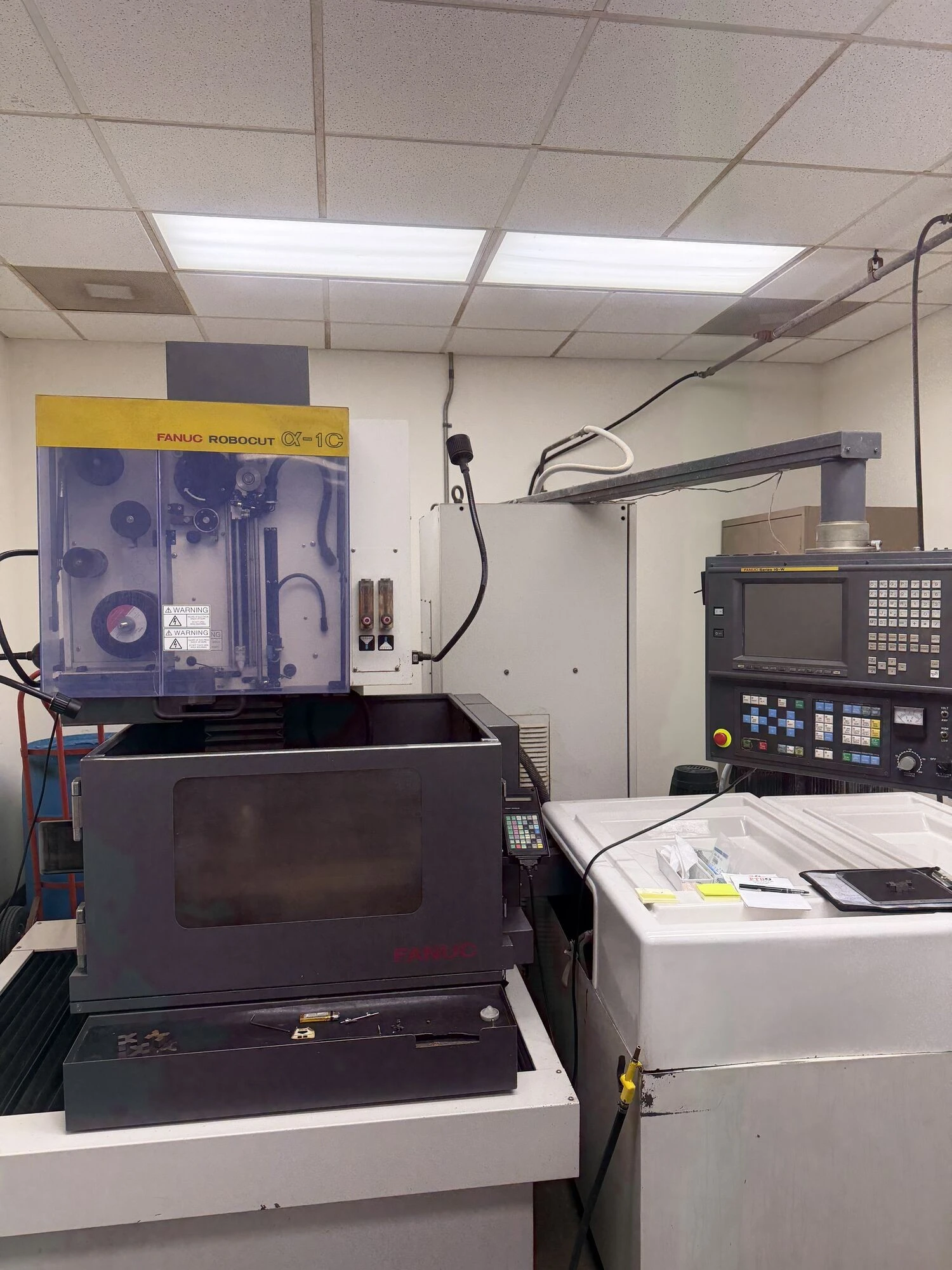

USED 1997 Fanuc ROBOCUT ALPHA 1C, 1997, 5 AXIS, XYUVZ,

        FANUC ROBOCUT ALPHA-1C-S CNC

      "MADE IN JAPAN" 5-AXIS WIRE EDM

Submersible Machining, Auto Wire Threading

MODEL: A04B-0310-B001/U5

S/N: P9741C435

NEW: 1997

Max. Workpiece Dimensions,

 X, Y & Z: ........... 31.10" x 28.74" x 10.8268"

Max. Workpiece Weight: ..... 1,000 Lbs.

X - Axis Travel: ........... 20.47"

Y - Axis Travel: ........... 14.56"

Z - Axis Travel: ........... 11.81"

U & V Axis Strokes: ........ +/- 60 x +/- 60

U, V - Axes Travel: ........ +/- 2.364"

Taper Angle: ............... +/- 15° @ 7.98"

                             +/- 30° @ 3.26"

                             +/- 45° @ 1.93"

Controlled Axes: ........... X, Y, U, V, Z

Least Input Increment: ..... 0.000004"

Least Command Increment: ... 0.000004"

Interpolation: ............. Linear & Circular

Max. Programmable

 Dimension: ................ 999.99999"

Position Command: ... Relative, Absolute & Machine V

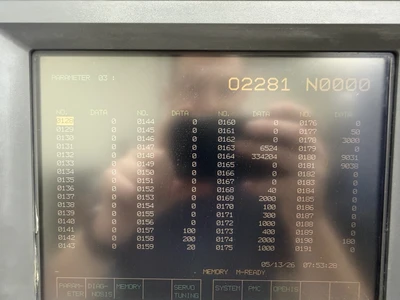

Display Unit: .............. 9.5" Color LCD

Postion Display: ........... 5-Axes

Feedrate Rapid Traverse: ... 35.4 IPM

Feedrate Cutting: .......... 0.0004 - 1 IPM

Wire Dia. Compensation: .... 0 - +/- 9.99999"

Wire Feedrate: ............. 0 - 590 IPM

Wire Tension: .............. 200 - 2500 grams

Max. Wire Spool Weight: .... 13.5 Lbs.

Wire Diameter: ............. 0.004" - 0.012"

Wire Guide

- Upper & Lower Guide: ... Round Diamond Die Guide

Required Floor Space: .... 120" x 122" x 87.5"

Machine Weight, Approx.: ... 9,500 Lbs.

Equipped With:

Fanuc 16WC CNC Control

Wire Reclamation Bin

Full Set of Manuals

"Ebbco" Filtration System

"Remcor" Chiller Unit

** Excellent Condition **

** As Taken from Service **

Special Note:

** Professionally "De-Installed"

   by Methods Machine Tool,

   the Distributor of FANUC EDM's **

FOR MORE INFORMATION: Call Andy at 973-497-7600
