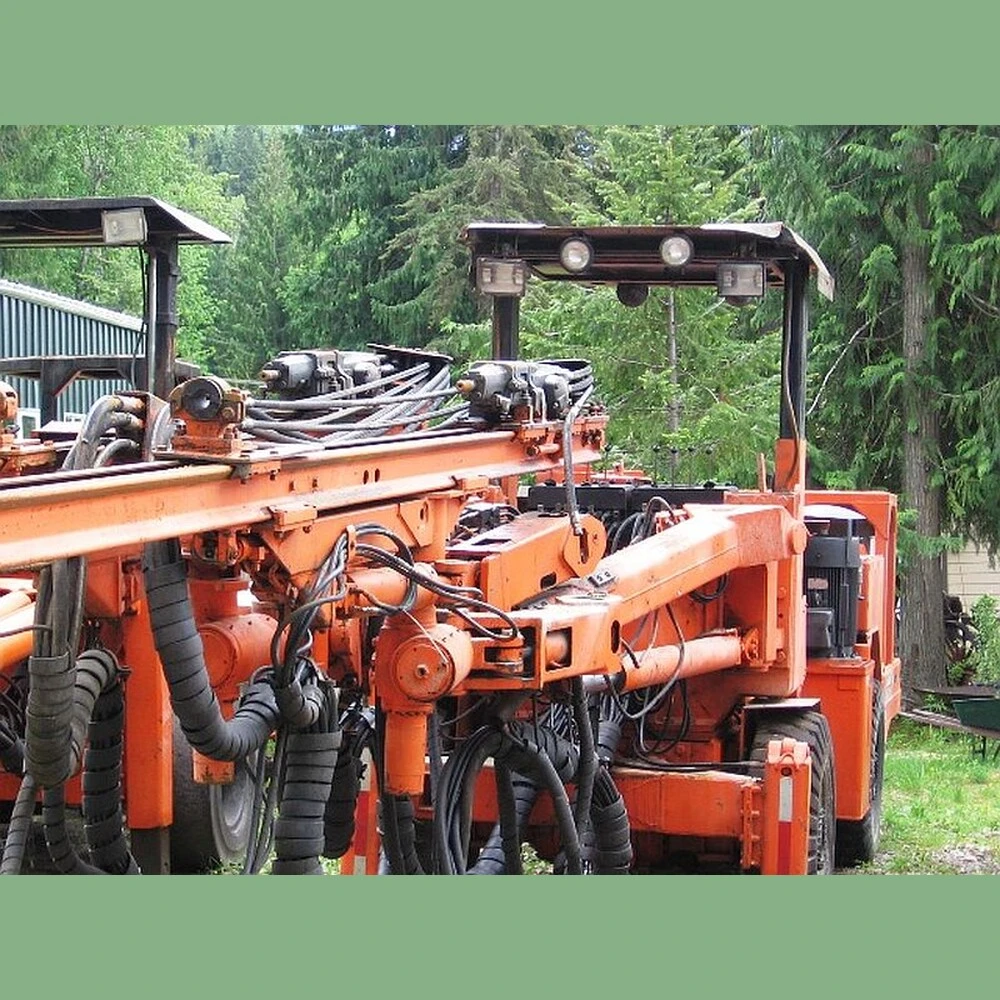

USED 1994 TAMROCK MINIMATIC H-205D

Tamrock Minimatic H-205D 2-Boom Jumbo Drill
Make: Tamrock Minimatic
Model: H-205D
Type: 2-Boom Jumbo Drill
Style: Narrow Body
Condition: Used Condition
Year: 1994 - Rebuilt in 2006, Job Ready 2013
Equipped with:

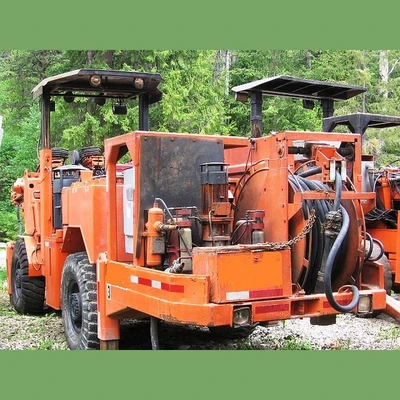

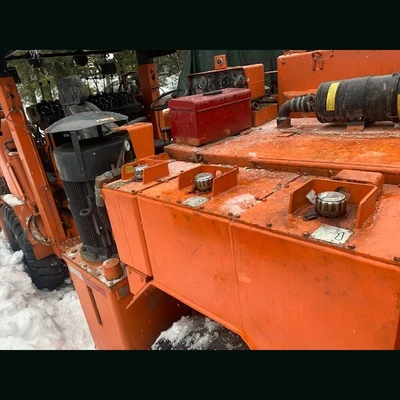

TC-500 Model, 4-Wheel Drive Articulating Carrier

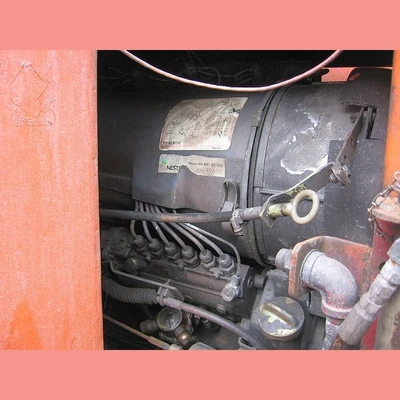

MSHA Ventilation-Approved Deutz Diesel Engine

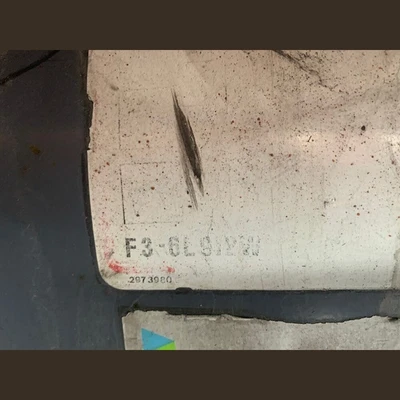

Model: F6L-912W
Power Output: 90HP
PTX Exhaust Purifier with Muffler
Clark Model 18000 Series Transmission
Clark Hurth Model Axles
4-Wheel Fully Enclosed Wet Disc (LCB) Service Brakes
4 Wheel Electronically Controlled Spring-Applied, Hydraulic-Release Park Brakes
12:00 x 20, 18 Ply Heavy-Duty Mine Tires
Approved Hydraulically Controlled ROPS/FOPS Canopy
ANSUL Fire Suppression System
24V Electrical System
(4) Hydraulic Stabilizing Jacks

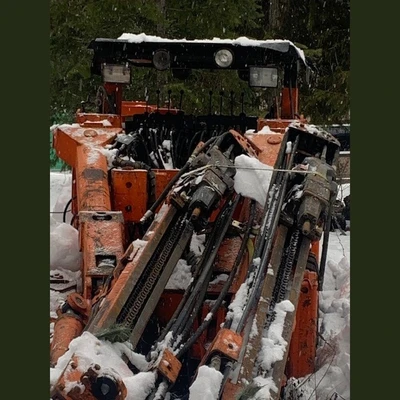

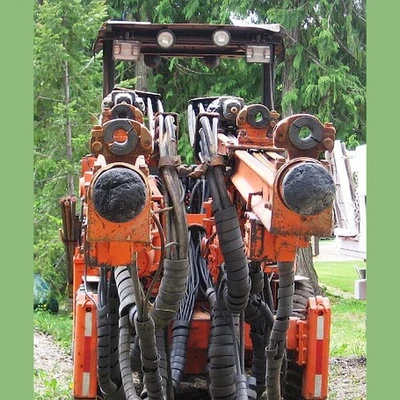

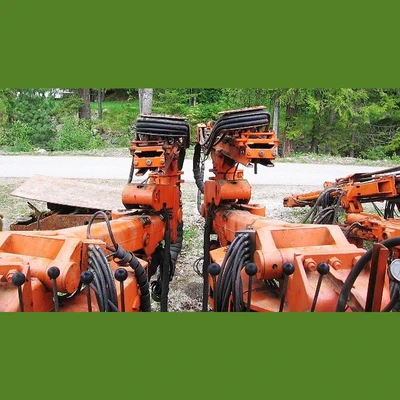

(2) Tamrock ZRU 700 Booms
360° Rotation
Full Auto-Parallelism for Cross-Cut and Bolt Hole Drilling
(2) Tamrock CF 145x12 Feeds
(2) 12ft Steel Slides

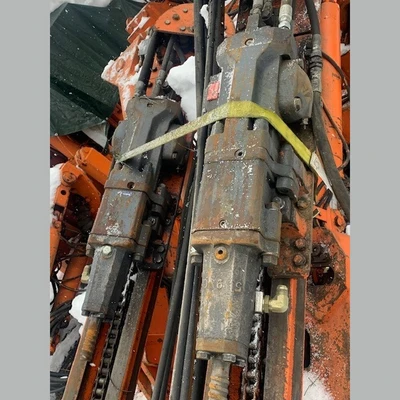

(2) Tamrock HL 500-S Hydraulic Drills

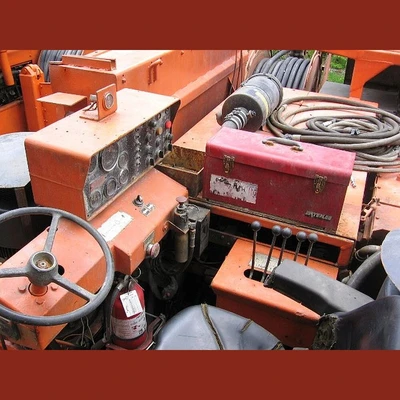

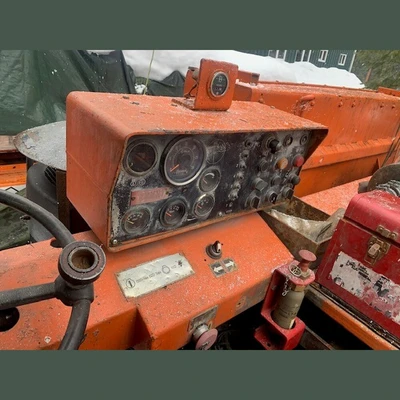

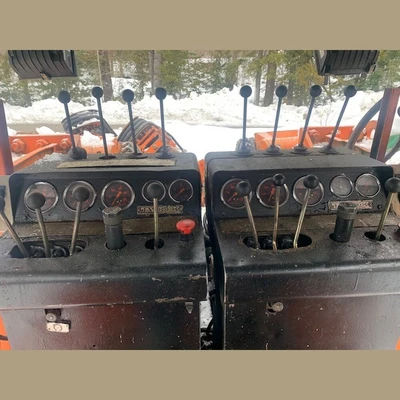

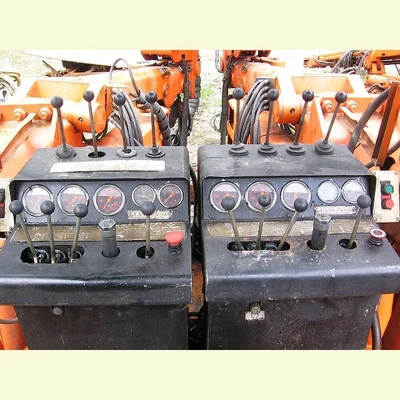

(2) Tamrock THC 500 Control Panels

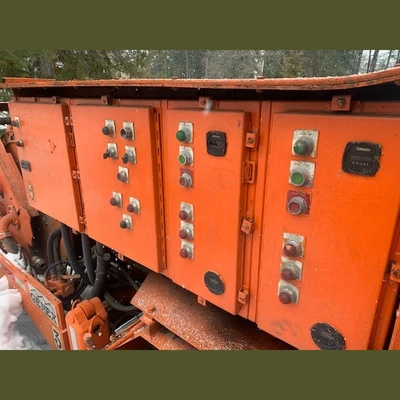

(2) Tamrock 45kW Electric Hydraulic Power Packs
545HP
600 Volt
3-Phase, 60Hz.

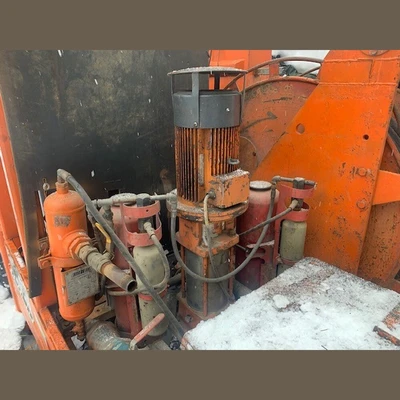

(1) WBP 2, 4 kW Water Booster Pump
500W, 220V Lighting Package

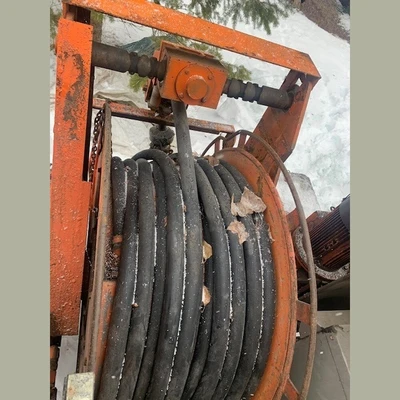

AK2 Auto Retracting and Feed Cable Reel
2000V Rubber-Insulated Approved and Grounded Trailing Cable
Quick Connect Plug
Unit was Well Maintained and Repaired as Necessary
Parked in Excellent Operating, Mechanical and Cosmetic Condition
Reported to be Work-Ready
TC-500 Model, 4-Wheel Drive Articulating Carrier
MSHA Ventilation-Approved Deutz Diesel Engine
Model: F6L-912W
Power Output: 90HP
Model: F6L-912W
Power Output: 90HP
PTX Exhaust Purifier with Muffler
Clark Model 18000 Series Transmission
Clark Hurth Model Axles
4-Wheel Fully Enclosed Wet Disc (LCB) Service Brakes
4 Wheel Electronically Controlled Spring-Applied, Hydraulic-Release Park Brakes
12:00 x 20, 18 Ply Heavy-Duty Mine Tires
Approved Hydraulically Controlled ROPS/FOPS Canopy
ANSUL Fire Suppression System
24V Electrical System
(4) Hydraulic Stabilizing Jacks
(2) Tamrock ZRU 700 Booms
360° Rotation
Full Auto-Parallelism for Cross-Cut and Bolt Hole Drilling
360° Rotation
Full Auto-Parallelism for Cross-Cut and Bolt Hole Drilling
(2) Tamrock CF 145x12 Feeds
(2) 12ft Steel Slides
(2) Tamrock HL 500-S Hydraulic Drills
(2) Tamrock THC 500 Control Panels
(2) Tamrock 45kW Electric Hydraulic Power Packs
545HP
600 Volt
3-Phase, 60Hz.
545HP
600 Volt
3-Phase, 60Hz.
(1) WBP 2, 4 kW Water Booster Pump
500W, 220V Lighting Package
AK2 Auto Retracting and Feed Cable Reel
2000V Rubber-Insulated Approved and Grounded Trailing Cable
Quick Connect Plug
Quick Connect Plug
Unit was Well Maintained and Repaired as Necessary
Parked in Excellent Operating, Mechanical and Cosmetic Condition
Parked in Excellent Operating, Mechanical and Cosmetic Condition
Reported to be Work-Ready
Shipping Information:
Dimensions (L x W x H):
40ft 5in x 6ft 5in x 7ft 7in (Canopy Down) Or 10ft 5in (Canopy Raised)
12.3m x 1.96m x 2.31m (Canopy Down) or 3.18m (Canopy Raised)
Weight:
40,000 lbs. / 18,144 kg.
Dimensions (L x W x H):
40ft 5in x 6ft 5in x 7ft 7in (Canopy Down) Or 10ft 5in (Canopy Raised)
12.3m x 1.96m x 2.31m (Canopy Down) or 3.18m (Canopy Raised)
40ft 5in x 6ft 5in x 7ft 7in (Canopy Down) Or 10ft 5in (Canopy Raised)
12.3m x 1.96m x 2.31m (Canopy Down) or 3.18m (Canopy Raised)
Weight:
40,000 lbs. / 18,144 kg.
40,000 lbs. / 18,144 kg.
Please contact us for more information.
Location: Western Canada
